Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Copper,PE |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
26-22 |
22-16 |
16-1 4 |
12-10 |
|
Spec (JIS AWG) |
0.5 |
1.25 |
2 |
5.5 |
|
Spec (DIN AWG) |
0.5 |
1 |
2.5 |
4.0-6.0 |
|
Spec (GB mm2) |
0.1-0.5 |
0.5-1.5 |
2.5 |
6 |
|
Max Current |
9 |
19 |
27 |
48 |
| Operating Voltage | 600V | |||
| Temperature Withstand | 150℃ | |||
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||
| USA | d2 | L | |||||||||
| A.W.G. 26-22 | KFBHL10 | 26-22 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT0.5 | BHT0.5 | 0.059 | 1.5 | 1.299 | 33.0 | Yellow | OPT SN-02C | 1000 | |
| A.W.G. 22-16 | KFBHL20 | 22-16 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT1.25 | BHT1.25 | 0.079 | 2.0 | 1.339 | 34.0 | Red | IZUMI 3# | 1000 | |

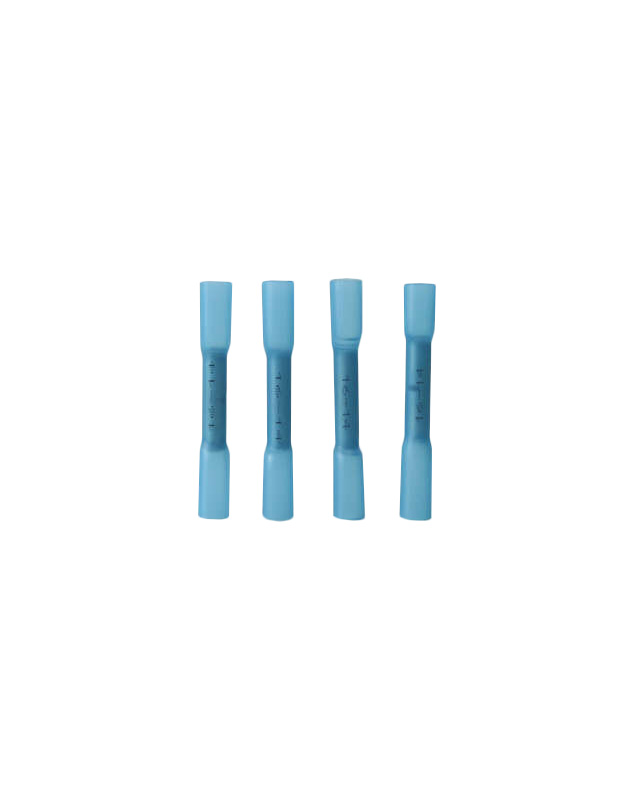

| A.W.G. 16-14 | KFBHL30 | 16-14 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT2 | BHT2 | 0.098 | 2.5 | 1.339 | 34.0 | Blue | IZUMI 4# | 1000 | |

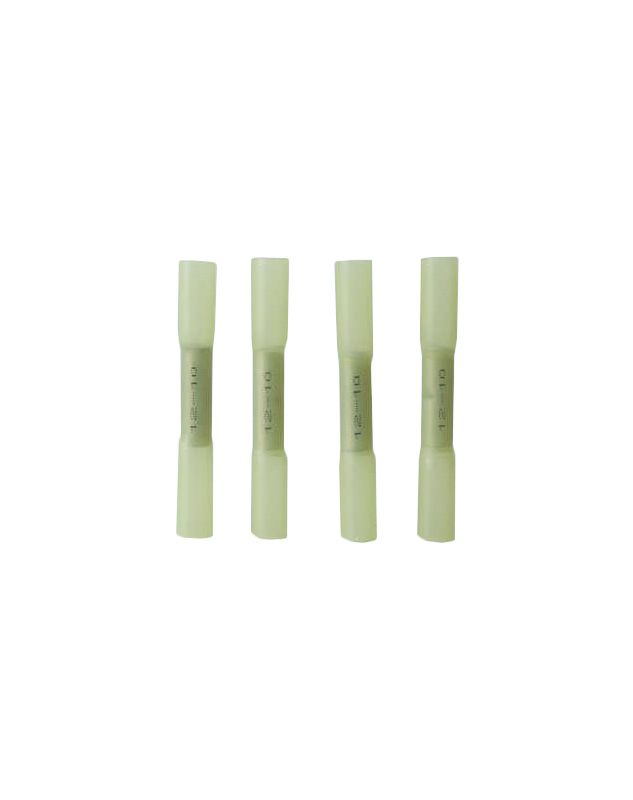

| A.W.G. 12-10 | KFBHL40 | 12-10 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT5.5 | BHT5.5 | 0.157 | 4.0 | 1.575 | 40.0 | Yellow | IZUMI 5# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |
| Meric | d2 | L | |||||||
| 0.2~0.5mm² | KFBHL10 | 26-22 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT0.5 | BHT0.5 | 1.5 | 33.0 | Yellow | OPT SN-02C | 1000 | |
| 0.5~1.5mm² | KFBHL20 | 22-16 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT1.25 | BHT1.25 | 2.0 | 34.0 | Red | IZUMI 3# | 1000 | |
| 1.5~2.5mm² | KFBHL30 | 16-14 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT2 | BHT2 | 2.5 | 34.0 | Blue | IZUMI 4# | 1000 | |
| 4~6mm² | KFBHL40 | 12-10 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT5.5 | BHT5.5 | 4.0 | 40.0 | Yellow | IZUMI 5# | 500 | |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||
| USA | d2 | L | |||||||||
| A.W.G. 26-22 | KFBHL10 | 26-22 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT0.5 | BHT0.5 | 0.059 | 1.5 | 1.299 | 33.0 | Yellow | OPT SN-02C | 1000 | |
| A.W.G. 22-16 | KFBHL20 | 22-16 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT1.25 | BHT1.25 | 0.079 | 2.0 | 1.339 | 34.0 | Red | IZUMI 3# | 1000 | |
| A.W.G. 16-14 | KFBHL30 | 16-14 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT2 | BHT2 | 0.098 | 2.5 | 1.339 | 34.0 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 12-10 | KFBHL40 | 12-10 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT5.5 | BHT5.5 | 0.157 | 4.0 | 1.575 | 40.0 | Yellow | IZUMI 5# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |
| Meric | d2 | L | |||||||
| 0.2~0.5mm² | KFBHL10 | 26-22 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT0.5 | BHT0.5 | 1.5 | 33.0 | Yellow | OPT SN-02C | 1000 | |
| 0.5~1.5mm² | KFBHL20 | 22-16 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT1.25 | BHT1.25 | 2.0 | 34.0 | Red | IZUMI 3# | 1000 | |
| 1.5~2.5mm² | KFBHL30 | 16-14 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT2 | BHT2 | 2.5 | 34.0 | Blue | IZUMI 4# | 1000 | |
| 4~6mm² | KFBHL40 | 12-10 AWG Heat Shrink-Insulated Butt Splice Connectors (TL) BHT5.5 | BHT5.5 | 4.0 | 40.0 | Yellow | IZUMI 5# | 500 | |
