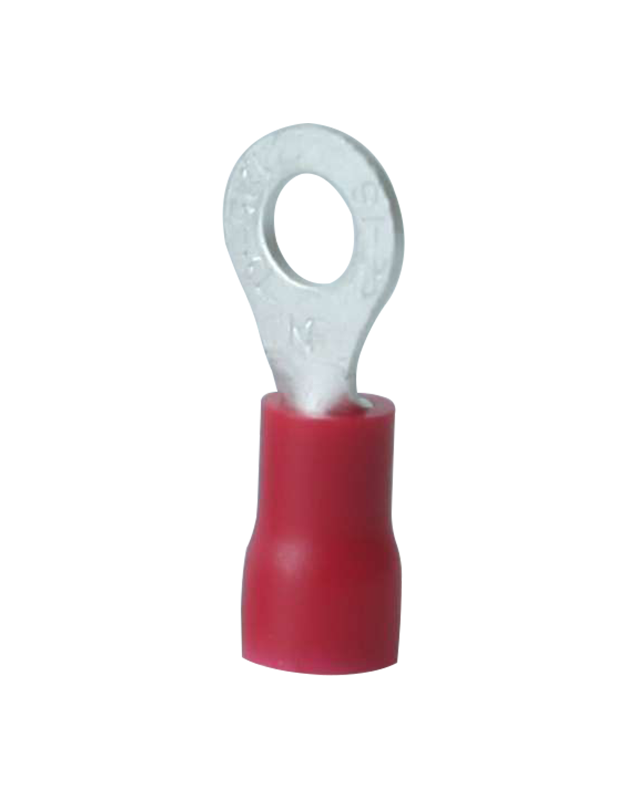

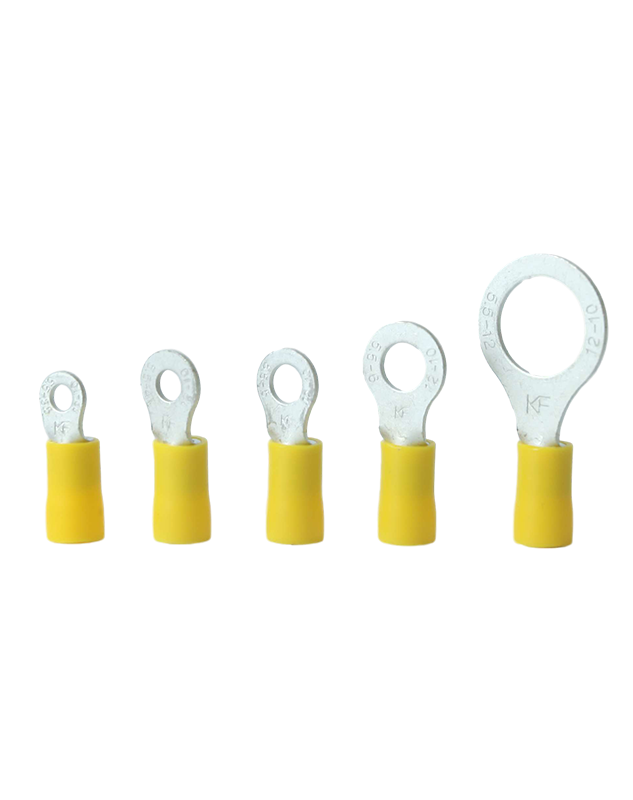

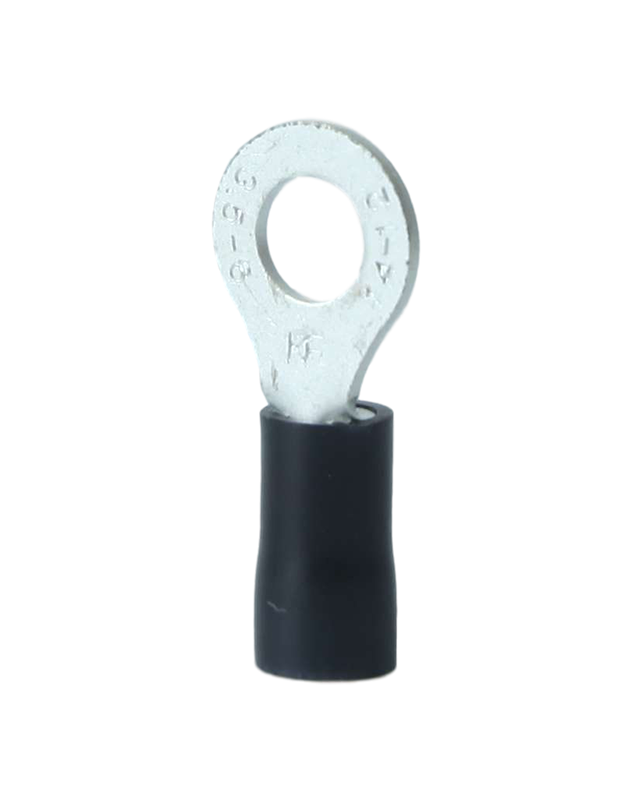

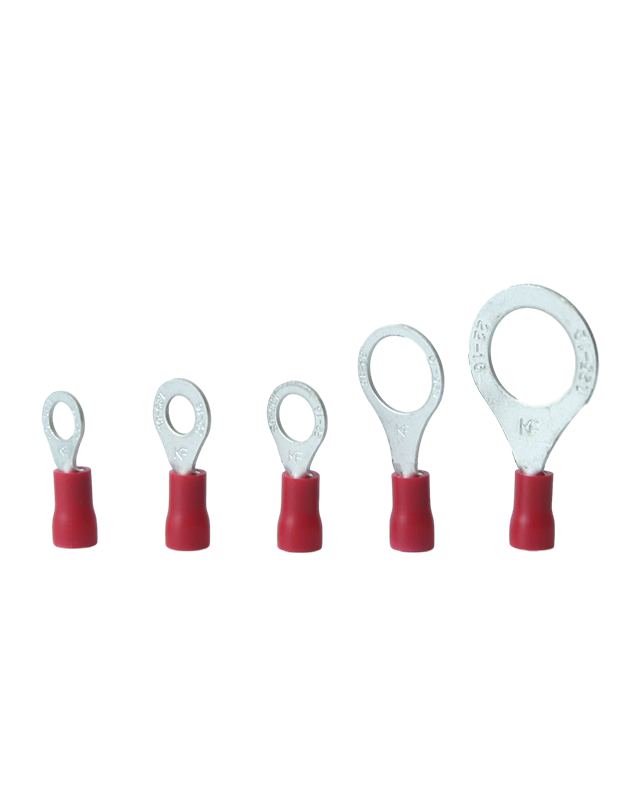

Vinyl-Insulated Single Crimp Ring Terminals

Vinyl-Insulated Single Crimp Ring Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





2+
Views: 1,005

Product Details

Spec (American AWG)

22-16

16-1 4

14-12

12-10

8

6

4

2

Spec (JIS AWG)

1.25

2

3.5

5.5

8

14

22

38

Spec (DIN AWG)

1

2.5



4.0-6.0

10

16

25

35

Spec (GB mm2)

0.5-1.5

2.5

4

6

10

16

25

35

Max Current

19

27

37

48

62

88

115

160
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B F L H D T
A.W.G. 22-16 KFSV110 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3 RV1.25-3 #4 0.126 0.217 0.197 0.689 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV111 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5S RVS1.25-3.5 #6 0.146 0.217 0.197 0.689 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV112 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5M RVM1.25-3.5 #6 0.146 0.256 0.236 0.768 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV113 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4S RVS1.25-4 #8 0.169 0.256 0.236 0.768 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV114 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4L RVL1.25-4 #8 0.169 0.315 0.276 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV115 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5 RV1.25-5 #10 0.209 0.315 0.276 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV116 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5L RVL1.25-5 #10 0.209 0.394 0.315 0.906 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV117 I22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6S RVS1.25-6 1/4" 0.256 0.394 0.315 0.906 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV118 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6 RV1.25-6 1/4" 0.256 0.453 0.433 1.063 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV119 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-8 RV1.25-8 5/16" 0.335 0.453 0.433 1.063 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV11A 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-10 RV1.25-10 3/8" 0.413 0.531 0.551 1.201 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV11B 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-12 RV1.25-12 1/2" 0.512 0.748 0.551 1.398 0.394 0.177 0.030  Red IZUMI 3# 500
A.W.G. 16-14 KFSV120 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3 RV2-3 #4 0.126 0.256 0.177 0.709 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV121 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5S RVS2-3.5 #6 0.146 0.256 0.177 0.709 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV122 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5M RVM2-3.5 #6 0.146 0.256 0.236 0.768 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV123 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4S RVS2-4 #8 0.169 0.256 0.236 0.768 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV124 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4L RVL2-4 #8 0.169 0.335 0.315 0.866 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV125 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5S RVS2-5 #10 0.209 0.335 0.315 0.866 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV126 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5L RVL2-5 #10 0.209 0.374 0.295 0.866 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV127 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-6 RV2-6 1/4" 0.256 0.472 0.433 1.063 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV128 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-8 RV2-8 5/16" 0.335 0.472 0.433 1.063 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV129 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-10 RV2-10 3/8" 0.413 0.531 0.551 1.201 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV12A 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-12 RV2-12 1/2" 0.512 0.748 0.63 1.398 0.394 0.197 0.031 Blue IZUMI 4# 500
A.W.G. 14-12 KFSV130 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-4 RV3.5-4 #8 0.169 0.315 0.315 0.984 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV131 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5S RVS3.5-5 #10 0.209 0.315 0.315 0.984 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV132 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5L RVL3.5-5 #10 0.209 0.472 0.374 1.122 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV133 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-6 RV3.5-6 1/4" 0.256 0.472 0.374 1.122 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV134 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-8 RV3.5-8 5/16" 0.335 0.591 0.531 1.339 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV135 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-10 RV3.5-10 3/8" 0.413 0.591 0.531 1.339 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV136 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-12 RV3.5-12 1/2" 0.512 0.787 0.61 1.516 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 12-10 KFSV140 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-3.5 RV5.5-3.5 #6 0.146 0.276 0.236 0.886 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV141 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4S RVS5.5-4 #8 0.169 0.276 0.236 0.886 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV142 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4L RVL5.5-4 #8 0.169 0.374 0.315 1.024 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV143 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-5 RV5.5-5 #10 0.209 0.374 0.315 1.024 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV144 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-6 RV5.5-6 1/4" 0.256 0.472 0.413 1.161 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSV145 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-8 RV5.5-8 5/16" 0.335 0.591 0.531 1.331 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSV146 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-10 RV5.5-10 3/8" 0.413 0.591 0.531 1.331 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSV147 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-12 RV5.5-12 1/2" 0.512 0.748 0.63 1.516 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 8 KFSV150 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-4 RV8-4 #8 0.169 0.346 0.413 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV151 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5S RVS8-5 #10 0.209 0.346 0.413 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV152 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5M RVM8-5 #10 0.209 0.472 0.354 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV153 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5L RVL8-5 #10 0.209 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV154 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6S RVS8-6 1/4" 0.256 0.472 0.354 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV155 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6L RVL8-6 ? 0.266 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 8 KFSV156 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-8 RV8-8 5/16" 0.335 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 8 KFSV157 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-10 RV8-10 3/8" 0.413 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 8 KFSV158 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-12 RV8-12 1/2" 0.512 0.866 0.591 1.614 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 6 KFSV160 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-4 RV14-4 #8 0.169 0.472 0.531 1.555 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV161 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-5 RV14-5 #10 0.209 0.472 0.531 1.555 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV162 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6S RVS14-6 1/4" 0.256 0.472 0.531 1.555 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV163 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6L RVL14-6 1/4" 0.256 0.63 0.551 1.673 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV164 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-8 RV14-8 5/16" 0.335 0.63 0.551 1.673 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV165 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-10 RV14-10 3/8" 0.413 0.63 0.551 1.673 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV166 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-12 RV14-12 1/2" 0.512 0.866 0.768 2.008 0.807 0.394 0.055 Blue OPT TP-80 200
A.W.G. 6 KFSV167 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-16 RV14-16 5/8" 0.669 1.181 1.004 2.402 0.807 0.394 0.055 Blue OPT TP-80 200
A.W.G. 4 KFSV170 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5S RVS22-5 #10 0.209 0.472 0.571 1.732 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV171 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5L RVL22-5 #10 0.209 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV172 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6S RVS22-6 1/4" 0.256 0.472 0.571 1.732 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV173 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6L RVL22-6 1/4" 0.256 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV174 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-8 RV22-8 5/16" 0.335 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV175 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-10 RV22-10 3/8" 0.413 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV176 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-12 RV22-12 1/2" 0.512 0.866 0.768 2.126 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV177 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-14 RV22-14 9/16" 0.591 1.181 0.984 2.5 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV178 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-16 RV22-16 5/8" 0.669 1.181 0.984 2.5 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 2 KFSV180 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-5 RV38-5 #10 0.209 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV181 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-6 RV38-6 1/4" 0.256 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV182 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8S RVS38-8 5/16" 0.335 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV183 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8L RVL38-8 5/16" 0.335 0.866 0.689 2.165 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV184 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10S RVS38-10 3/8" 0.413 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV185 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10L RVL38-10 3/8" 0.413 0.866 0.689 2.165 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV186 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-12 RV38-12 1/2" 0.512 0.866 0.689 2.165 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV187 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-14 RV38-14 9/16" 0.591 1.181 0.945 2.559 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV188 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-16 RV38-16 5/8" 0.669 1.181 0.945 2.559 1.043 0.571 0.071 Red OPT TP-80 50
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B F L H D T
0.5~1.5mm² KFSV110 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3 RV1.25-3 3 3.2 5.5 5.0 17.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV111 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5S RVS1.25-3.5 3.5 3.7 5.5 5.0 17.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV112 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5M RVM1.25-3.5 3.5 3.7 6.5 6.0 19.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV113 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4S RVS1.25-4 4 4.3 6.5 6.0 19.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV114 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4L RVL1.25-4 4 4.3 8.0 7.0 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV115 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5 RV1.25-5 5 5.3 8.0 7.0 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV116 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5L RVL1.25-5 5 5.3 10.0 8.0 23.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV117 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6S RVS1.25-6 6 6.5 10.0 8.0 23.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV118 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6 RV1.25-6 6 6.5 11.5 11.0 27.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV119 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-8 RV1.25-8 8 8.5 11.5 11.0 27.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV11A 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-10 RV1.25-10 10 10.5 13.5 14.0 30.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV11B 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-12 RV1.25-12 12 13.0 19.0 14.0 35.5 10.0 4.5 0.75 Red IZUMI 3# 500
1.5~2.5mm² KFSV120 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3 RV2-3 3 3.2 6.5 4.5 18.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV121 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5S RVS2-3.5 3.5 3.7 6.5 4.5 18.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV122 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5M RVM2-3.5 3.5 3.7 6.5 6.0 19.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV123 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4S RVS2-4 4 4.3 6.5 6.0 19.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV124 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4L RVL2-4 4 4.3 8.5 8.0 22.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV125 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5S RVS2-5 5 5.3 8.5 8.0 22.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV126 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5L RVL2-5 5 5.3 9.5 7.5 22.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV127 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-6 RV2-6 6 6.5 12.0 11.0 27.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV128 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-8 RV2-8 8 8.5 12.0 11.0 27.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV129 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-10 RV2-10 10 10.5 13.5 14.0 30.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV12A 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-12 RV2-12 12 13.0 19.0 16.0 35.5 10.0 5.0 0.8 Blue IZUMI 4# 500
2.5~4.0mm² KFSV130 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-4 RV3.5-4 4 4.3 8.0 8.0 25.0 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV131 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5S RVS3.5-5 5 5.3 8.0 8.0 25.0 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV132 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5L RVL3.5-5 5 5.3 12.0 9.5 28.5 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV133 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-6 RV3.5-6 6 6.5 12.0 9.5 28.5 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV134 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-8 RV3.5-8 8 8.5 15.0 13.5 34.0 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV135 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-10 RV3.5-10 10 10.5 15.0 13.5 34.0 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV136 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-12 RV3.5-12 12 13.0 20.0 15.5 38.5 13.0 6.0 1.0 Black IZUMI 5# 500
4.0~6.0mm² KFSV140 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-3.5 RV5.5-3.5 3.5 3.7 7.0 6.0 22.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV141 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4S RVS5.5-4 4 4.3 7.0 6.0 22.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV142 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4L RVL5.5-4 4 4.3 9.5 8.0 26.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV143 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-5 RV5.5-5 5 5.3 9.5 8.0 26.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV144 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-6 RV5.5-6 6 6.5 12.0 10.5 29.5 13.0 6.5 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSV145 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-8 RV5.5-8 8 8.5 15.0 13.5 33.8 13.0 6.5 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSV146 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-10 RV5.5-10 10 10.5 15.0 13.5 33.8 13.0 6.5 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSV147 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-12 RV5.5-12 12 13.0 19.0 16.0 38.5 13.0 6.5 1.0 Yellow IZUMI 5# 500
8mm² KFSV150 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-4 RV8-4 4 4.3 8.8 10.5 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV151 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5S RVS8-5 5 5.3 8.8 10.5 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV152 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5M RVM8-5 5 5.3 12.0 9.0 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV153 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5L RVL8-5 5 5.3 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV154 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6S RVS8-6 6 6.5 12.0 9.0 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV155 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6L RVL8-6 ? 6.8 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 250
8mm² KFSV156 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-8 RV8-8 8 8.5 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 250
8mm² KFSV157 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-10 RV8-10 10 10.5 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 250
8mm² KFSV158 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-12 RV8-12 12 13.0 22.0 15.0 41.0 15.0 8.0 1.2 Red OPT TP-80 250
14mm² KFSV160 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-4 RV14-4 4 4.3 12.0 13.5 39.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV161 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-5 RV14-5 5 5.3 12.0 13.5 39.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV162 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6S RVS14-6 6 6.5 12.0 13.5 39.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV163 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6L RVL14-6 6 6.5 16.0 14.0 42.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV164 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-8 RV14-8 8 8.5 16.0 14.0 42.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV165 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-10 RV14-10 10 10.5 16.0 14.0 42.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV166 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-12 RV14-12 12 13.0 22.0 19.5 51.0 20.5 10.0 1.4 Blue OPT TP-80 200
14mm² KFSV167 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-16 RV14-16 16 17.0 30.0 25.5 61.0 20.5 10.0 1.4 Blue OPT TP-80 200
22mm² KFSV170 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5S RVS22-5 5 5.3 12.0 14.5 44.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV171 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5L RVL22-5 5 5.3 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV172 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6S RVS22-6 6 6.5 12.0 14.5 44.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV173 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6L RVL22-6 6 6.5 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV174 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-8 RV22-8 8 8.5 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV175 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-10 RV22-10 10 10.5 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV176 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-12 RV22-12 12 13.0 22.0 19.5 54.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV177 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-14 RV22-14 14 15.0 30.0 25.0 63.5 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV178 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-16 RV22-16 16 17.0 30.0 25.0 63.5 23.5 12.5 1.7 Yellow OPT TP-80 100
38mm² KFSV180 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-5 RV38-5 5 5.3 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV181 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-6 RV38-6 6 6.5 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV182 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8S RVS38-8 8 8.5 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV183 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8L RVL38-8 8 8.5 22.0 17.5 55.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV184 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10S RVS38-10 10 10.5 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV185 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10L RVL38-10 10 10.5 22.0 17.5 55.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV186 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-12 RV38-12 12 13.0 22.0 17.5 55.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV187 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-14 RV38-14 14 15.0 30.0 24.0 65.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV188 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-16 RV38-16 16 17.0 30.0 24.0 65.0 26.5 14.5 1.8 Red OPT TP-80 50







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B F L H D T
A.W.G. 22-16 KFSV110 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3 RV1.25-3 #4 0.126 0.217 0.197 0.689 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV111 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5S RVS1.25-3.5 #6 0.146 0.217 0.197 0.689 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV112 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5M RVM1.25-3.5 #6 0.146 0.256 0.236 0.768 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV113 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4S RVS1.25-4 #8 0.169 0.256 0.236 0.768 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV114 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4L RVL1.25-4 #8 0.169 0.315 0.276 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV115 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5 RV1.25-5 #10 0.209 0.315 0.276 0.827 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV116 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5L RVL1.25-5 #10 0.209 0.394 0.315 0.906 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV117 I22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6S RVS1.25-6 1/4" 0.256 0.394 0.315 0.906 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV118 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6 RV1.25-6 1/4" 0.256 0.453 0.433 1.063 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV119 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-8 RV1.25-8 5/16" 0.335 0.453 0.433 1.063 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV11A 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-10 RV1.25-10 3/8" 0.413 0.531 0.551 1.201 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV11B 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-12 RV1.25-12 1/2" 0.512 0.748 0.551 1.398 0.394 0.177 0.030  Red IZUMI 3# 500
A.W.G. 16-14 KFSV120 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3 RV2-3 #4 0.126 0.256 0.177 0.709 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV121 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5S RVS2-3.5 #6 0.146 0.256 0.177 0.709 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV122 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5M RVM2-3.5 #6 0.146 0.256 0.236 0.768 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV123 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4S RVS2-4 #8 0.169 0.256 0.236 0.768 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV124 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4L RVL2-4 #8 0.169 0.335 0.315 0.866 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV125 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5S RVS2-5 #10 0.209 0.335 0.315 0.866 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV126 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5L RVL2-5 #10 0.209 0.374 0.295 0.866 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV127 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-6 RV2-6 1/4" 0.256 0.472 0.433 1.063 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV128 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-8 RV2-8 5/16" 0.335 0.472 0.433 1.063 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV129 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-10 RV2-10 3/8" 0.413 0.531 0.551 1.201 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV12A 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-12 RV2-12 1/2" 0.512 0.748 0.63 1.398 0.394 0.197 0.031 Blue IZUMI 4# 500
A.W.G. 14-12 KFSV130 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-4 RV3.5-4 #8 0.169 0.315 0.315 0.984 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV131 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5S RVS3.5-5 #10 0.209 0.315 0.315 0.984 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV132 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5L RVL3.5-5 #10 0.209 0.472 0.374 1.122 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV133 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-6 RV3.5-6 1/4" 0.256 0.472 0.374 1.122 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV134 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-8 RV3.5-8 5/16" 0.335 0.591 0.531 1.339 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV135 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-10 RV3.5-10 3/8" 0.413 0.591 0.531 1.339 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 14-12 KFSV136 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-12 RV3.5-12 1/2" 0.512 0.787 0.61 1.516 0.512 0.236 0.039 Black IZUMI 5# 500
A.W.G. 12-10 KFSV140 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-3.5 RV5.5-3.5 #6 0.146 0.276 0.236 0.886 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV141 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4S RVS5.5-4 #8 0.169 0.276 0.236 0.886 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV142 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4L RVL5.5-4 #8 0.169 0.374 0.315 1.024 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV143 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-5 RV5.5-5 #10 0.209 0.374 0.315 1.024 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV144 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-6 RV5.5-6 1/4" 0.256 0.472 0.413 1.161 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSV145 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-8 RV5.5-8 5/16" 0.335 0.591 0.531 1.331 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSV146 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-10 RV5.5-10 3/8" 0.413 0.591 0.531 1.331 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 12-10 KFSV147 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-12 RV5.5-12 1/2" 0.512 0.748 0.63 1.516 0.512 0.256 0.039 Yellow IZUMI 5# 500
A.W.G. 8 KFSV150 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-4 RV8-4 #8 0.169 0.346 0.413 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV151 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5S RVS8-5 #10 0.209 0.346 0.413 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV152 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5M RVM8-5 #10 0.209 0.472 0.354 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV153 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5L RVL8-5 #10 0.209 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV154 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6S RVS8-6 1/4" 0.256 0.472 0.354 1.181 0.591 0.315 0.047 Red OPT TP-80 500
A.W.G. 8 KFSV155 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6L RVL8-6 ? 0.266 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 8 KFSV156 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-8 RV8-8 5/16" 0.335 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 8 KFSV157 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-10 RV8-10 3/8" 0.413 0.591 0.551 1.437 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 8 KFSV158 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-12 RV8-12 1/2" 0.512 0.866 0.591 1.614 0.591 0.315 0.047 Red OPT TP-80 250
A.W.G. 6 KFSV160 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-4 RV14-4 #8 0.169 0.472 0.531 1.555 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV161 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-5 RV14-5 #10 0.209 0.472 0.531 1.555 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV162 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6S RVS14-6 1/4" 0.256 0.472 0.531 1.555 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV163 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6L RVL14-6 1/4" 0.256 0.63 0.551 1.673 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV164 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-8 RV14-8 5/16" 0.335 0.63 0.551 1.673 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV165 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-10 RV14-10 3/8" 0.413 0.63 0.551 1.673 0.807 0.394 0.055 Blue OPT TP-80 250
A.W.G. 6 KFSV166 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-12 RV14-12 1/2" 0.512 0.866 0.768 2.008 0.807 0.394 0.055 Blue OPT TP-80 200
A.W.G. 6 KFSV167 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-16 RV14-16 5/8" 0.669 1.181 1.004 2.402 0.807 0.394 0.055 Blue OPT TP-80 200
A.W.G. 4 KFSV170 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5S RVS22-5 #10 0.209 0.472 0.571 1.732 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV171 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5L RVL22-5 #10 0.209 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV172 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6S RVS22-6 1/4" 0.256 0.472 0.571 1.732 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV173 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6L RVL22-6 1/4" 0.256 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV174 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-8 RV22-8 5/16" 0.335 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV175 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-10 RV22-10 3/8" 0.413 0.65 0.531 1.772 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV176 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-12 RV22-12 1/2" 0.512 0.866 0.768 2.126 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV177 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-14 RV22-14 9/16" 0.591 1.181 0.984 2.5 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 4 KFSV178 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-16 RV22-16 5/8" 0.669 1.181 0.984 2.5 0.925 0.492 0.067 Yellow OPT TP-80 100
A.W.G. 2 KFSV180 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-5 RV38-5 #10 0.209 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV181 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-6 RV38-6 1/4" 0.256 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV182 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8S RVS38-8 5/16" 0.335 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV183 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8L RVL38-8 5/16" 0.335 0.866 0.689 2.165 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV184 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10S RVS38-10 3/8" 0.413 0.61 0.728 2.067 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV185 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10L RVL38-10 3/8" 0.413 0.866 0.689 2.165 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV186 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-12 RV38-12 1/2" 0.512 0.866 0.689 2.165 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV187 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-14 RV38-14 9/16" 0.591 1.181 0.945 2.559 1.043 0.571 0.071 Red OPT TP-80 50
A.W.G. 2 KFSV188 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-16 RV38-16 5/8" 0.669 1.181 0.945 2.559 1.043 0.571 0.071 Red OPT TP-80 50
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B F L H D T
0.5~1.5mm² KFSV110 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3 RV1.25-3 3 3.2 5.5 5.0 17.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV111 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5S RVS1.25-3.5 3.5 3.7 5.5 5.0 17.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV112 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-3.5M RVM1.25-3.5 3.5 3.7 6.5 6.0 19.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV113 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4S RVS1.25-4 4 4.3 6.5 6.0 19.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV114 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-4L RVL1.25-4 4 4.3 8.0 7.0 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV115 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5 RV1.25-5 5 5.3 8.0 7.0 21.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV116 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-5L RVL1.25-5 5 5.3 10.0 8.0 23.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV117 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6S RVS1.25-6 6 6.5 10.0 8.0 23.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV118 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-6 RV1.25-6 6 6.5 11.5 11.0 27.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV119 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-8 RV1.25-8 8 8.5 11.5 11.0 27.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV11A 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-10 RV1.25-10 10 10.5 13.5 14.0 30.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV11B 22-16 AWG Vinyl-Insulated Single Crimp Ring Terminals 1.25-12 RV1.25-12 12 13.0 19.0 14.0 35.5 10.0 4.5 0.75 Red IZUMI 3# 500
1.5~2.5mm² KFSV120 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3 RV2-3 3 3.2 6.5 4.5 18.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV121 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5S RVS2-3.5 3.5 3.7 6.5 4.5 18.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV122 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-3.5M RVM2-3.5 3.5 3.7 6.5 6.0 19.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV123 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4S RVS2-4 4 4.3 6.5 6.0 19.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV124 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-4L RVL2-4 4 4.3 8.5 8.0 22.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV125 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5S RVS2-5 5 5.3 8.5 8.0 22.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV126 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-5L RVL2-5 5 5.3 9.5 7.5 22.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV127 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-6 RV2-6 6 6.5 12.0 11.0 27.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV128 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-8 RV2-8 8 8.5 12.0 11.0 27.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV129 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-10 RV2-10 10 10.5 13.5 14.0 30.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV12A 16-14 AWG Vinyl-Insulated Single Crimp Ring Terminals 2-12 RV2-12 12 13.0 19.0 16.0 35.5 10.0 5.0 0.8 Blue IZUMI 4# 500
2.5~4.0mm² KFSV130 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-4 RV3.5-4 4 4.3 8.0 8.0 25.0 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV131 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5S RVS3.5-5 5 5.3 8.0 8.0 25.0 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV132 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-5L RVL3.5-5 5 5.3 12.0 9.5 28.5 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV133 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-6 RV3.5-6 6 6.5 12.0 9.5 28.5 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV134 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-8 RV3.5-8 8 8.5 15.0 13.5 34.0 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV135 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-10 RV3.5-10 10 10.5 15.0 13.5 34.0 13.0 6.0 1.0 Black IZUMI 5# 500
2.5~4.0mm² KFSV136 14-12 AWG Vinyl-Insulated Single Crimp Ring Terminals 3.5-12 RV3.5-12 12 13.0 20.0 15.5 38.5 13.0 6.0 1.0 Black IZUMI 5# 500
4.0~6.0mm² KFSV140 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-3.5 RV5.5-3.5 3.5 3.7 7.0 6.0 22.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV141 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4S RVS5.5-4 4 4.3 7.0 6.0 22.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV142 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-4L RVL5.5-4 4 4.3 9.5 8.0 26.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV143 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-5 RV5.5-5 5 5.3 9.5 8.0 26.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV144 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-6 RV5.5-6 6 6.5 12.0 10.5 29.5 13.0 6.5 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSV145 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-8 RV5.5-8 8 8.5 15.0 13.5 33.8 13.0 6.5 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSV146 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-10 RV5.5-10 10 10.5 15.0 13.5 33.8 13.0 6.5 1.0 Yellow IZUMI 5# 500
4.0~6.0mm² KFSV147 12-10 AWG Vinyl-Insulated Single Crimp Ring Terminals 5.5-12 RV5.5-12 12 13.0 19.0 16.0 38.5 13.0 6.5 1.0 Yellow IZUMI 5# 500
8mm² KFSV150 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-4 RV8-4 4 4.3 8.8 10.5 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV151 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5S RVS8-5 5 5.3 8.8 10.5 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV152 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5M RVM8-5 5 5.3 12.0 9.0 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV153 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-5L RVL8-5 5 5.3 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV154 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6S RVS8-6 6 6.5 12.0 9.0 30.0 15.0 8.0 1.2 Red OPT TP-80 500
8mm² KFSV155 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-6L RVL8-6 ? 6.8 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 250
8mm² KFSV156 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-8 RV8-8 8 8.5 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 250
8mm² KFSV157 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-10 RV8-10 10 10.5 15.0 14.0 36.5 15.0 8.0 1.2 Red OPT TP-80 250
8mm² KFSV158 8 AWG Vinyl-Insulated Single Crimp Ring Terminals 8-12 RV8-12 12 13.0 22.0 15.0 41.0 15.0 8.0 1.2 Red OPT TP-80 250
14mm² KFSV160 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-4 RV14-4 4 4.3 12.0 13.5 39.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV161 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-5 RV14-5 5 5.3 12.0 13.5 39.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV162 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6S RVS14-6 6 6.5 12.0 13.5 39.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV163 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-6L RVL14-6 6 6.5 16.0 14.0 42.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV164 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-8 RV14-8 8 8.5 16.0 14.0 42.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV165 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-10 RV14-10 10 10.5 16.0 14.0 42.5 20.5 10.0 1.4 Blue OPT TP-80 250
14mm² KFSV166 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-12 RV14-12 12 13.0 22.0 19.5 51.0 20.5 10.0 1.4 Blue OPT TP-80 200
14mm² KFSV167 14 AWG Vinyl-Insulated Single Crimp Ring Terminals 14-16 RV14-16 16 17.0 30.0 25.5 61.0 20.5 10.0 1.4 Blue OPT TP-80 200
22mm² KFSV170 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5S RVS22-5 5 5.3 12.0 14.5 44.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV171 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-5L RVL22-5 5 5.3 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV172 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6S RVS22-6 6 6.5 12.0 14.5 44.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV173 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-6L RVL22-6 6 6.5 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV174 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-8 RV22-8 8 8.5 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV175 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-10 RV22-10 10 10.5 16.5 13.5 45.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV176 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-12 RV22-12 12 13.0 22.0 19.5 54.0 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV177 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-14 RV22-14 14 15.0 30.0 25.0 63.5 23.5 12.5 1.7 Yellow OPT TP-80 100
22mm² KFSV178 4 AWG Vinyl-Insulated Single Crimp Ring Terminals 22-16 RV22-16 16 17.0 30.0 25.0 63.5 23.5 12.5 1.7 Yellow OPT TP-80 100
38mm² KFSV180 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-5 RV38-5 5 5.3 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV181 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-6 RV38-6 6 6.5 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV182 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8S RVS38-8 8 8.5 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV183 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-8L RVL38-8 8 8.5 22.0 17.5 55.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV184 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10S RVS38-10 10 10.5 15.5 18.5 52.5 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV185 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-10L RVL38-10 10 10.5 22.0 17.5 55.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV186 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-12 RV38-12 12 13.0 22.0 17.5 55.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV187 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-14 RV38-14 14 15.0 30.0 24.0 65.0 26.5 14.5 1.8 Red OPT TP-80 50
38mm² KFSV188 2 AWG Vinyl-Insulated Single Crimp Ring Terminals 38-16 RV38-16 16 17.0 30.0 24.0 65.0 26.5 14.5 1.8 Red OPT TP-80 50
  • CN

    KF China Factory

    AS

    KF Asia Office

    USA

    KF America Office

    EUR

    KF Europe Office
