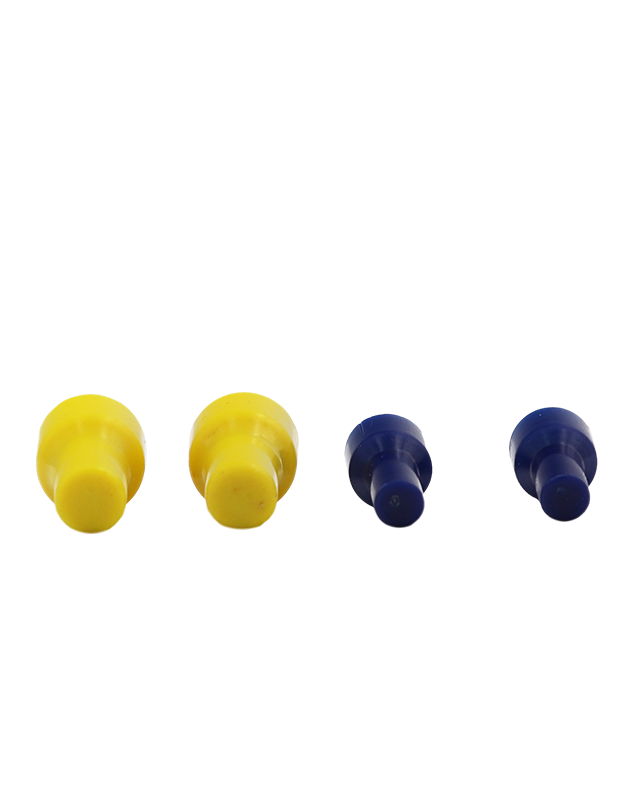

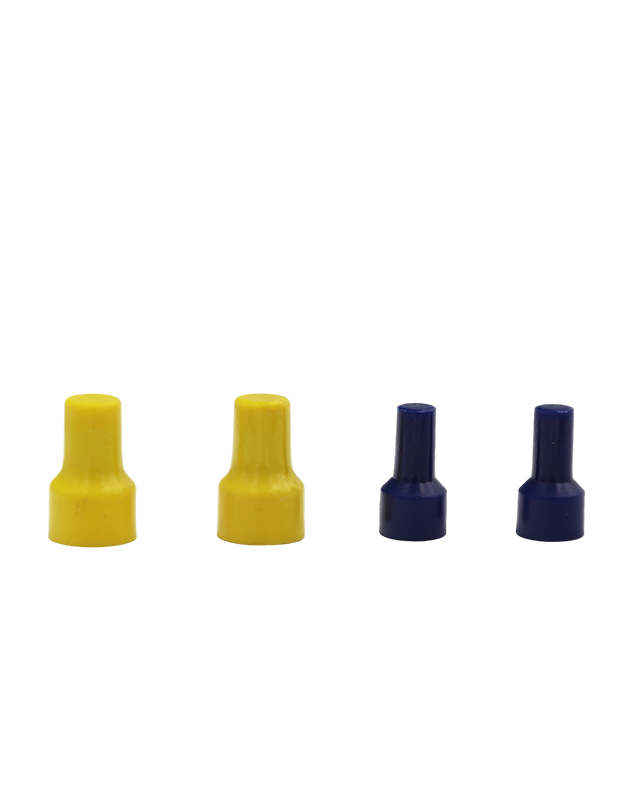

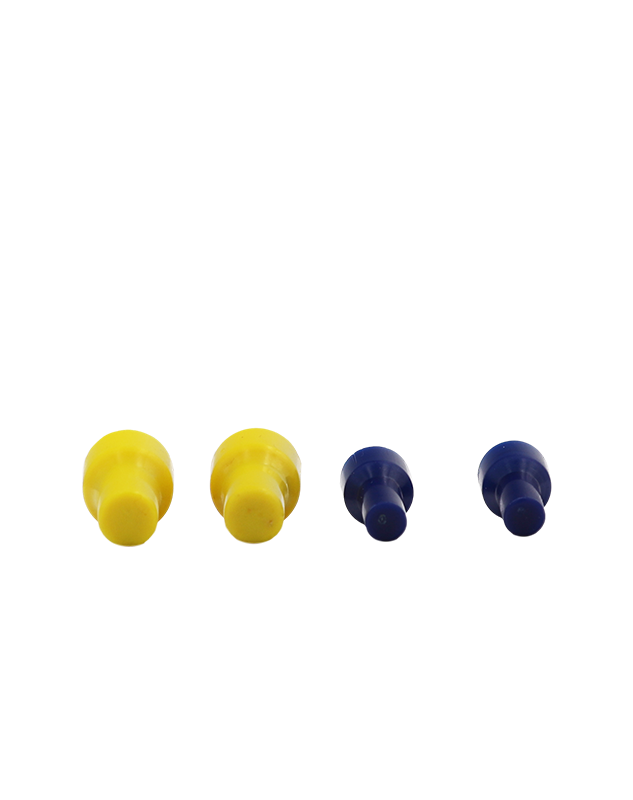

Closed End Connectors(Colors)

Brand	KF
Finish/Coating	Tinned
Base Materials	Brass,Nylon
Insulation Material	N/A
Brazed	Seam
Wire/Cable Type	Regular Wire
Color Code	Standard
MOQ	1000Pcs/item
Payment Terms	Based on orders
Delivery	FOB/CIF/DDP





How to Select a CEF Closed-End Connector

KF colored CEF closed-end connectors are available in three conductor-range groups. Use the existing model table above to compare the KF SKU, CEF model, wire range, dimensions, color, recommended tool and pack quantity.

1. Confirm the conductor range. Select CEF1.25 for 22–16 AWG / 0.5–1.5 mm², CEF2 for 16–14 AWG / 1.5–2.5 mm², or CEF5.5 for 12–10 AWG / 4–6 mm².
2. Check the connector dimensions. Confirm that the finished connector fits the available enclosure and wire-routing space.
3. Confirm the crimping system. The current product data lists IZUMI 7A for these models. Confirm the approved tool, die and crimp instruction before production use.
4. Verify the application requirements. Request the current material, electrical, temperature and compliance documentation for the exact model and target market.

Crimping and Application Notes

Use the approved strip length and avoid nicked, cut or missing conductor strands. Insert the conductor fully, position the connector in the approved die and complete the crimp according to the applicable work instruction. Inspect the finished connection and perform the mechanical and electrical validation required by the equipment design.

Typical applications may include appliance wiring, control panels, lighting and power-supply assemblies, industrial machinery and wire harnesses. The equipment designer or qualified engineer must confirm the final connector, conductor, crimp process, enclosure and regulatory requirements.

Frequently Asked Questions

What wire sizes are available in the colored CEF series?

The current product data lists CEF1.25 for 22–16 AWG / 0.5–1.5 mm², CEF2 for 16–14 AWG / 1.5–2.5 mm² and CEF5.5 for 12–10 AWG / 4–6 mm².

What do the red, blue and yellow colors indicate?

They identify the three model and conductor-range groups shown in the product table. Always confirm the KF SKU or CEF model instead of selecting by color alone.

Which crimp tool should I use?

The current product data lists IZUMI 7A for the three colored CEF models. Confirm the approved tool, die and crimp instruction for the exact connector and conductor before production use.

Are the same electrical and temperature ratings suitable for every application?

No. Final suitability depends on the exact connector, conductor, crimp, enclosure, operating conditions and applicable equipment requirements. Ask KF for the current model-level documentation for your application and destination market.

Can I request samples?

Yes. Include the KF SKU or CEF model, wire size, required quantity, application and destination country so the KF team can confirm sample availability and applicable documentation.

Request a Quote or Samples

Send the CEF model or KF SKU, conductor size, quantity, application and destination market. KF will confirm the current specification, packaging, documentation and availability.
