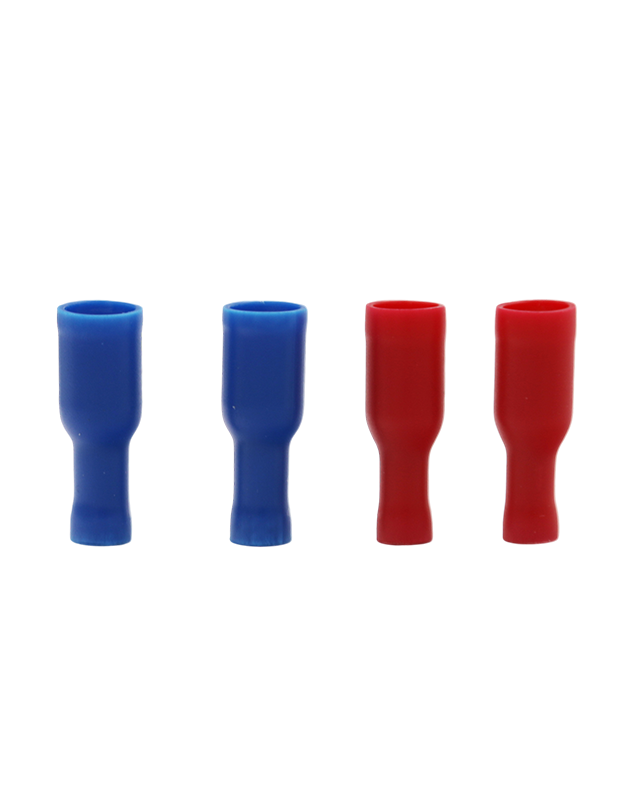

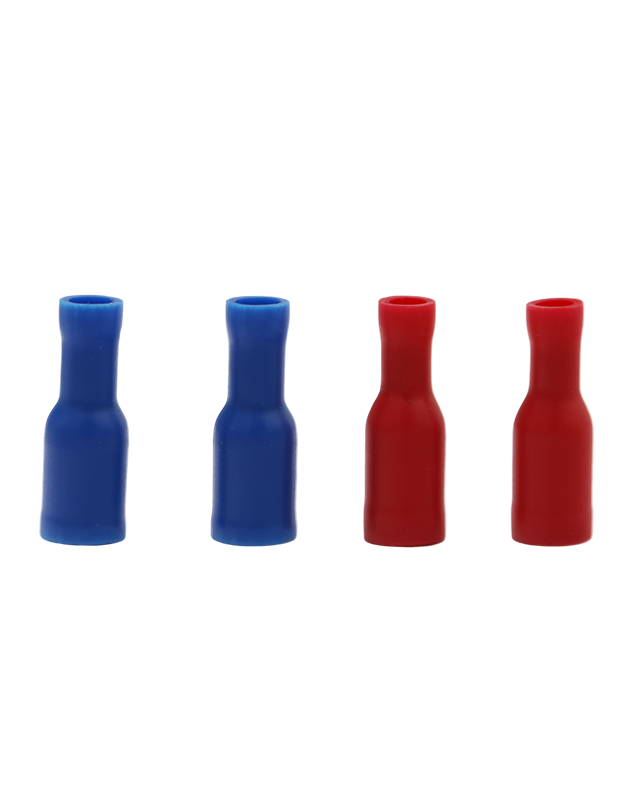

Vinyl-Insulated Bullet Female Quick Disconnectors

Vinyl-Insulated Bullet Female Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 817

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 10 15 24
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B H d F L Thickness
A.W.G. 22-16 KFSVB110 22-16 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 1.25-156 FRD 1.25-156   0.157 0.354 0.079 0.354 0.866 0.016 Red IZUMI  3# 1000
A.W.G. 16~14 KFSVB120 16-14 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 2-156 FRD 2-156   0.157 0.394 0.098 0.354 0.906 0.016 Blue IZUMI  4# 500
A.W.G. 16~14 KFSVB121 16-14 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 2-195 FRD 2-195   0.197 0.335 0.098 0.354 0.886 0.016 Blue IZUMI  4# 500
A.W.G. 12~10 KFSVB130 12-10 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 5.5-195 FRD 5.5-195   0.197 0.413 0.138 0.354 0.965 0.016 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B H d F L Thickness
0.5~1.5mm² KFQVB110 22-16 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 1.25-156 FRD 1.25-156   4.0  9.0  2.0  9.0  22.0  0.40  Red IZUMI  3# 1000
1.5~2.5mm² KFQVB120 16-14 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 2-156 FRD 2-156   4.0  10.0  2.5  9.0  23.0  0.40  Blue IZUMI  4# 500
1.5~2.5mm² KFQVB121 16-14 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 2-195 FRD 2-195   5.0  8.5  2.5  9.0  22.5  0.40  Blue IZUMI  4# 500
4~6mm² KFQVB130 12-10 AWG Vinyl-Insulated Bullet Female Quick Disconnectors FRD 5.5-195 FRD 5.5-195   5.0  10.5  3.5  9.0  24.5  0.40  Yellow IZUMI  5# 500
