Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Copper,Nylon |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
26-22 |
22-16 |
16-1 4 |
12-10 |
|
Spec (JIS AWG) |
0.5 |
1.25 |
2 |
5.5 |
|
Spec (DIN AWG) |
0.5 |
1 |
2.5 |
4.0-6.0 |
|
Spec (GB mm2) |
0.1-0.5 |
0.5-1.5 |
2.5 |
6 |
|
Max Current |
9 |
19 |
27 |
48 |
| Operating Voltage | 600V | |||
| Temperature Withstand | 105℃ | |||
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||
| USA | L | D | d | |||||||

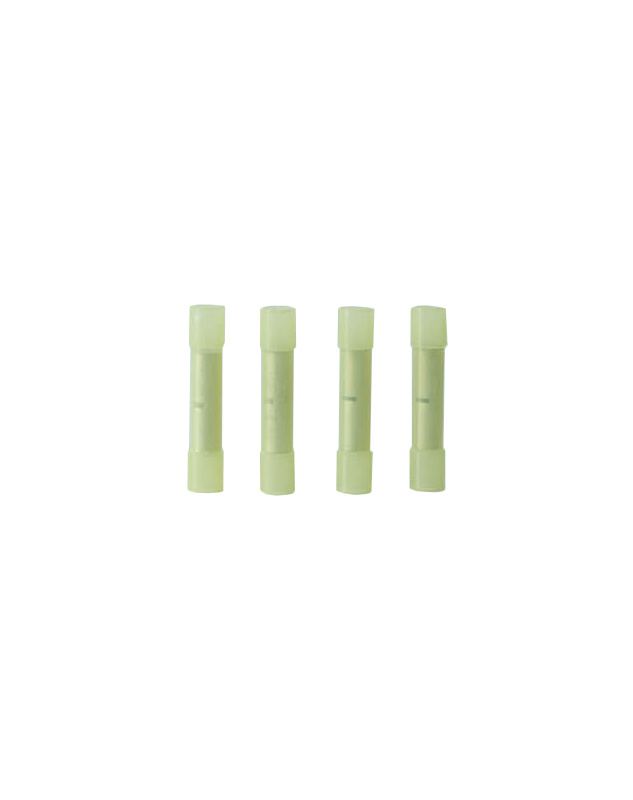

| A.W.G. 26-22 | KFBNL10 | 26-22 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF0.5 | BNYF0.5 | 0.787 | 0.118 | 0.059 | Yellow | OPT SN-02C | 1000 | |

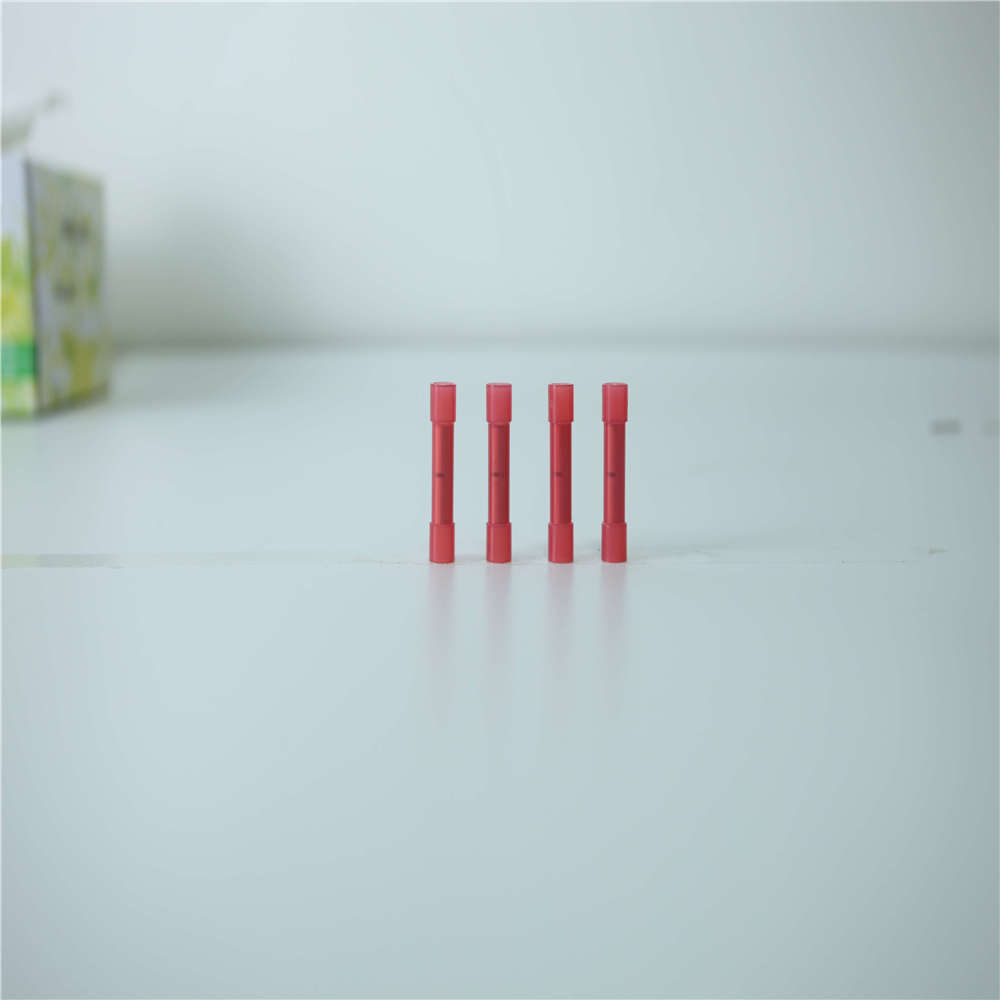

| A.W.G. 22-16 | KFBNL20 | 22-16 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF1.25 | BNYF1.25 | 1.043 | 0.157 | 0.079 | Red | IZUMI 3# | 1000 | |

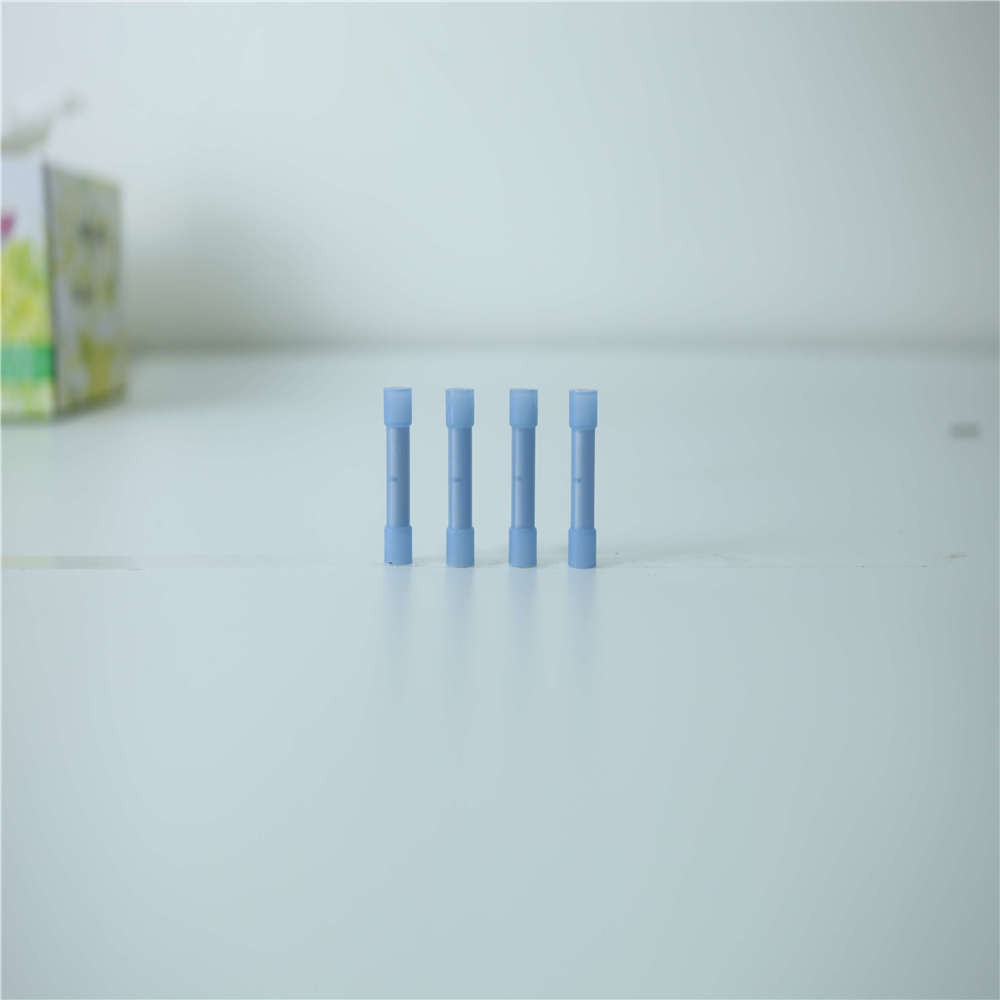

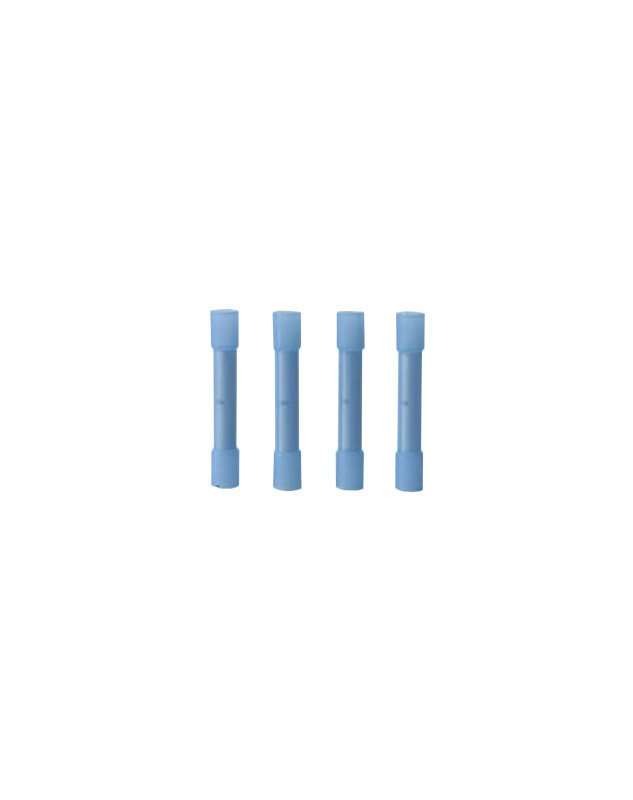

| A.W.G. 16-14 | KFBNL30 | 16-14 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF2 | BNYF2 | 1.043 | 0.177 | 0.098 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 12-10 | KFBNL40 | 12-10 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF5.5 | BNYF5.5 | 1.043 | 0.256 | 0.157 | Yellow | IZUMI 5# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||
| Meric | L | D | d | |||||||
| 0.2~0.5mm² | KFBNL10 | 26-22 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF0.5 | BNYF0.5 | 20.0 | 3.0 | 1.50 | Yellow | OPT SN-02C | 1000 | |
| 0.5~1.5mm² | KFBNL20 | 22-16 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF1.25 | BNYF1.25 | 26.5 | 4.0 | 2.00 | Red | IZUMI 3# | 1000 | |
| 1.5~2.5mm² | KFBNL30 | 16-14 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF2 | BNYF2 | 26.5 | 4.5 | 2.50 | Blue | IZUMI 4# | 1000 | |
| 4~6mm² | KFBNL40 | 12-10 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF5.5 | BNYF5.5 | 26.5 | 6.5 | 4.00 | Yellow | IZUMI 5# | 500 | |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||
| USA | L | D | d | |||||||
| A.W.G. 26-22 | KFBNL10 | 26-22 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF0.5 | BNYF0.5 | 0.787 | 0.118 | 0.059 | Yellow | OPT SN-02C | 1000 | |
| A.W.G. 22-16 | KFBNL20 | 22-16 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF1.25 | BNYF1.25 | 1.043 | 0.157 | 0.079 | Red | IZUMI 3# | 1000 | |
| A.W.G. 16-14 | KFBNL30 | 16-14 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF2 | BNYF2 | 1.043 | 0.177 | 0.098 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 12-10 | KFBNL40 | 12-10 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF5.5 | BNYF5.5 | 1.043 | 0.256 | 0.157 | Yellow | IZUMI 5# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||
| Meric | L | D | d | |||||||
| 0.2~0.5mm² | KFBNL10 | 26-22 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF0.5 | BNYF0.5 | 20.0 | 3.0 | 1.50 | Yellow | OPT SN-02C | 1000 | |
| 0.5~1.5mm² | KFBNL20 | 22-16 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF1.25 | BNYF1.25 | 26.5 | 4.0 | 2.00 | Red | IZUMI 3# | 1000 | |
| 1.5~2.5mm² | KFBNL30 | 16-14 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF2 | BNYF2 | 26.5 | 4.5 | 2.50 | Blue | IZUMI 4# | 1000 | |
| 4~6mm² | KFBNL40 | 12-10 AWG Nylon-Insulated Butt Splice Connectors (TL) BNYF5.5 | BNYF5.5 | 26.5 | 6.5 | 4.00 | Yellow | IZUMI 5# | 500 | |
