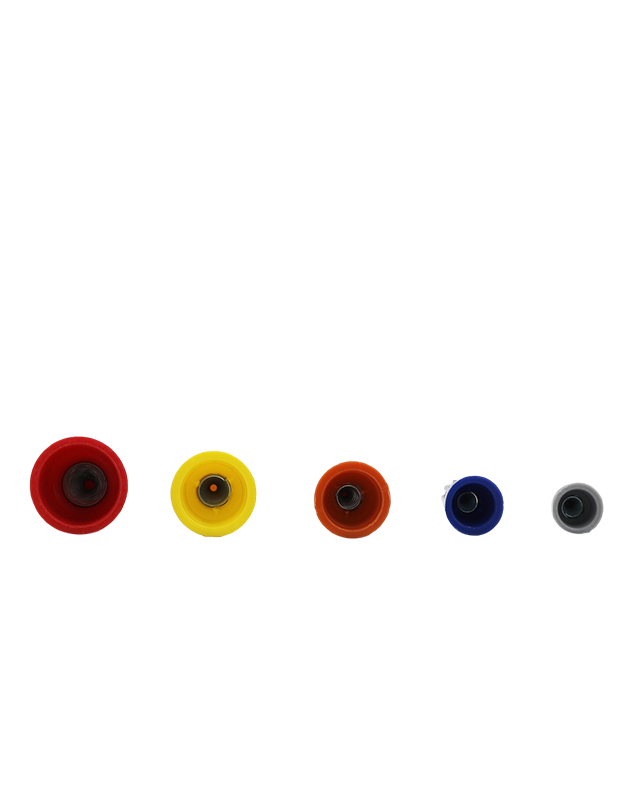

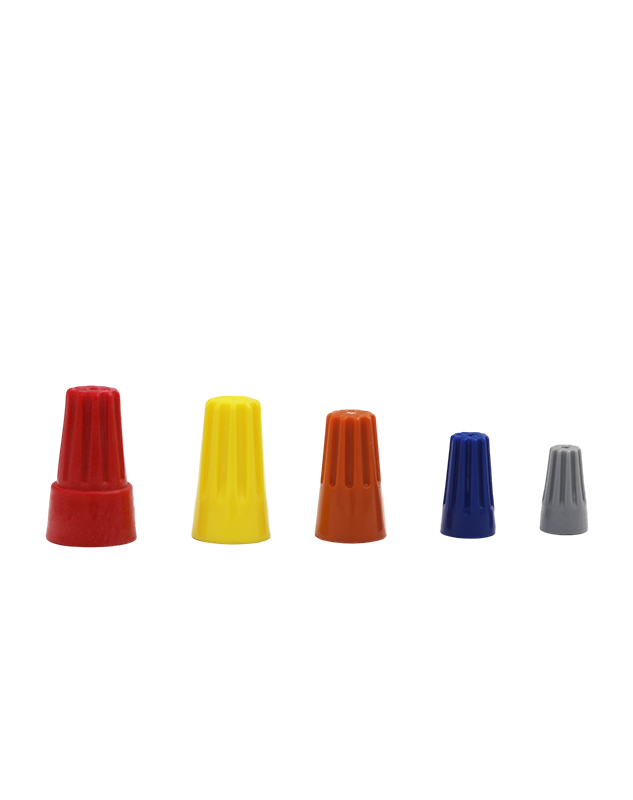

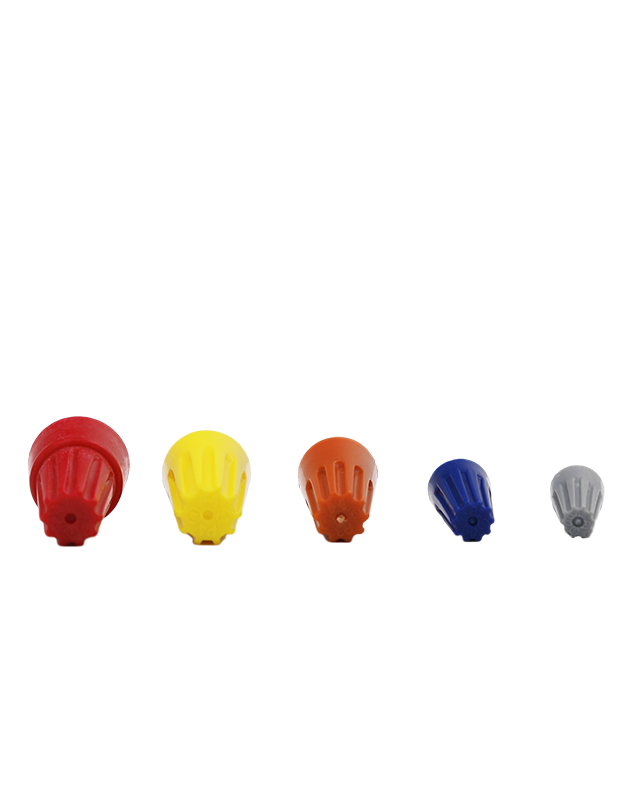

Screw-On Cap Connectors(With Spring Insert)

Screw-On Cap Connectors(With Spring Insert)

Brand

KF

Finish/Coating

Tinned

Base Materials

Flameproof modified engineering plastic,Galvanized steel

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 816

Product Details

Spec (American AWG)



Spec (JIS AWG)



Spec (DIN AWG)



Spec (GB mm2)



Max Current


Operating Voltage SP1-SP2:300V SP3-SP6:600
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color PCS/Pack
USA B C L
Least 0.75*1+0.5*1  Most 1.5*2  min0.75*1+0.75*1  max1.5*2 KFRSO10 Screw-On Cap Connectors(Without Spring ) SP1 SP1   0.335 0.256 0.591 Gray 1000
Least 0.75*3  Most 1.5*3  min0.75*3  max1.5*3 KFRSO20 Screw-On Cap Connectors(Without Spring ) SP2 SP2   0.394 0.295 0.689 Blue 1000
Least 0.75*3  Most 1.5*3+1*1  min0.75*3  max1.5*3+1*1 KFRSO30 Screw-On Cap Connectors(Without Spring ) SP3 SP3   0.492 0.374 0.866 Orange 500
Least 0.25*1+0.75*1  Most 2.5*4+0.75*1  min0.25*1+0.75*1  max2.5*4+0.75*1 KFRSO40 Screw-On Cap Connectors(Without Spring ) SP4 SP4   0.551 0.433 0.965 Yellow 500
Least 0.25*2  Most 6*2+4*2  min0.25*2  max6*2+4*2 KFRSO50 Screw-On Cap Connectors(Without Spring ) SP5 SP6   0.630 0.512 1.043 Red 200
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color PCS/Pack
Meric B C L
Least 0.75*1+0.5*1  Most 1.5*2  min0.75*1+0.75*1  max1.5*2 KFRSO10 Screw-On Cap Connectors(Without Spring ) SP1 SP1   8.5  6.5  15.0  Gray 1000
Least 0.75*3  Most 1.5*3  min0.75*3  max1.5*3 KFRSO20 Screw-On Cap Connectors(Without Spring ) SP2 SP2   10.0  7.5  17.5  Blue 1000
Least 0.75*3  Most 1.5*3+1*1  min0.75*3  max1.5*3+1*1 KFRSO30 Screw-On Cap Connectors(Without Spring ) SP3 SP3   12.5  9.5  22.0  Orange 500
Least 0.25*1+0.75*1  Most 2.5*4+0.75*1  min0.25*1+0.75*1  max2.5*4+0.75*1 KFRSO40 Screw-On Cap Connectors(Without Spring ) SP4 SP4   14.0  11.0  24.5  Yellow 500
Least 0.25*2  Most 6*2+4*2  min0.25*2  max6*2+4*2 KFRSO50 Screw-On Cap Connectors(Without Spring ) SP5 SP6   16.0  13.0  26.5  Red 200
