Vinyl-Insulated Butt Splice Connectors(TL) Suppliers

Vinyl-Insulated Butt Splice Connectors(TL)

Vinyl-Insulated Butt Splice Connectors(TL)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 679

Product Details

Spec (American AWG)

26-22

22-16

16-1 4

12-10

8

6

4

2

Spec (JIS AWG)

0.5

1.25

2

5.5

8

14

22

38

Spec (DIN AWG)

0.5

1

2.5

4.0-6.0

10

16

25

35

Spec (GB mm2)

0.1-0.5

0.5-1.5

2.5

6

10

16

25

35

Max Current

9

19

27

48

62

88

115

160
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA I D L

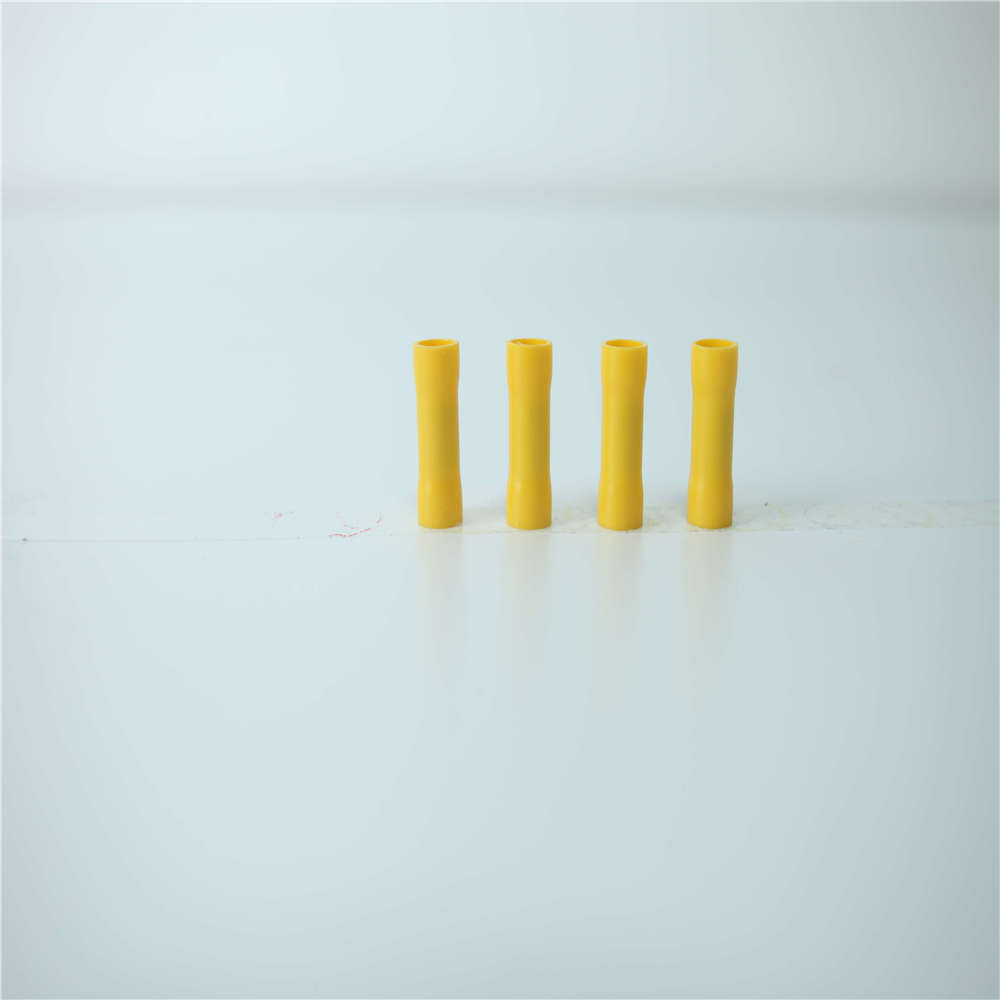

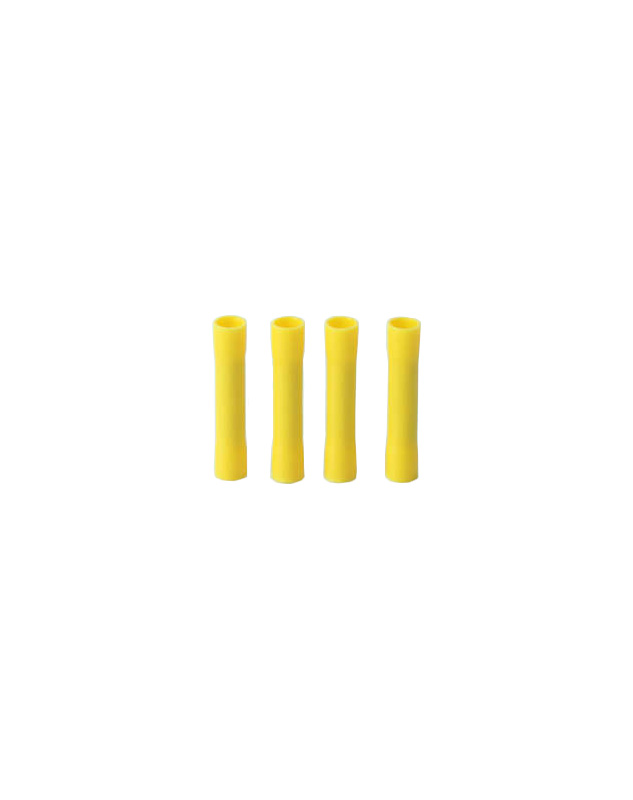

A.W.G. 26-22 KFBVL00 26-22 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV0.5 BV0.5   0.472 0.059 0.866 Yellow OPT SN-02C 1000

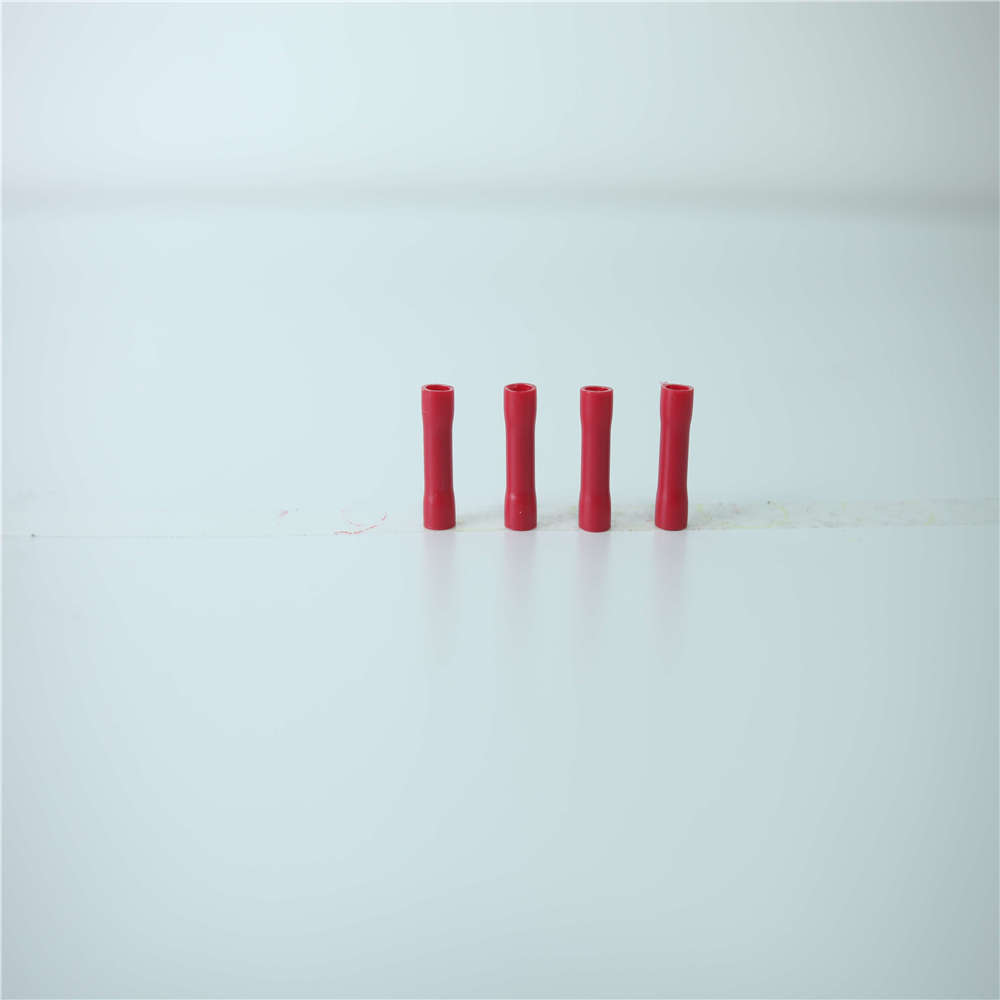

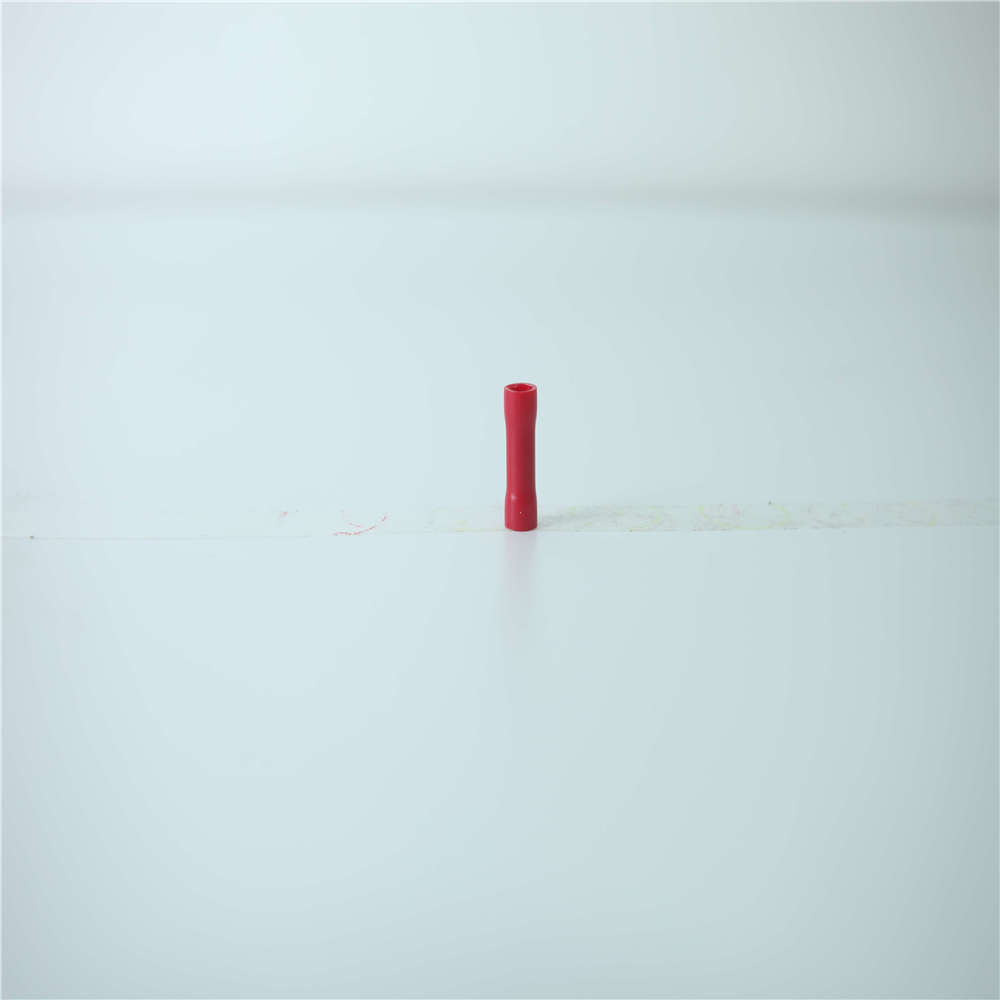

A.W.G. 22-16  KFBVL10 22-16 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV1.25 BV1.25   0.591 0.079 1.004 Red IZUMI 3# 1000

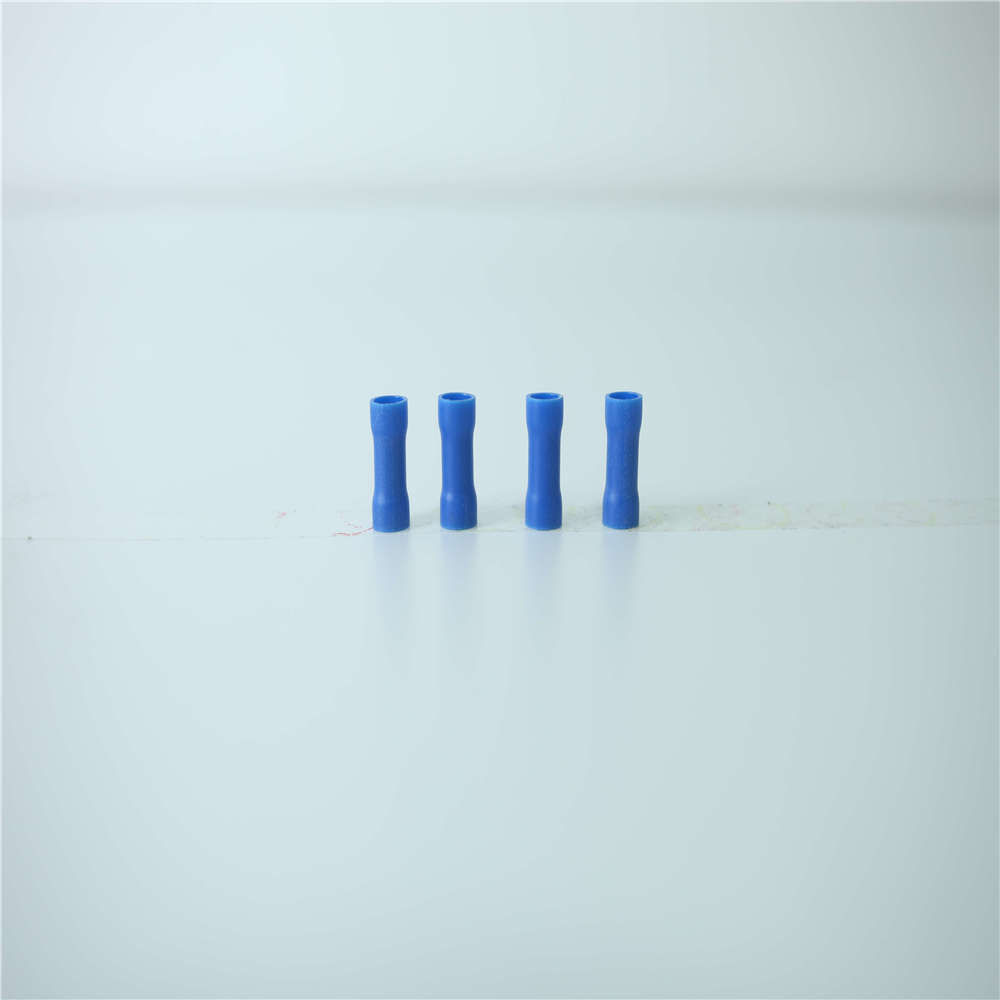

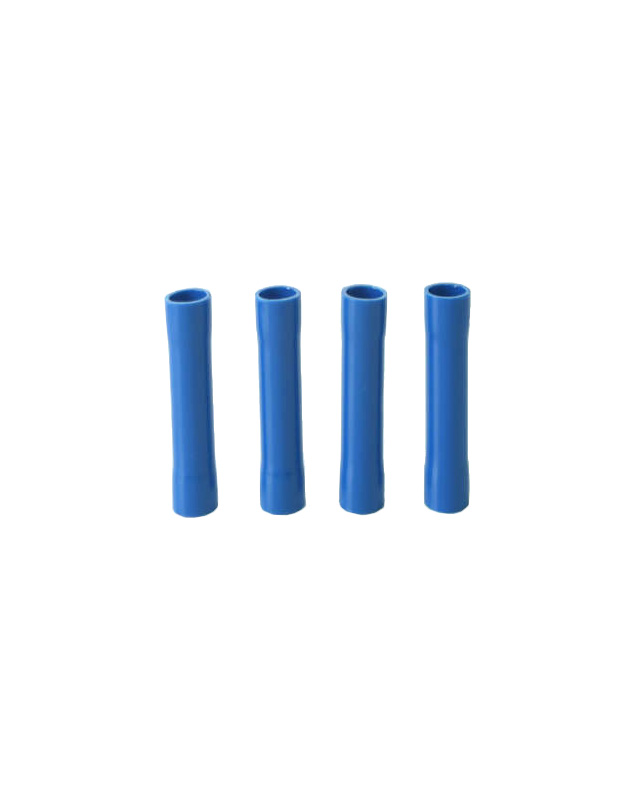

A.W.G. 16~14 KFBVL20 16-14 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV2 BV2   0.591 0.138 1.004 Blue IZUMI 4# 1000
A.W.G. 12~10  KFBVL30 12-10 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV5.5 BV5.5   0.591 0.157 1.004 Yellow IZUMI 5# 500
A.W.G.8 KFBVL40 8 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV8 BV8   0.827 0.197 1.240 Red OPT TP-80 250
A.W.G. 6 KFBVL50 6 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV14 BV14   1.024 0.256 1.614 Blue OPT TP-80 200
A.W.G. 4 KFBVL60 4 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV22 BV22   1.142 0.335 1.909 Yellow OPT TP-80 100
A.W.G. 2 KFBVL70 2 AWG Vinyl-Insulated Butt Splice Connectors (TL) BV38 BV38   1.260 0.394 2.146 Red OPT TP-80 50
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric I D L
0.2~0.5mm² KFBVL00 26-22 AWG Non-Insulated Twin Core End Terminal BV0.5 BV0.5   12.0  1.5  22.00  Yellow OPT SN-02C 1000
0.5~1.5mm² KFBVL10 22-16 AWG Non-Insulated Twin Core End Terminal BV1.25 BV1.25   15.0  2.0  25.50  Red IZUMI 3# 1000
1.5~2.5mm² KFBVL20 16-14 AWG Non-Insulated Twin Core End Terminal BV2 BV2   15.0  3.5  25.50  Blue IZUMI 4# 1000
4~6mm² KFBVL30 12-10 AWG Non-Insulated Twin Core End Terminal BV5.5 BV5.5   15.0  4.0  25.50  Yellow IZUMI 5# 500
8mm² KFBVL40 8 AWG Non-Insulated Twin Core End Terminal BV8 BV8   21.0  5.0  31.50  Red OPT TP-80 250
14mm² KFBVL50 6 AWG Non-Insulated Twin Core End Terminal BV14 BV14   26.0  6.5  41.00  Blue OPT TP-80 200
22mm² KFBVL60 4 AWG Non-Insulated Twin Core End Terminal BV22 BV22   29.0  8.5  48.50  Yellow OPT TP-80 100
38mm² KFBVL70 2 AWG Non-Insulated Twin Core End Terminal BV38 BV38   32.0  10.0  54.50  Red OPT TP-80 50
