Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Brass,Nylon |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
22-16 | 16-14 |
|
Spec (JIS AWG) |
1.25 | 2 |
|
Spec (DIN AWG) |
1 | 2.5 |
|
Spec (GB mm2) |
0.5-1.5 | 2.5 |
|
Max Current |
10 | 15 |
| Operating Voltage | 600V | |
| Temperature Withstand | 105℃ | |
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||||||
| USA | B | D | d | L | F | H | Thickness | |||||||

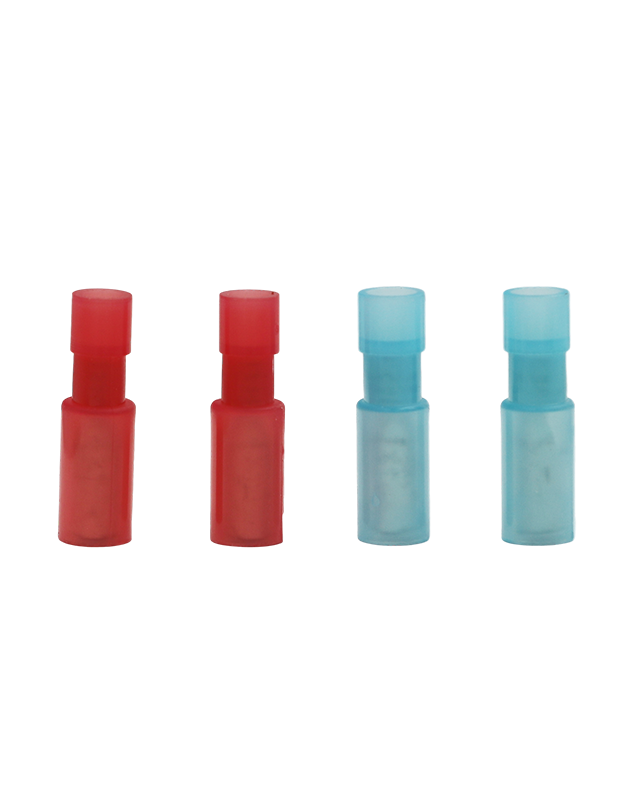

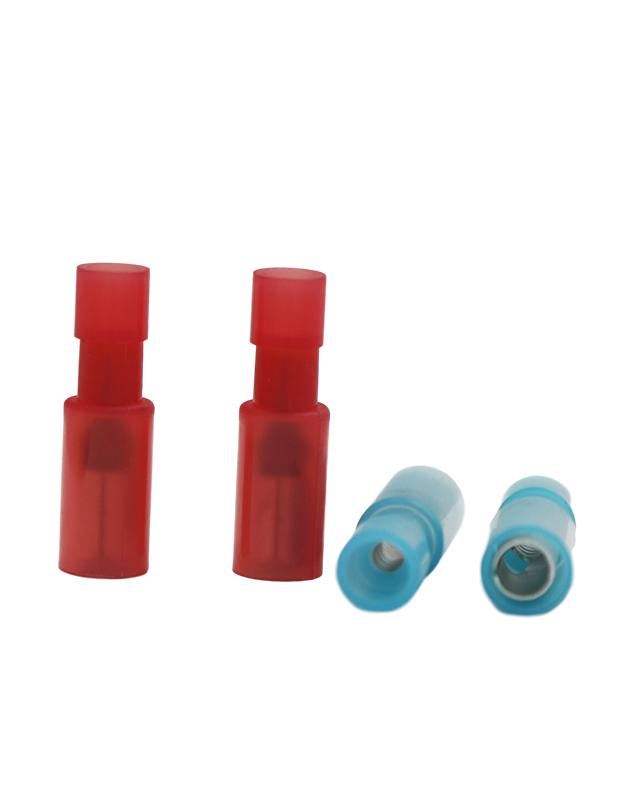

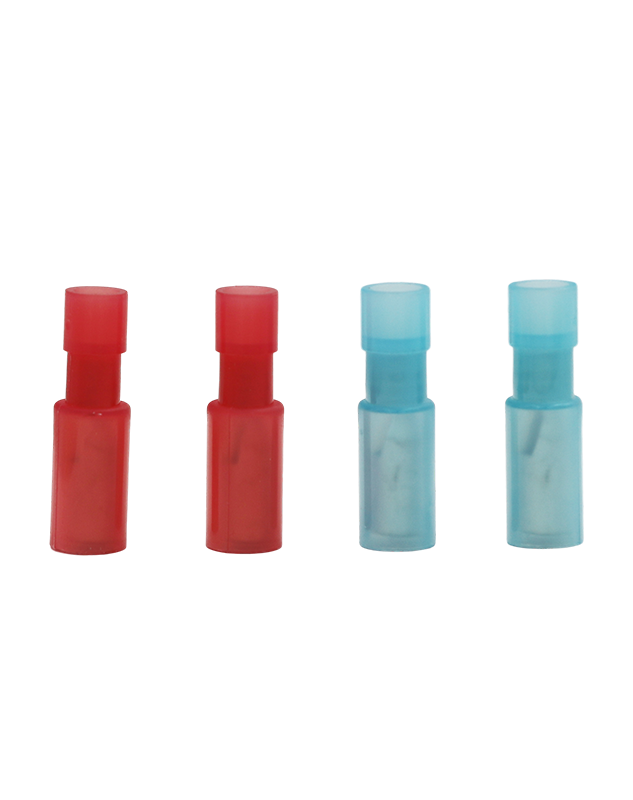

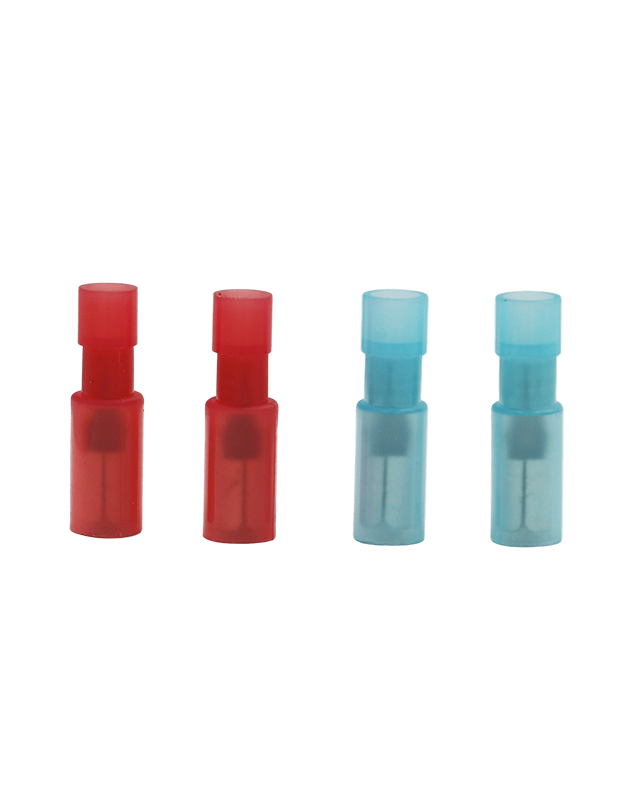

| A.W.G. 22-16 | KFQNB310 | 22-16 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 1.25-156 | FRFNY 1.25-156 | 0.157 | 0.157 | 0.079 | 0.945 | 0.354 | 0.413 | 0.016 | Red | IZUMI 3# | 500 | |
| A.W.G. 16-14 | KFQNB320 | 16-14 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 2-156 | FRFNY 2-156 | 0.157 | 0.197 | 0.098 | 0.945 | 0.354 | 0.413 | 0.016 | Blue | IZUMI 4# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||||||
| Meric | B | D | d | L | F | H | Thickness | |||||||
| 0.5～1.5mm² | KFQNB310 | 22-16 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 1.25-156 | FRFNY 1.25-156 | 4.0 | 4.0 | 2.0 | 24.0 | 9.0 | 10.5 | 0.40 | Red | IZUMI 3# | 500 | |
| 1.5～2.5mm² | KFQNB320 | 16-14 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 2-156 | FRFNY 2-156 | 4.0 | 5.0 | 2.5 | 24.0 | 9.0 | 10.5 | 0.40 | Blue | IZUMI 4# | 500 | |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||||||
| USA | B | D | d | L | F | H | Thickness | |||||||
| A.W.G. 22-16 | KFQNB310 | 22-16 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 1.25-156 | FRFNY 1.25-156 | 0.157 | 0.157 | 0.079 | 0.945 | 0.354 | 0.413 | 0.016 | Red | IZUMI 3# | 500 | |
| A.W.G. 16-14 | KFQNB320 | 16-14 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 2-156 | FRFNY 2-156 | 0.157 | 0.197 | 0.098 | 0.945 | 0.354 | 0.413 | 0.016 | Blue | IZUMI 4# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||||||
| Meric | B | D | d | L | F | H | Thickness | |||||||
| 0.5～1.5mm² | KFQNB310 | 22-16 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 1.25-156 | FRFNY 1.25-156 | 4.0 | 4.0 | 2.0 | 24.0 | 9.0 | 10.5 | 0.40 | Red | IZUMI 3# | 500 | |
| 1.5～2.5mm² | KFQNB320 | 16-14 AWG Nylon-Fully Insulated Bullet Female Quick Disconnectors FRFNY 2-156 | FRFNY 2-156 | 4.0 | 5.0 | 2.5 | 24.0 | 9.0 | 10.5 | 0.40 | Blue | IZUMI 4# | 500 | |
