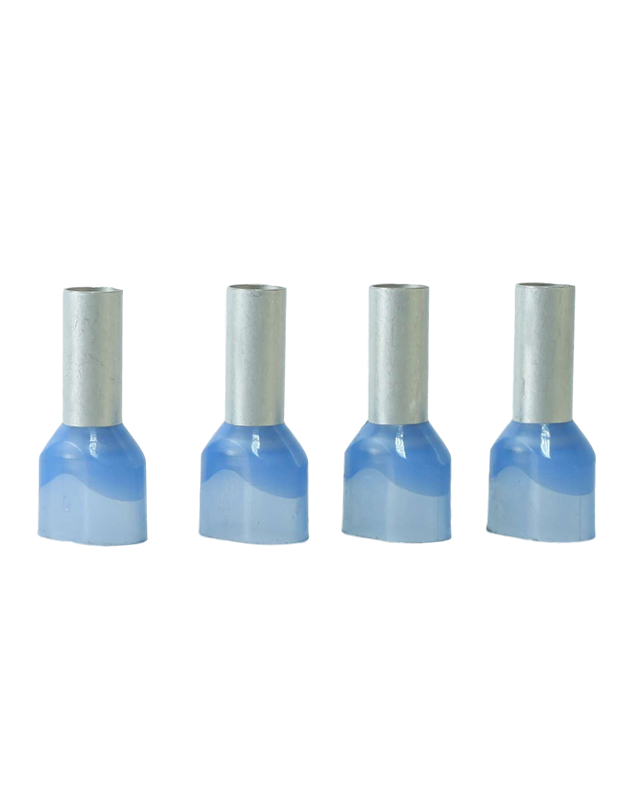

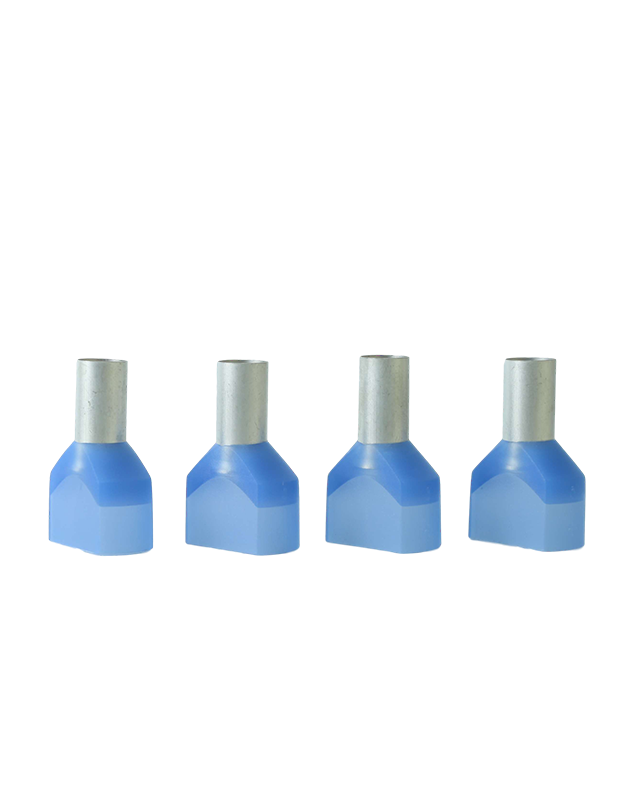

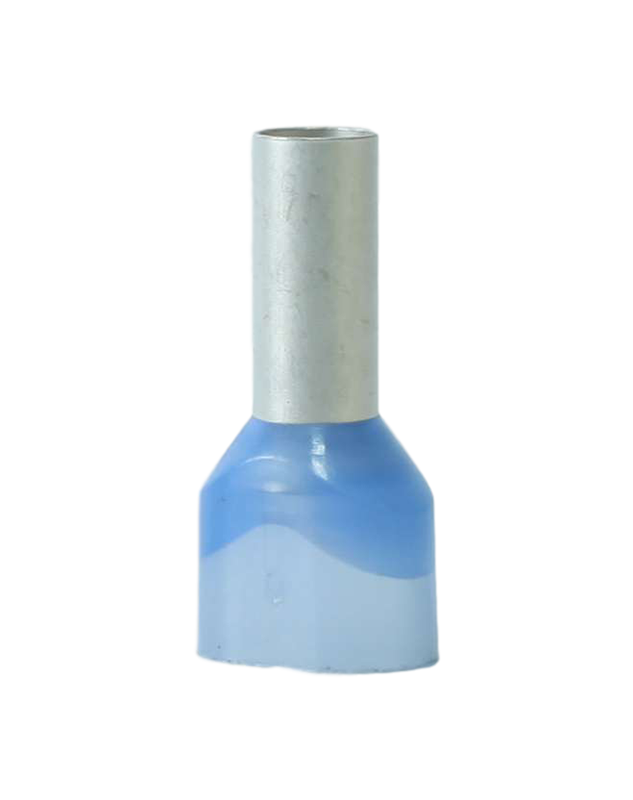

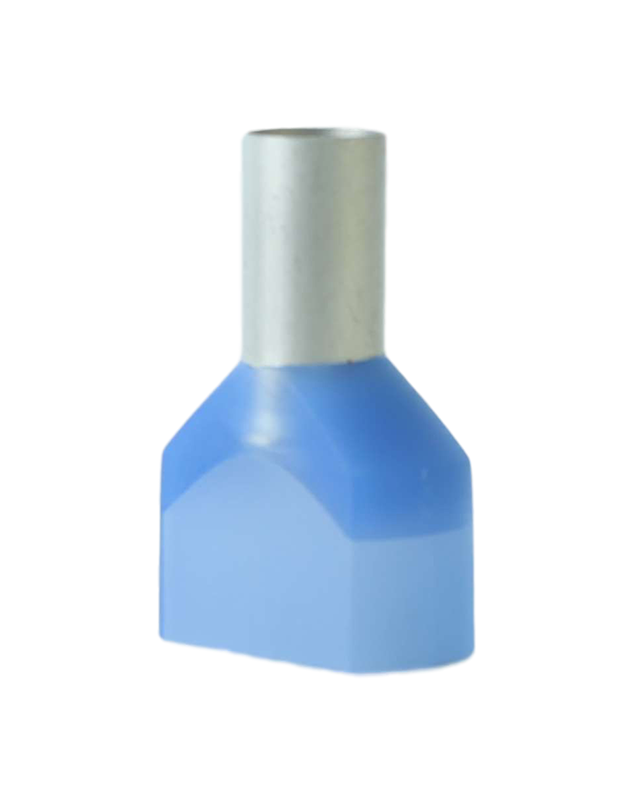

PP-Insulated Twin Cord End Terminalss

PP-Insulated Twin Cord End Terminalss

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PP

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





1+
Views: 523

Product Details

Spec (American AWG)

575101525406010-16-

Spec (JIS AWG)



Spec (DIN AWG)



Spec (GB mm2)



Max Current

91217183035507095
Operating Voltage600V
Temperature Withstand105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire RangeSKU#DescriptionMFG#Stud Size Dimensions InchColorToolPCS/Pack
USAFLWBDC
A.W.G. 22*2KFC2P1022*2 AWG PP-Insulated Twin Cord End Terminals TE 0508TE 0508 0.3150.5710.1970.2560.0710.059(1)White (2)WhiteOPT AN-10WF2000
A.W.G. 22*2KFC2P1122*2 AWG PP-Insulated Twin Cord End Terminals TE 0510TE 0510 0.3940.6500.1970.2560.0710.059(1)White (2)WhiteOPT AN-10WF2000
A.W.G. 22*2KFC2P1222*2 AWG PP-Insulated Twin Cord End Terminals TE 0512TE 0512 0.4720.7280.1970.2560.0710.059(1)White (2)WhiteOPT AN-10WF2000
A.W.G. 20*2KFC2P2020*2 AWG PP-Insulated Twin Cord End Terminals TE 7508TE 7508 0.3150.5910.2170.2760.0810.067(1)Blue (2)GrayOPT AN-10WF2000
A.W.G. 20*2KFC2P2120*2 AWG PP-Insulated Twin Cord End Terminals TE 7510TE 7510 0.3940.6690.2170.2760.0810.067(1)Blue (2)GrayOPT AN-10WF2000
A.W.G. 20*2KFC2P2220*2 AWG PP-Insulated Twin Cord End Terminals TE 7512TE 7512 0.4720.7480.2170.2760.0810.067(1)Blue (2)GrayOPT AN-10WF2000
A.W.G. 18*2KFC2P3018*2 AWG PP-Insulated Twin Cord End Terminals TE 1008TE 1008 0.3150.5910.2170.2760.0910.079(1)Red (2)RedOPT AN-10WF2000
A.W.G. 18*2KFC2P3118*2 AWG PP-Insulated Twin Cord End Terminals TE 1010TE 1010 0.3940.6690.2170.2760.0910.079(1)Red (2)RedOPT AN-10WF2000
A.W.G. 18*2KFC2P3218*2 AWG PP-Insulated Twin Cord End Terminals TE 1012TE 1012 0.4720.7480.2170.2760.0910.079(1)Red (2)RedOPT AN-10WF2000
A.W.G. 16*2 KFC2P4016*2 AWG PP-Insulated Twin Cord End Terminals TE 1508TE 1508 0.3150.6100.2560.2950.1020.091(1)Black (2)YellowOPT AN-10WF1000
A.W.G. 16*2KFC2P4116*2 AWG PP-Insulated Twin Cord End Terminals TE 1510TE 1510 0.3940.6890.2560.2950.1020.091(1)Black (2)YellowOPT AN-10WF1000
A.W.G. 16*2KFC2P4216*2 AWG PP-Insulated Twin Cord End Terminals TE 1512TE 1512 0.4720.7680.2560.2950.1020.091(1)Black (2)YellowOPT AN-10WF1000
A.W.G. 16*2KFC2P4316*2 AWG PP-Insulated Twin Cord End Terminals TE 1515TE 1515 0.5910.8860.2560.2950.1020.091(1)Black (2)YellowOPT AN-10WF1000
A.W.G. 16*2KFC2P4416*2 AWG PP-Insulated Twin Cord End Terminals TE 1518TE 1518 0.7091.0040.2560.2950.1020.091(1)Black (2)YellowOPT AN-10WF1000
A.W.G. 14*2KFC2P5014*2 AWG PP-Insulated Twin Cord End Terminals TE 2508TE 2508 0.3150.6500.3150.3350.1300.116(1)Gray (2)BlueOPT AN-10WF1000
A.W.G. 14*2KFC2P5114*2 AWG PP-Insulated Twin Cord End Terminals TE 2510TE 2510 0.3940.7280.3150.3350.1300.116(1)Gray (2)BlueOPT AN-10WF1000
A.W.G. 14*2KFC2P5214*2 AWG PP-Insulated Twin Cord End Terminals TE 2513TE 2513 0.5120.8460.3150.3350.1300.116(1)Gray (2)BlueOPT AN-10WF1000
A.W.G. 14*2KFC2P5314*2 AWG PP-Insulated Twin Cord End Terminals TE 2518TE 2518 0.7091.0430.3150.3350.1300.116(1)Gray (2)BlueOPT AN-10WF1000
A.W.G. 12*2KFC2P6012*2 AWG PP-Insulated Twin Cord End Terminals TE 4009TE 4009 0.3540.6890.3540.3350.1650.152(1)Orange (2)BlueOPT AN-10WF1000
A.W.G. 12*2KFC2P6112*2 AWG PP-Insulated Twin Cord End Terminals TE 4012TE 4012 0.4720.8070.3540.3350.1650.152(1)Orange (2)BlueOPT AN-10WF1000
A.W.G. 10*2KFC2P7010*2 AWG PP-Insulated Twin Cord End Terminals TE 6012TE 6012 0.4720.8660.3740.3940.2050.191(1)Green (2)YellowOPT AN-25WF500
A.W.G. 10*2KFC2P7110*2 AWG PP-Insulated Twin Cord End Terminals TE 6014TE 6014 0.5510.9450.3740.3940.2050.191(1)Green (2)YellowOPT AN-25WF500
A.W.G. 8*2KFC2P808*2 AWG PP-Insulated Twin Cord End Terminals TE 10-14TE 10-14 0.5511.0430.5120.4920.2720.258(1)Brown (2)RedOPT AN-25WF250
A.W.G. 6*2KFC2P906*2 AWG PP-Insulated Twin Cord End Terminals TE 16-14TE 16-14 0.5511.2400.7280.6890.3460.333(1)Milk (2)BlueOPT AN-25WF250
Wire RangeSKU#DescriptionMFG#Stud Size Dimensions mmColorToolPCS/Pack
MericFLWBDC
 0.5mm²*2KFC2P1022*2 AWG PP-Insulated Twin Cord End Terminals TE 0508TE 0508 8.0 14.5 5.0 6.5 1.8 1.50 (1)White (2)WhiteOPT AN-10WF2000
 0.5mm²*2KFC2P1122*2 AWG PP-Insulated Twin Cord End Terminals TE 0510TE 0510 10.0 16.5 5.0 6.5 1.8 1.50 (1)White (2)WhiteOPT AN-10WF2000
 0.5mm²*2KFC2P1222*2 AWG PP-Insulated Twin Cord End Terminals TE 0512TE 0512 12.0 18.5 5.0 6.5 1.8 1.50 (1)White (2)WhiteOPT AN-10WF2000
 0.75mm²*2KFC2P2020*2 AWG PP-Insulated Twin Cord End Terminals TE 7508TE 7508 8.0 15.0 5.5 7.0 2.1 1.70 (1)Blue (2)GrayOPT AN-10WF2000
 0.75mm²*2KFC2P2120*2 AWG PP-Insulated Twin Cord End Terminals TE 7510TE 7510 10.0 17.0 5.5 7.0 2.1 1.70 (1)Blue (2)GrayOPT AN-10WF2000
 0.75mm²*2KFC2P2220*2 AWG PP-Insulated Twin Cord End Terminals TE 7512TE 7512 12.0 19.0 5.5 7.0 2.1 1.70 (1)Blue (2)GrayOPT AN-10WF2000
 1.0mm²*2KFC2P3018*2 AWG PP-Insulated Twin Cord End Terminals TE 1008TE 1008 8.0 15.0 5.5 7.0 2.3 2.00 (1)Red (2)RedOPT AN-10WF2000
 1.0mm²*2KFC2P3118*2 AWG PP-Insulated Twin Cord End Terminals TE 1010TE 1010 10.0 17.0 5.5 7.0 2.3 2.00 (1)Red (2)RedOPT AN-10WF2000
 1.0mm²*2KFC2P3218*2 AWG PP-Insulated Twin Cord End Terminals TE 1012TE 1012 12.0 19.0 5.5 7.0 2.3 2.00 (1)Red (2)RedOPT AN-10WF2000
 1.5mm²*2KFC2P4016*2 AWG PP-Insulated Twin Cord End Terminals TE 1508TE 1508 8.0 15.5 6.5 7.5 2.6 2.30 (1)Black (2)YellowOPT AN-10WF1000
 1.5mm²*2KFC2P4116*2 AWG PP-Insulated Twin Cord End Terminals TE 1510TE 1510 10.0 17.5 6.5 7.5 2.6 2.30 (1)Black (2)YellowOPT AN-10WF1000
 1.5mm²*2KFC2P4216*2 AWG PP-Insulated Twin Cord End Terminals TE 1512TE 1512 12.0 19.5 6.5 7.5 2.6 2.30 (1)Black (2)YellowOPT AN-10WF1000
 1.5mm²*2KFC2P4316*2 AWG PP-Insulated Twin Cord End Terminals TE 1515TE 1515 15.0 22.5 6.5 7.5 2.6 2.30 (1)Black (2)YellowOPT AN-10WF1000
 1.5mm²*2KFC2P4416*2 AWG PP-Insulated Twin Cord End Terminals TE 1518TE 1518 18.0 25.5 6.5 7.5 2.6 2.30 (1)Black (2)YellowOPT AN-10WF1000
 2.5mm²*2KFC2P5014*2 AWG PP-Insulated Twin Cord End Terminals TE 2508TE 2508 8.0 16.5 8.0 8.5 3.3 2.95 (1)Gray (2)BlueOPT AN-10WF1000
 2.5mm²*2KFC2P5114*2 AWG PP-Insulated Twin Cord End Terminals TE 2510TE 2510 10.0 18.5 8.0 8.5 3.3 2.95 (1)Gray (2)BlueOPT AN-10WF1000
 2.5mm²*2KFC2P5214*2 AWG PP-Insulated Twin Cord End Terminals TE 2513TE 2513 13.0 21.5 8.0 8.5 3.3 2.95 (1)Gray (2)BlueOPT AN-10WF1000
 2.5mm²*2KFC2P5314*2 AWG PP-Insulated Twin Cord End Terminals TE 2518TE 2518 18.0 26.5 8.0 8.5 3.3 2.95 (1)Gray (2)BlueOPT AN-10WF1000
4.0mm²*2KFC2P6012*2 AWG PP-Insulated Twin Cord End Terminals TE 4009TE 4009 9.0 17.5 9.0 8.5 4.2 3.85 (1)Orange (2)BlueOPT AN-10WF1000
4.0mm²*2KFC2P6112*2 AWG PP-Insulated Twin Cord End Terminals TE 4012TE 4012 12.0 20.5 9.0 8.5 4.2 3.85 (1)Orange (2)BlueOPT AN-10WF1000
6.0mm²*2KFC2P7010*2 AWG PP-Insulated Twin Cord End Terminals TE 6012TE 6012 12.0 22.0 9.5 10.0 5.2 4.85 (1)Green (2)YellowOPT AN-25WF500
6.0mm²*2KFC2P7110*2 AWG PP-Insulated Twin Cord End Terminals TE 6014TE 6014 14.0 24.0 9.5 10.0 5.2 4.85 (1)Green (2)YellowOPT AN-25WF500
10.0mm²*2KFC2P808*2 AWG PP-Insulated Twin Cord End Terminals TE 10-14TE 10-14 14.0 26.5 13.0 12.5 6.9 6.55 (1)Brown (2)RedOPT AN-25WF250
16.0mm²*2KFC2P906*2 AWG PP-Insulated Twin Cord End Terminals TE 16-14TE 16-14 14.0 31.5 18.5 17.5 8.8 8.45 (1)Milk (2)BlueOPT AN-25WF250
