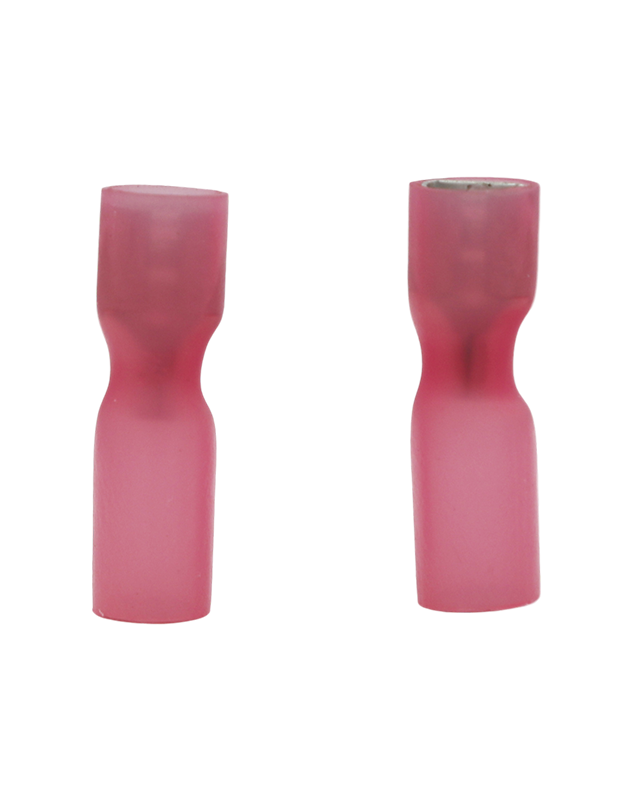

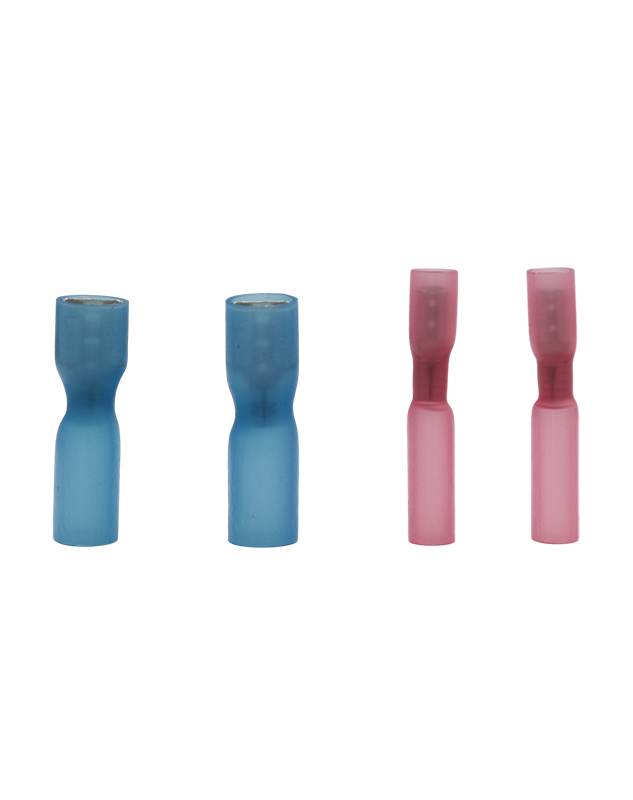

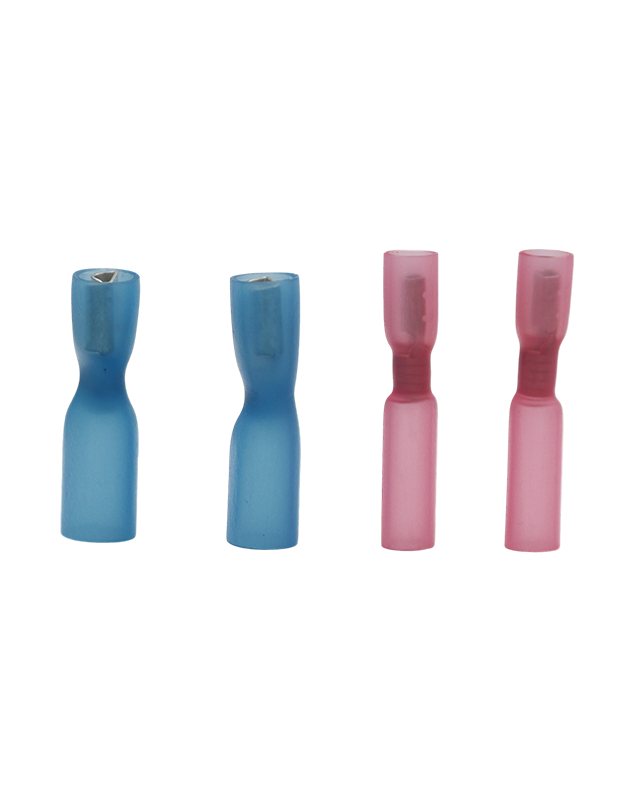

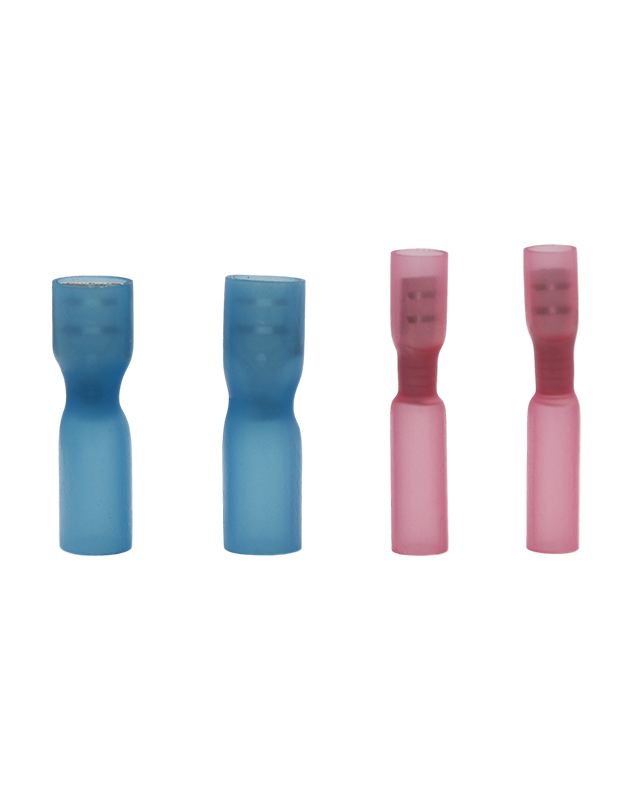

Heat Shrink-Fully Insulated Female Quick Disconnectors

Heat Shrink-Fully Insulated Female Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,165

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B D L Thickness
A.W.G. 22-16 KFQHBF10 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-110(5) FDFH 1.25-110(5)   0.138 0.276 1.102 0.012 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHBF11 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-110(8) FDFH 1.25-110(8)   0.138 0.276 1.102 0.012 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHBF12 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-187(5) FDFH 1.25-187(5)   0.197 0.276 1.102 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHBF13 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-187(8) FDFH 1.25-187(8)   0.197 0.276 1.102 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQHBF14 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-250 FDFH 1.25-250   0.256 0.276 1.102 0.016 Red IZUMI  3# 1000
A.W.G. 16～14 KFQHBF20 16-14 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 2-187(5) FDFH 2-187(5)   0.197 0.276 1.102 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQHBF21 16-14 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 2-187(8) FDFH 2-187(8)   0.197 0.276 1.102 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQHBF22 16-14 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 2-250 FDFH 2-250   0.256 0.276 1.102 0.016 Blue IZUMI  4# 1000
A.W.G. 12～10 KFQHBF30 12-10 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 5.5-250 FDFH 5.5-250   0.256 0.276 1.181 0.016 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B D L Thickness
0.5～1.5mm² KFQHBF10 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-110(5) FDFH 1.25-110(5)   3.5  7.0  28.0  0.30  Red IZUMI  3# 1000
0.5～1.5mm² KFQHBF11 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-110(8) FDFH 1.25-110(8)   3.5  7.0  28.0  0.30  Red IZUMI  3# 1000
0.5～1.5mm² KFQHBF12 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-187(5) FDFH 1.25-187(5)   5.0  7.0  28.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQHBF13 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-187(8) FDFH 1.25-187(8)   5.0  7.0  28.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQHBF14 22-16 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 1.25-250 FDFH 1.25-250   6.5  7.0  28.0  0.40  Red IZUMI  3# 1000
1.5～2.5mm² KFQHBF20 16-14 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 2-187(5) FDFH 2-187(5)   5.0  7.0  28.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQHBF21 16-14 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 2-187(8) FDFH 2-187(8)   5.0  7.0  28.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQHBF22 16-14 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 2-250 FDFH 2-250   6.5  7.0  28.0  0.40  Blue IZUMI  4# 1000
4～6mm² KFQHBF30 12-10 AWG Heat Shrink-Fully Insulated Female Quick Disconnectors FDFH 5.5-250 FDFH 5.5-250   6.5  7.0  30.0  0.40  Yellow IZUMI  5# 500
