Nylon-Insulated Single Crimp Blade Terminals Suppliers

Nylon-Insulated Single Crimp Blade Terminals

Nylon-Insulated Single Crimp Blade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 434

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 19 27 48
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L F H D Thickness
A.W.G. 22-16 KFSN510 22-16 AWG Nylon-Insulated Single Crimp Blade Terminals 1.25-10 DBNY1.25-10 3/8" 0.098 0.807 0.394 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN511 22-16 AWG Nylon-Insulated Single Crimp Blade Terminals 1.25-14 DBNY1.25-14 9/16" 0.079 0.965 0.551 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN512 22-16 AWG Nylon-Insulated Single Crimp Blade Terminals 1.25-18 DBNY1.25-18 11/16" 0.079 1.122 0.709 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSN520 16-14 AWG Nylon-Insulated Single Crimp Blade Terminals 2-10 DBNY2-10 3/8" 0.118 0.807 0.394 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN521 16-14 AWG Nylon-Insulated Single Crimp Blade Terminals 2-14 DBNY2-14 9/16" 0.098 0.965 0.551 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN522 16-14 AWG Nylon-Insulated Single Crimp Blade Terminals 2-18 DBNY2-18 11/16" 0.079 1.122 0.709 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSN530 12-10 AWG Nylon-Insulated Single Crimp Blade Terminals 5.5-10 DBNY5.5-10 3/8" 0.118 0.925 0.394 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN531 12-10 AWG Nylon-Insulated Single Crimp Blade Terminals 5.5-14 DBNY5.5-14 9/16" 0.177 1.083 0.551 0.531 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN532 12-10 AWG Nylon-Insulated Single Crimp Blade Terminals 5.5-18 DBNY5.5-18 11/16" 0.177 1.240 0.709 0.531 0.276 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L F H D Thickness
0.5~1.5mm² KFSN510 22-16 AWG Nylon-Insulated Single Crimp Blade Terminals 1.25-10 DBNY1.25-10 10.0 2.5  20.5  10.0  10.5  4.0  0.75  Red IZUMI 3# 1000

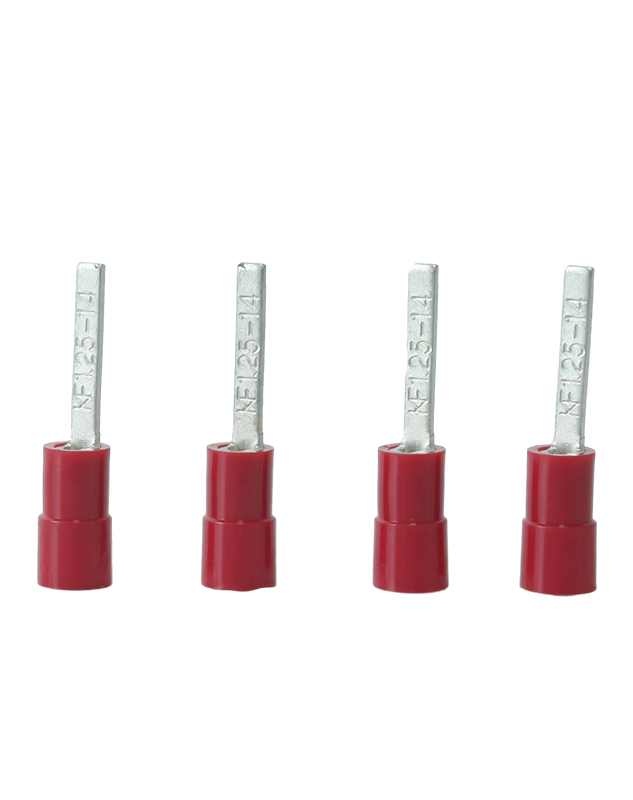

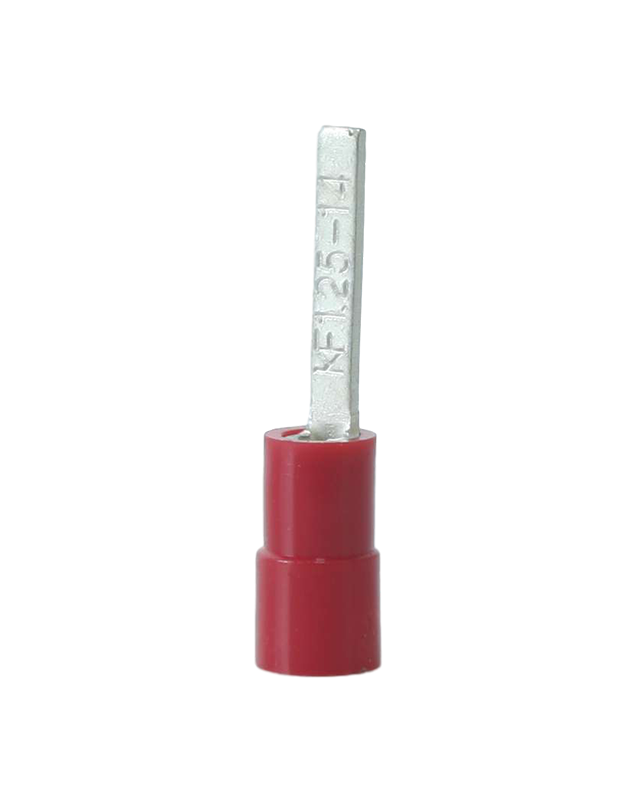

0.5~1.5mm² KFSN511 22-16 AWG Nylon-Insulated Single Crimp Blade Terminals 1.25-14 DBNY1.25-14 14.0 2.0  24.5  14.0  10.5  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSN512 22-16 AWG Nylon-Insulated Single Crimp Blade Terminals 1.25-18 DBNY1.25-18 18.0 2.0  28.5  18.0  10.5  4.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSN520 16-14 AWG Nylon-Insulated Single Crimp Blade Terminals 2-10 DBNY2-10 10.0 3.0  20.5  10.0  10.5  4.5  0.80  Blue IZUMI 4# 1000

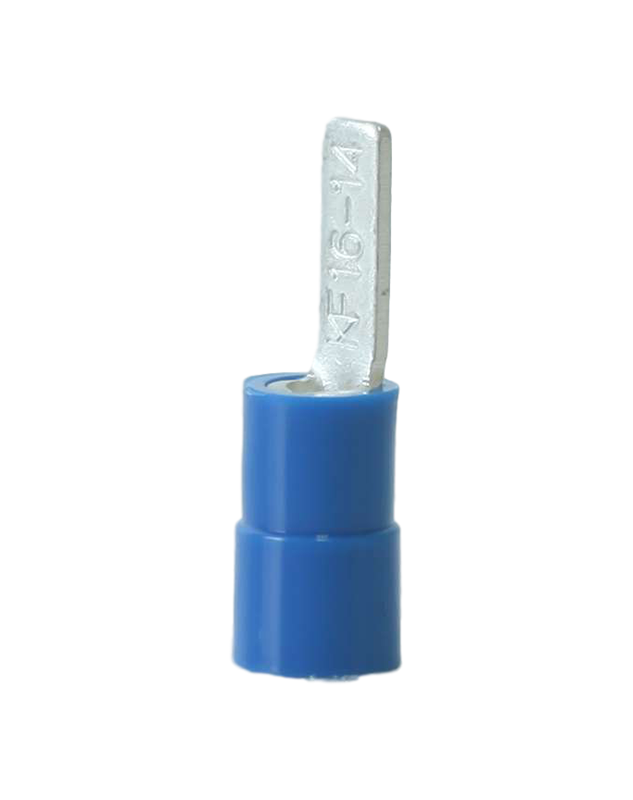

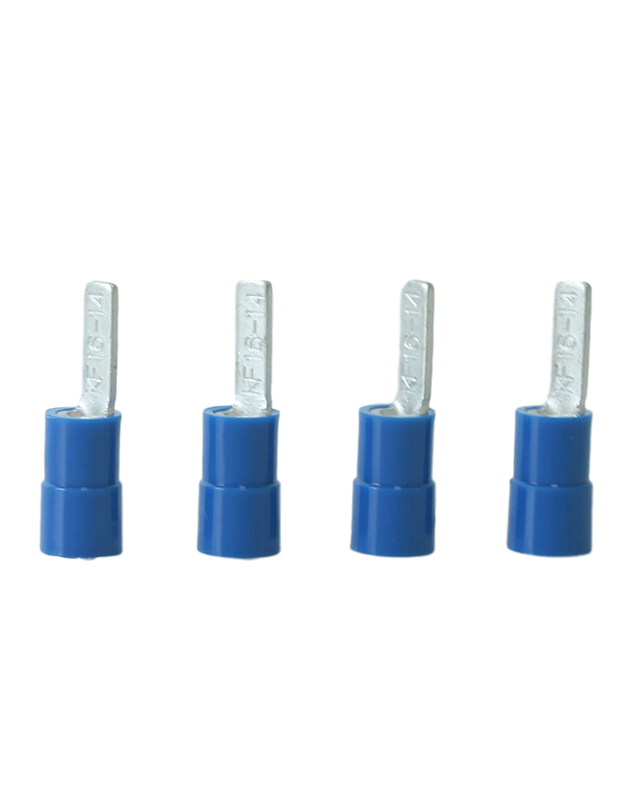

1.5~2.5mm² KFSN521 16-14 AWG Nylon-Insulated Single Crimp Blade Terminals 2-14 DBNY2-14 14.0 2.5  24.5  14.0  10.5  4.5  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSN522 16-14 AWG Nylon-Insulated Single Crimp Blade Terminals 2-18 DBNY2-18 18.0 2.0  28.5  18.0  10.5  4.5  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSN530 12-10 AWG Nylon-Insulated Single Crimp Blade Terminals 5.5-10 DBNY5.5-10 10.0 3.0  23.5  10.0  13.5  7.0  1.0  Yellow IZUMI 5# 1000

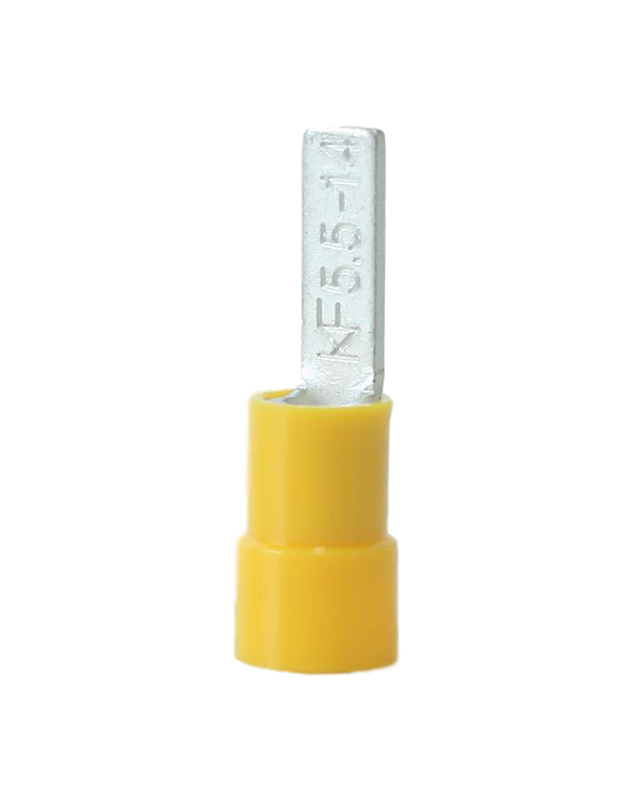

4.0~6.0mm² KFSN531 12-10 AWG Nylon-Insulated Single Crimp Blade Terminals 5.5-14 DBNY5.5-14 14.0 4.5  27.5  14.0  13.5  7.0  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN532 12-10 AWG Nylon-Insulated Single Crimp Blade Terminals 5.5-18 DBNY5.5-18 18.0 4.5  31.5  18.0  13.5  7.0  1.0  Yellow IZUMI 5# 500
