Nylon-Fully Insulated Male Quick Disconnectors Suppliers

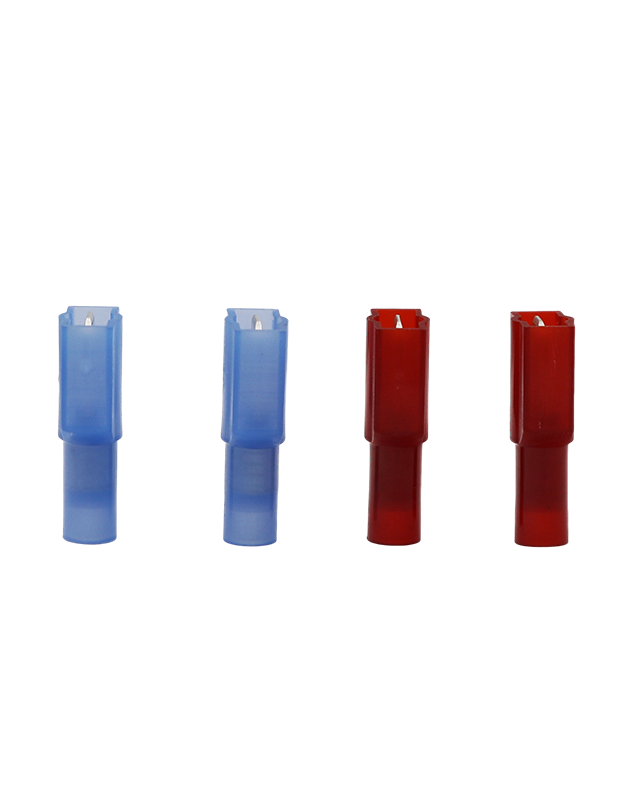

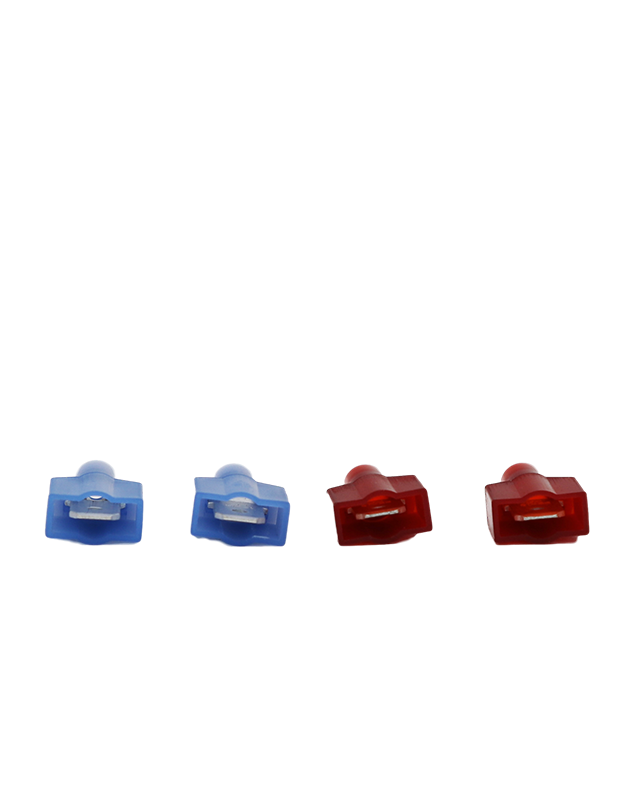

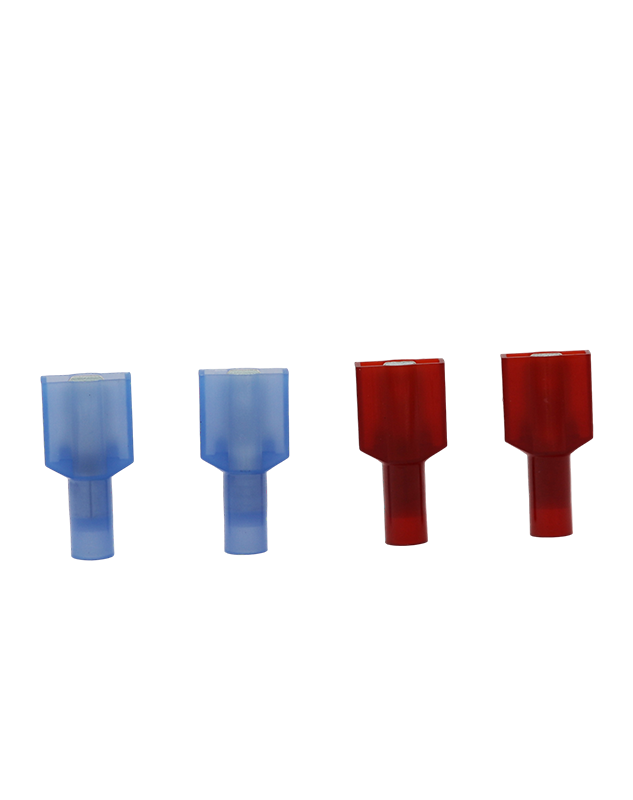

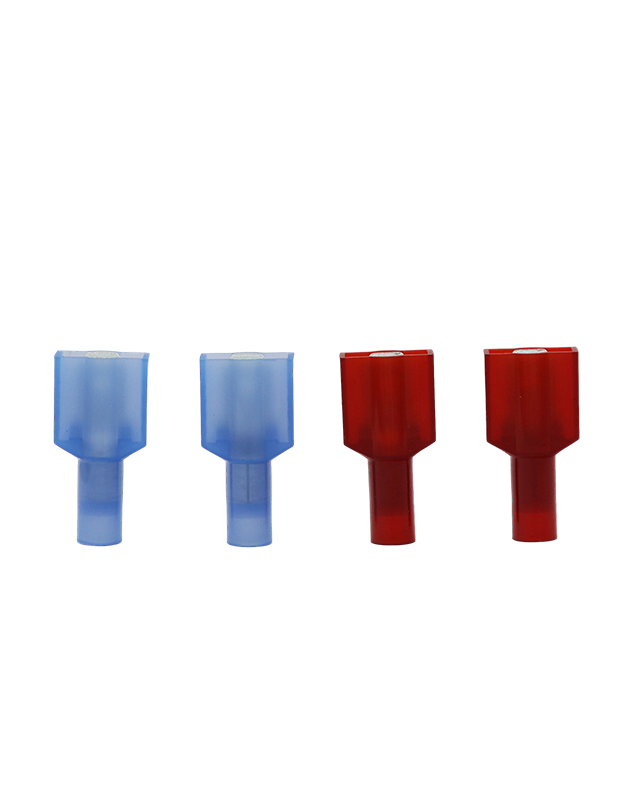

Nylon-Fully Insulated Male Quick Disconnectors

Nylon-Fully Insulated Male Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 436

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 10 15 24
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA W F L B D C Thickness
A.W.G. 22-16 KFQNM210 22-16 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 1.25-250 MDFNY 1.25-250   0.250 0.315 0.945 0.433 0.157 0.079 0.031 Red IZUMI  3# 500
A.W.G. 16~14 KFQNM220 16-14 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 2-250 MDFNY 2-250   0.250 0.315 0.965 0.433 0.157 0.098 0.031 Blue IZUMI  4# 500
A.W.G. 12~10 KFQNM230 12-10 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 5.5-250 MDFNY 5.5-250   0.250 0.315 1.004 0.512 0.197 0.138 0.031 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric W F L B D C Thickness
0.5~1.5mm² KFQNM210 22-16 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 1.25-250 MDFNY 1.25-250   6.4  8.0  24.0  11.0  4.0  2.00  0.80  Red IZUMI  3# 500
1.5~2.5mm² KFQNM220 16-14 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 2-250 MDFNY 2-250   6.4  8.0  24.5  11.0  4.0  2.50  0.80  Blue IZUMI  4# 500
4~6mm² KFQNM230 12-10 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 5.5-250 MDFNY 5.5-250   6.4  8.0  25.5  13.0  5.0  3.50  0.80  Yellow IZUMI  5# 500







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA W F L B D C Thickness
A.W.G. 22-16 KFQNM210 22-16 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 1.25-250 MDFNY 1.25-250   0.250 0.315 0.945 0.433 0.157 0.079 0.031 Red IZUMI  3# 500
A.W.G. 16~14 KFQNM220 16-14 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 2-250 MDFNY 2-250   0.250 0.315 0.965 0.433 0.157 0.098 0.031 Blue IZUMI  4# 500
A.W.G. 12~10 KFQNM230 12-10 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 5.5-250 MDFNY 5.5-250   0.250 0.315 1.004 0.512 0.197 0.138 0.031 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric W F L B D C Thickness
0.5~1.5mm² KFQNM210 22-16 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 1.25-250 MDFNY 1.25-250   6.4  8.0  24.0  11.0  4.0  2.00  0.80  Red IZUMI  3# 500
1.5~2.5mm² KFQNM220 16-14 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 2-250 MDFNY 2-250   6.4  8.0  24.5  11.0  4.0  2.50  0.80  Blue IZUMI  4# 500
4~6mm² KFQNM230 12-10 AWG Nylon-Fully Insulated Male Quick Disconnectors MDFNY 5.5-250 MDFNY 5.5-250   6.4  8.0  25.5  13.0  5.0  3.50  0.80  Yellow IZUMI  5# 500
