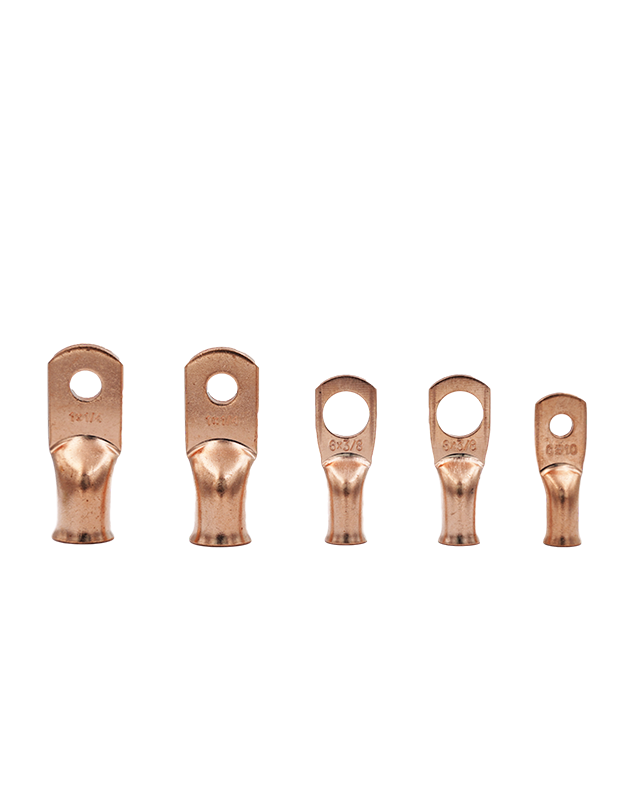

Copper Tubular Lugs (Type AWG)

Copper Tubular Lugs (Type AWG)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,462

Product Details

Spec (American AWG) 8 6 4 2 1 1/0 2/0 3/0 4/0
Spec (JIS AWG) 8 6 4 2 1 1/0 2/0 3/0 4/0
Spec (DIN AWG)
Spec (GB mm2)
Max Current 70 95 125 170 200 230 265 310 360

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 B L D d E
A.W.G. 8 KFLAG10 8 AWG Copper Tubular Lugs (Type AWG) 8#10 8#10 #10 0.201 0.465 1.311 0.280 0.189 0.512 OPT TP-150D 100
A.W.G. 8 KFLAG11 8 AWG Copper Tubular Lugs (Type AWG) 8*1/4 8*1/4 1/4" 0.268 0.465 1.311 0.280 0.189 0.512 OPT TP-150D 100
A.W.G. 8 KFLAG12 8 AWG Copper Tubular Lugs (Type AWG) 8*5/16 8*5/16 5/16" 0.327 0.465 1.311 0.280 0.189 0.512 OPT TP-150D 100
A.W.G. 8 KFLAG13 8 AWG Copper Tubular Lugs (Type AWG) 8*3/8 8*3/8 3/8" 0.409 0.571 1.311 0.280 0.189 0.512 OPT TP-150D 100
A.W.G. 8 KFLAG14 8 AWG Copper Tubular Lugs (Type AWG) 8*1/2 8*1/2 1/2" 0.516 0.669 1.311 0.280 0.189 0.512 OPT TP-150D 100
A.W.G. 6 KFLAG20 6 AWG Copper Tubular Lugs (Type AWG) 6#10 6#10 #10 0.201 0.465 1.469 0.319 0.232 0.591 OPT TP-150D 100
A.W.G. 6 KFLAG21 6 AWG Copper Tubular Lugs (Type AWG) 6*1/4 6*1/4 1/4" 0.268 0.539 1.469 0.319 0.232 0.591 OPT TP-150D 100
A.W.G. 6 KFLAG22 6 AWG Copper Tubular Lugs (Type AWG) 6*5/16 6*5/16 5/16" 0.327 0.539 1.469 0.319 0.232 0.591 OPT TP-150D 100
A.W.G. 6 KFLAG23 6 AWG Copper Tubular Lugs (Type AWG) 6*3/8 6*3/8 3/8" 0.409 0.539 1.469 0.319 0.232 0.591 OPT TP-150D 100
A.W.G. 6 KFLAG24 6 AWG Copper Tubular Lugs (Type AWG) 6*1/2 6*1/2 1/2" 0.516 0.669 1.469 0.319 0.232 0.591 OPT TP-150D 100
A.W.G. 4 KFLAG30 4 AWG Copper Tubular Lugs (Type AWG) 4*1/4 4*1/4 1/4" 0.268 0.543 1.531 0.374 0.287 0.610 OPT TP-150D 100
A.W.G. 4 KFLAG31 4 AWG Copper Tubular Lugs (Type AWG) 4*5/16 4*5/16 5/16" 0.327 0.543 1.531 0.374 0.287 0.610 OPT TP-150D 100
A.W.G. 4 KFLAG32 4 AWG Copper Tubular Lugs (Type AWG) 4*3/8 4*3/8 3/8" 0.409 0.571 1.531 0.374 0.287 0.610 OPT TP-150D 100
A.W.G. 4 KFLAG33 4 AWG Copper Tubular Lugs (Type AWG) 4*1/2 4*1/2 1/2" 0.516 0.669 1.531 0.374 0.287 0.591 OPT TP-150D 100
A.W.G. 2 KFLAG40 2 AWG Copper Tubular Lugs (Type AWG) 2*1/4 2*1/4 1/4" 0.268 0.650 1.618 0.437 0.335 0.630 OPT TP-150D 100
A.W.G. 2 KFLAG41 2 AWG Copper Tubular Lugs (Type AWG) 2*5/16 2*5/16 5/16" 0.327 0.650 1.618 0.437 0.335 0.630 OPT TP-150D 100
A.W.G. 2 KFLAG42 2 AWG Copper Tubular Lugs (Type AWG) 2*3/8 2*3/8 3/8" 0.409 0.650 1.618 0.437 0.335 0.630 OPT TP-150D 100
A.W.G. 2 KFLAG43 2 AWG Copper Tubular Lugs (Type AWG) 2*1/2 2*1/2 1/2" 0.516 0.669 1.618 0.437 0.335 0.602 OPT TP-150D 100
A.W.G. 1 KFLAG50 1 AWG Copper Tubular Lugs (Type AWG) 1*1/4 1*1/4 1/4" 0.268 0.646 1.717 0.461 0.358 0.630 OPT TP-150D 100
A.W.G. 1 KFLAG51 1 AWG Copper Tubular Lugs (Type AWG) 1*5/16 1*5/16 5/16" 0.327 0.646 1.717 0.461 0.358 0.630 OPT TP-150D 100
A.W.G. 1 KFLAG52 1 AWG Copper Tubular Lugs (Type AWG) 1*3/8 1*3/8 3/8" 0.409 0.673 1.717 0.461 0.358 0.630 OPT TP-150D 100
A.W.G. 1 KFLAG53 1 AWG Copper Tubular Lugs (Type AWG) 1*1/2 1*1/2 1/2" 0.516 0.752 1.717 0.461 0.358 0.630 OPT TP-150D 100
A.W.G. 1/0 KFLAG60 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*1/4 1/0*1/4 1/4" 0.268 0.724 1.843 0.512 0.409 0.748 OPT TP-150D 100
A.W.G. 1/0 KFLAG61 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*5/16 1/0*5/16 5/16" 0.327 0.724 1.843 0.512 0.409 0.748 OPT TP-150D 100
A.W.G. 1/0 KFLAG62 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*3/8 1/0*3/8 3/8" 0.409 0.724 1.843 0.512 0.409 0.748 OPT TP-150D 100
A.W.G. 1/0 KFLAG63 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*1/2 1/0*1/2 1/2" 0.516 0.827 1.843 0.512 0.409 0.748 OPT TP-150D 100
A.W.G. 2/0 KFLAG70 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*1/4 2/0*1/4 1/4" 0.268 0.827 2.063 0.559 0.461 0.866 OPT TP-150D 50
A.W.G. 2/0 KFLAG71 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*5/16 2/0*5/16 5/16" 0.327 0.827 2.063 0.559 0.461 0.866 OPT TP-150D 50
A.W.G. 2/0 KFLAG72 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*3/8 2/0*3/8 3/8" 0.409 0.827 2.063 0.559 0.461 0.866 OPT TP-150D 50
A.W.G. 2/0 KFLAG73 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*1/2 2/0*1/2 1/2" 0.516 0.827 2.063 0.559 0.461 0.827 OPT TP-150D 50
A.W.G. 3/0 KFLAG80 3/0 AWG Copper Tubular Lugs (Type AWG) 3/0*5/16 3/0*5/16 5/16" 0.327 0.909 2.201 0.618 0.512 0.886 OPT TP-150D 50
A.W.G. 3/0 KFLAG81 3/0 AWG Copper Tubular Lugs (Type AWG) 3/0*3/8 3/0*3/8 3/8" 0.409 0.909 2.201 0.618 0.512 0.886 OPT TP-150D 50
A.W.G. 3/0 KFLAG82 3/0 AWG Copper Tubular Lugs (Type AWG) 3/0*1/2 3/0*1/2 1/2" 0.516 0.909 2.201 0.618 0.512 0.886 OPT TP-150D 50
A.W.G. 4/0 KFLAG90 4/0 AWG Copper Tubular Lugs (Type AWG) 4/0*5/16 4/0*5/16 5/16" 0.327 1.016 2.382 0.677 0.559 0.945 OPT TP-150D 50
A.W.G. 4/0 KFLAG91 4/0 AWG Copper Tubular Lugs (Type AWG) 4/0*3/8 4/0*3/8 3/8" 0.409 1.016 2.382 0.677 0.559 0.945 OPT TP-150D 50
A.W.G. 4/0 KFLAG92 4/0 AWG Copper Tubular Lugs (Type AWG) 4/0*1/2 4/0*1/2 1/2" 0.516 1.016 2.382 0.677 0.559 0.945 OPT TP-150D 50
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 B L D d E
A.W.G. 8 KFLAG10 8 AWG Copper Tubular Lugs (Type AWG) 8#10 8#10   5.1  11.8  33.3  7.1  4.8  13.0  OPT TP-150D 100
A.W.G. 8 KFLAG11 8 AWG Copper Tubular Lugs (Type AWG) 8*1/4 8*1/4   6.8  11.8  33.3  7.1  4.8  13.0  OPT TP-150D 100
A.W.G. 8 KFLAG12 8 AWG Copper Tubular Lugs (Type AWG) 8*5/16 8*5/16   8.3  11.8  33.3  7.1  4.8  13.0  OPT TP-150D 100
A.W.G. 8 KFLAG13 8 AWG Copper Tubular Lugs (Type AWG) 8*3/8 8*3/8   10.4  14.5  33.3  7.1  4.8  13.0  OPT TP-150D 100
A.W.G. 8 KFLAG14 8 AWG Copper Tubular Lugs (Type AWG) 8*1/2 8*1/2   13.1  17.0  33.3  7.1  4.8  13.0  OPT TP-150D 100
A.W.G. 6 KFLAG20 6 AWG Copper Tubular Lugs (Type AWG) 6#10 6#10   5.1  11.8  37.3  8.1  5.9  15.0  OPT TP-150D 100
A.W.G. 6 KFLAG21 6 AWG Copper Tubular Lugs (Type AWG) 6*1/4 6*1/4   6.8  13.7  37.3  8.1  5.9  15.0  OPT TP-150D 100
A.W.G. 6 KFLAG22 6 AWG Copper Tubular Lugs (Type AWG) 6*5/16 6*5/16   8.3  13.7  37.3  8.1  5.9  15.0  OPT TP-150D 100
A.W.G. 6 KFLAG23 6 AWG Copper Tubular Lugs (Type AWG) 6*3/8 6*3/8   10.4  13.7  37.3  8.1  5.9  15.0  OPT TP-150D 100
A.W.G. 6 KFLAG24 6 AWG Copper Tubular Lugs (Type AWG) 6*1/2 6*1/2   13.1  17.0  37.3  8.1  5.9  15.0  OPT TP-150D 100
A.W.G. 4 KFLAG30 4 AWG Copper Tubular Lugs (Type AWG) 4*1/4 4*1/4   6.8  13.8  38.9  9.5  7.3  15.5  OPT TP-150D 100
A.W.G. 4 KFLAG31 4 AWG Copper Tubular Lugs (Type AWG) 4*5/16 4*5/16   8.3  13.8  38.9  9.5  7.3  15.5  OPT TP-150D 100
A.W.G. 4 KFLAG32 4 AWG Copper Tubular Lugs (Type AWG) 4*3/8 4*3/8   10.4  14.5  38.9  9.5  7.3  15.5  OPT TP-150D 100
A.W.G. 4 KFLAG33 4 AWG Copper Tubular Lugs (Type AWG) 4*1/2 4*1/2   13.1  17.0  38.9  9.5  7.3  15.0  OPT TP-150D 100
A.W.G. 2 KFLAG40 2 AWG Copper Tubular Lugs (Type AWG) 2*1/4 2*1/4   6.8  16.5  41.1  11.1  8.5  16.0  OPT TP-150D 100
A.W.G. 2 KFLAG41 2 AWG Copper Tubular Lugs (Type AWG) 2*5/16 2*5/16   8.3  16.5  41.1  11.1  8.5  16.0  OPT TP-150D 100
A.W.G. 2 KFLAG42 2 AWG Copper Tubular Lugs (Type AWG) 2*3/8 2*3/8   10.4  16.5  41.1  11.1  8.5  16.0  OPT TP-150D 100
A.W.G. 2 KFLAG43 2 AWG Copper Tubular Lugs (Type AWG) 2*1/2 2*1/2   13.1  17.0  41.1  11.1  8.5  15.3  OPT TP-150D 100
A.W.G. 1 KFLAG50 1 AWG Copper Tubular Lugs (Type AWG) 1*1/4 1*1/4   6.8  16.4  43.6  11.7  9.1  16.0  OPT TP-150D 100
A.W.G. 1 KFLAG51 1 AWG Copper Tubular Lugs (Type AWG) 1*5/16 1*5/16   8.3  16.4  43.6  11.7  9.1  16.0  OPT TP-150D 100
A.W.G. 1 KFLAG52 1 AWG Copper Tubular Lugs (Type AWG) 1*3/8 1*3/8   10.4  17.1  43.6  11.7  9.1  16.0  OPT TP-150D 100
A.W.G. 1 KFLAG53 1 AWG Copper Tubular Lugs (Type AWG) 1*1/2 1*1/2   13.1  19.1  43.6  11.7  9.1  16.0  OPT TP-150D 100
A.W.G. 1/0 KFLAG60 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*1/4 1/0*1/4   6.8  18.4  46.8  13.0  10.4  19.0  OPT TP-150D 100
A.W.G. 1/0 KFLAG61 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*5/16 1/0*5/16   8.3  18.4  46.8  13.0  10.4  19.0  OPT TP-150D 100
A.W.G. 1/0 KFLAG62 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*3/8 1/0*3/8   10.4  18.4  46.8  13.0  10.4  19.0  OPT TP-150D 100
A.W.G. 1/0 KFLAG63 1/0 AWG Copper Tubular Lugs (Type AWG) 1/0*1/2 1/0*1/2   13.1  21.0  46.8  13.0  10.4  19.0  OPT TP-150D 100
A.W.G. 2/0 KFLAG70 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*1/4 2/0*1/4   6.8  21.0  52.4  14.2  11.7  22.0  OPT TP-150D 50
A.W.G. 2/0 KFLAG71 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*5/16 2/0*5/16   8.3  21.0  52.4  14.2  11.7  22.0  OPT TP-150D 50
A.W.G. 2/0 KFLAG72 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*3/8 2/0*3/8   10.4  21.0  52.4  14.2  11.7  22.0  OPT TP-150D 50
A.W.G. 2/0 KFLAG73 2/0 AWG Copper Tubular Lugs (Type AWG) 2/0*1/2 2/0*1/2   13.1  21.0  52.4  14.2  11.7  21.0  OPT TP-150D 50
A.W.G. 3/0 KFLAG80 3/0 AWG Copper Tubular Lugs (Type AWG) 3/0*5/16 3/0*5/16   8.3  23.1  55.9  15.7  13.0  22.5  OPT TP-150D 50
A.W.G. 3/0 KFLAG81 3/0 AWG Copper Tubular Lugs (Type AWG) 3/0*3/8 3/0*3/8   10.4  23.1  55.9  15.7  13.0  22.5  OPT TP-150D 50
A.W.G. 3/0 KFLAG82 3/0 AWG Copper Tubular Lugs (Type AWG) 3/0*1/2 3/0*1/2   13.1  23.1  55.9  15.7  13.0  22.5  OPT TP-150D 50
A.W.G. 4/0 KFLAG90 4/0 AWG Copper Tubular Lugs (Type AWG) 4/0*5/16 4/0*5/16   8.3  25.8  60.5  17.2  14.2  24.0  OPT TP-150D 50
A.W.G. 4/0 KFLAG91 4/0 AWG Copper Tubular Lugs (Type AWG) 4/0*3/8 4/0*3/8   10.4  25.8  60.5  17.2  14.2  24.0  OPT TP-150D 50
A.W.G. 4/0 KFLAG92 4/0 AWG Copper Tubular Lugs (Type AWG) 4/0*1/2 4/0*1/2   13.1  25.8  60.5  17.2  14.2  24.0  OPT TP-150D 50
