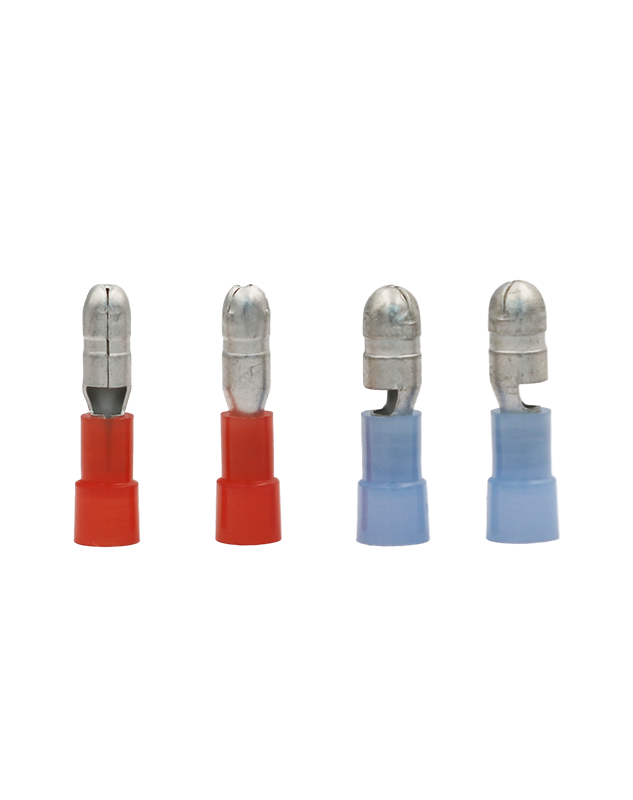

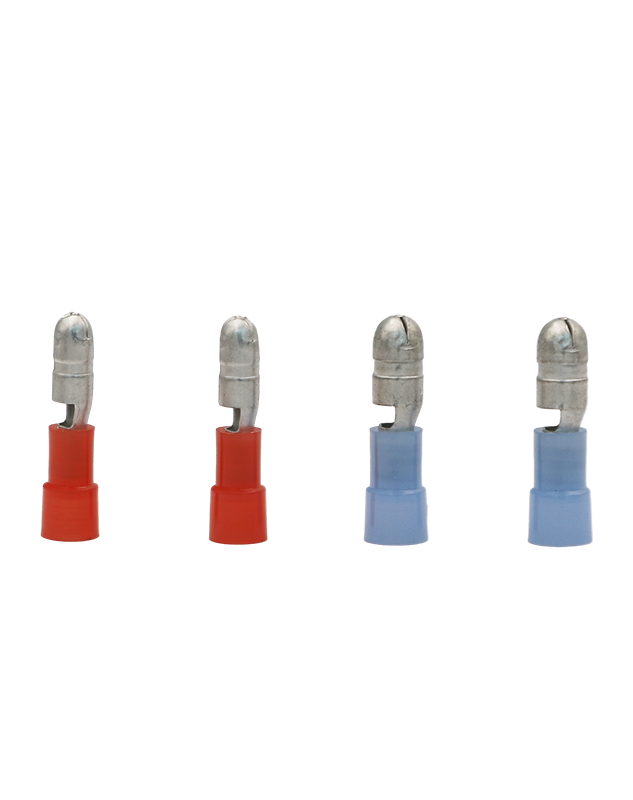

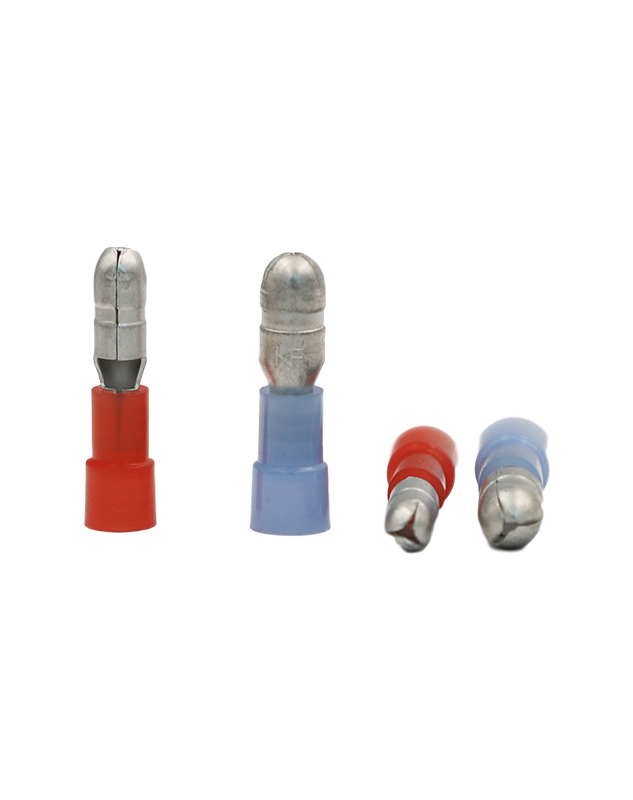

Nylon-Insulated Bullet Male Quick Disconnectors

Nylon-Insulated Bullet Male Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 604

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 10 15 24
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA b f d D H L Thickness
A.W.G. 22-16 KFQNB210 22-16 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 1.25-156 MPNY 1.25-156   0.157 0.335 0.079 0.138 0.413 0.846 0.016 Red IZUMI  3# 1000
A.W.G. 16-14 KFQNB220 16-14 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 2-156 MPNY 2-156   0.157 0.335 0.098 0.177 0.413 0.846 0.016 Blue IZUMI  4# 1000
A.W.G. 16-14 KFQNB221 16-14 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 2-195 MPNY 2-195   0.197 0.335 0.098 0.177 0.413 0.846 0.016 Blue IZUMI  4# 1000
A.W.G. 12-10 KFQNB230 12-10 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 5.5-195 MPNY 5.5-195   0.197 0.335 0.138 0.217 0.531 0.965 0.016 Yellow IZUMI  5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric b f d D H L Thickness
0.5~1.5mm² KFQNB210 22-16 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 1.25-156 MPNY 1.25-156   4.0  8.5  2.0  3.5  10.5  21.5  0.40  Red IZUMI  3# 1000
1.5~2.5mm² KFQNB220 16-14 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 2-156 MPNY 2-156   4.0  8.5  2.5  4.5  10.5  21.5  0.40  Blue IZUMI  4# 1000
1.5~2.5mm² KFQNB221 16-14 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 2-195 MPNY 2-195   5.0  8.5  2.5  4.5  10.5  21.5  0.40  Blue IZUMI  4# 1000
4~6mm² KFQNB230 12-10 AWG Nylon-Insulated Bullet Male Quick Disconnectors MPNY 5.5-195 MPNY 5.5-195   5.0  8.5  3.5  5.5  13.5  24.5  0.40  Yellow IZUMI  5# 1000
