Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Brass,Nylon |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
22-16 | 16-14 |
|
Spec (JIS AWG) |
1.25 | 2 |
|
Spec (DIN AWG) |
1 | 2.5 |
|
Spec (GB mm2) |
0.5-1.5 | 2.5 |
|
Max Current |
10 | 15 |
| Operating Voltage | 600V | |
| Temperature Withstand | 105℃ | |
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||||
| USA | W | F | L | D | Thickness | |||||||

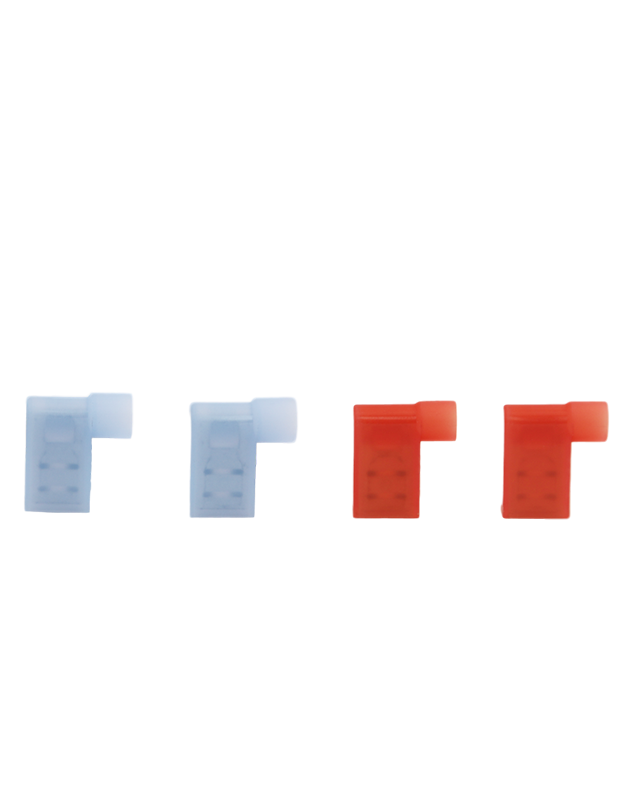

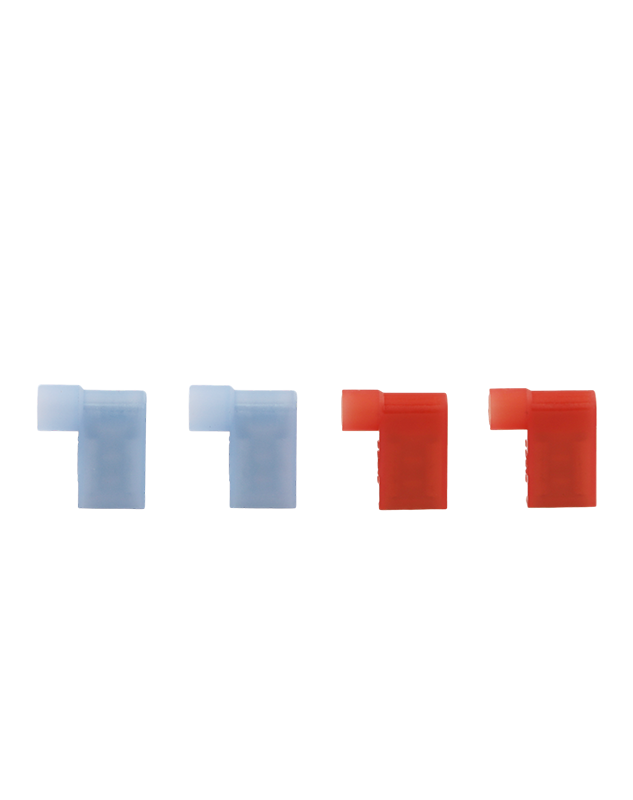

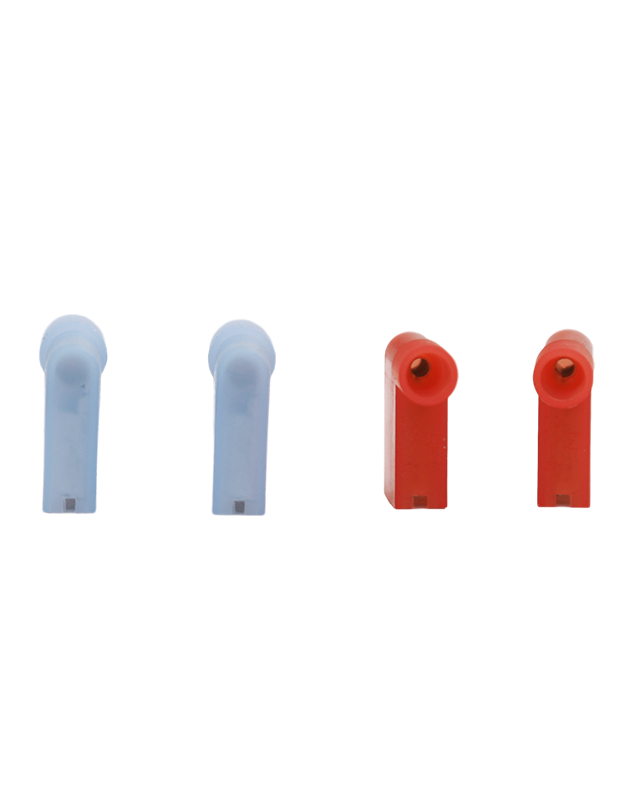

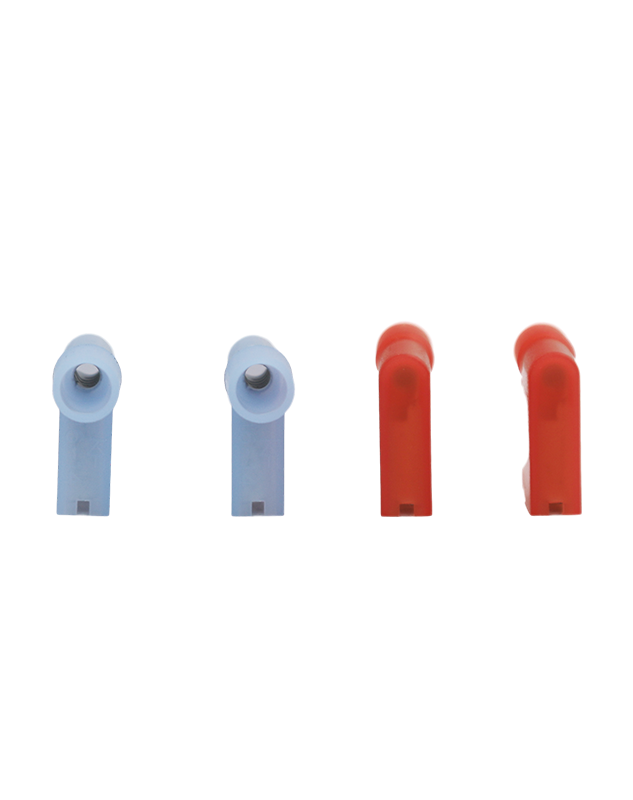

| A.W.G. 22-16 | KFQNFF10 | 22-16 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 1.25-250 | FLDNY 1.25-250 | 0.256 | 0.295 | 0.571 | 0.079 | 0.016 | Red | OPT LY-03FL | 500 | |
| A.W.G. 16-14 | KFQNFF20 | 16-14 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 2-250 | FLDNY 2-250 | 0.256 | 0.295 | 0.650 | 0.098 | 0.016 | Blue | OPT LY-03FL | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||||
| Meric | W | F | L | D | Thickness | |||||||
| 0.5～1.5mm² | KFQNFF10 | 22-16 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 1.25-250 | FLDNY 1.25-250 | 6.5 | 7.5 | 14.5 | 2.0 | 0.40 | Red | OPT LY-03FL | 500 | |
| 1.5～2.5mm² | KFQNFF20 | 16-14 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 2-250 | FLDNY 2-250 | 6.5 | 7.5 | 16.5 | 2.5 | 0.40 | Blue | OPT LY-03FL | 500 | |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | ||||
| USA | W | F | L | D | Thickness | |||||||
| A.W.G. 22-16 | KFQNFF10 | 22-16 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 1.25-250 | FLDNY 1.25-250 | 0.256 | 0.295 | 0.571 | 0.079 | 0.016 | Red | OPT LY-03FL | 500 | |
| A.W.G. 16-14 | KFQNFF20 | 16-14 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 2-250 | FLDNY 2-250 | 0.256 | 0.295 | 0.650 | 0.098 | 0.016 | Blue | OPT LY-03FL | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | ||||
| Meric | W | F | L | D | Thickness | |||||||
| 0.5～1.5mm² | KFQNFF10 | 22-16 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 1.25-250 | FLDNY 1.25-250 | 6.5 | 7.5 | 14.5 | 2.0 | 0.40 | Red | OPT LY-03FL | 500 | |
| 1.5～2.5mm² | KFQNFF20 | 16-14 AWG Nylon-Insulated Flag Quick Disconnectors FLDNY 2-250 | FLDNY 2-250 | 6.5 | 7.5 | 16.5 | 2.5 | 0.40 | Blue | OPT LY-03FL | 500 | |
