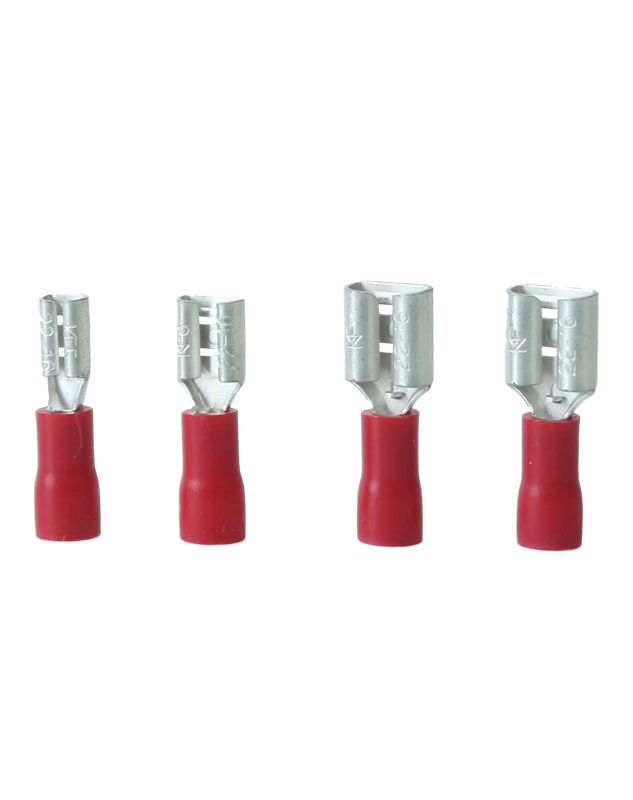

Vinyl-Insulated Female Quick Disconnectors

Vinyl-Insulated Female Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,120

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  10 15 24
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L D d H Thickness
A.W.G. 22-16 KFQVF110 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-110(5） FDD1.25-110(5）   0.138 0.748 0.138 0.079 0.394 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF111 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-110(8） FDD1.25-110(8）   0.138 0.748 0.138 0.079 0.394 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF112 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-187(5） FDD1.25-187(5）   0.197 0.748 0.138 0.079 0.394 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF113 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-187(8） FDD1.25-110(8）   0.197 0.748 0.138 0.079 0.394 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF114 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-205 FDD1.25-205   0.217 0.748 0.138 0.079 0.394 0.014 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF115 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-250 FDD1.25-250   0.256 0.787 0.138 0.079 0.394 0.016 Red IZUMI  3# 1000
A.W.G. 22-16 KFQVF116 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-312 FDD1.25-312   0.315 0.925 0.138 0.079 0.394 0.016 Red IZUMI  3# 1000

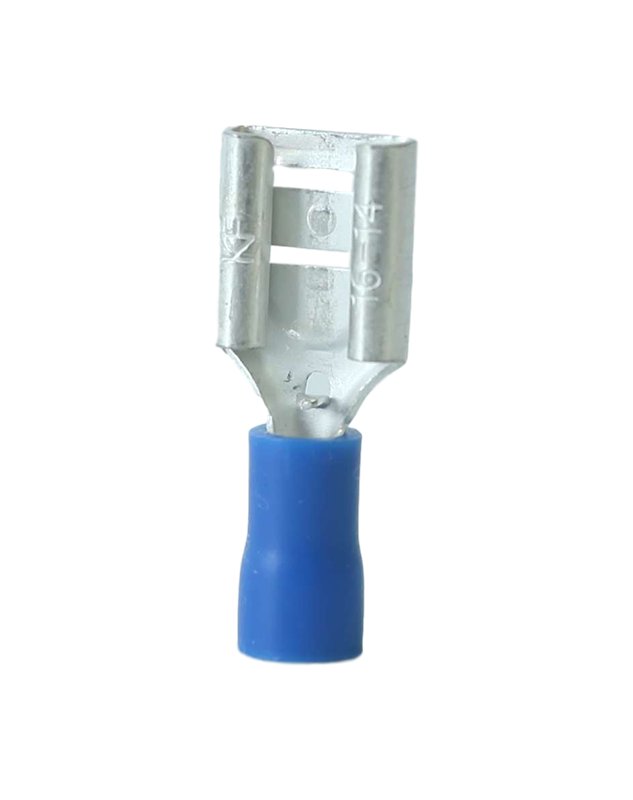

A.W.G. 16～14 KFQVF120 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-110(5) FDD2-110(5)   0.138 0.728 0.177 0.098 0.394 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQVF121 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-110(8) FDD2-110(8)   0.138 0.728 0.177 0.098 0.433 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQVF122 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-187(5) FDD2-187(5)   0.197 0.748 0.177 0.098 0.472 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQVF123 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-187(8) FDD2-187(8)   0.197 0.748 0.177 0.098 0.512 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQVF124 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-205 FDD2-205   0.217 0.748 0.177 0.098 0.551 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQVF125 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-250 FDD2-250   0.217 0.787 0.177 0.098 0.591 0.016 Blue IZUMI  4# 1000
A.W.G. 16～14  KFQVF126 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-312 FDD2-312   0.315 0.925 0.177 0.098 0.630 0.016 Blue IZUMI  4# 1000

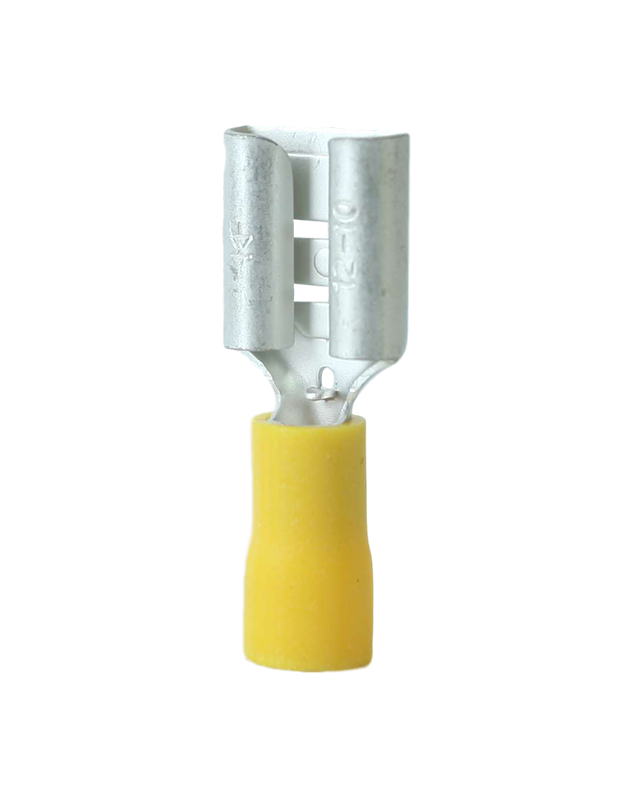

A.W.G. 12～10 KFQVF130 12-10 AWG Vinyl-Insulated Female Quick Disconnectors FDD5.5-250 FDD5.5-250   0.256 0.906 0.217 0.138 0.512 0.016 Yellow IZUMI  5# 1000
A.W.G. 12～10 KFQVF131 12-10 AWG Vinyl-Insulated Female Quick Disconnectors FDD5.5-312 FDD5.5-312   0.315 1.043 0.217 0.138 0.512 0.016 Yellow IZUMI  5# 500
A.W.G. 12～10 KFQVF132 12-10 AWG Vinyl-Insulated Female Quick Disconnectors FDD5.5-375 FDD5.5-375   0.394 1.142 0.217 0.138 0.512 0.020 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L D d H Thickness
0.5～1.5mm² KFQVF110 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-110(5） FDD1.25-110(5）   3.5  19.0  3.5  2.0  10.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF111 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-110(8） FDD1.25-110(8）   3.5  19.0  3.5  2.0  10.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF112 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-187(5） FDD1.25-187(5）   5.0  19.0  3.5  2.0  10.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF113 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-187(8） FDD1.25-110(8）   5.0  19.0  3.5  2.0  10.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF114 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-205 FDD1.25-205   5.5  19.0  3.5  2.0  10.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF115 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-250 FDD1.25-250   6.5  20.0  3.5  2.0  10.0  0.4  Red IZUMI  3# 1000
0.5～1.5mm² KFQVF116 22-16 AWG Vinyl-Insulated Female Quick Disconnectors FDD1.25-312 FDD1.25-312   8.0  23.5  3.5  2.0  10.0  0.4  Red IZUMI  3# 1000
1.5～2.5mm² KFQVF120 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-110(5) FDD2-110(5)   3.5  18.5  4.5  2.5  10.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF121 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-110(8) FDD2-110(8)   3.5  18.5  4.5  2.5  11.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF122 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-187(5) FDD2-187(5)   5.0  19.0  4.5  2.5  12.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF123 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-187(8) FDD2-187(8)   5.0  19.0  4.5  2.5  13.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF124 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-205 FDD2-205   5.5  19.0  4.5  2.5  14.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF125 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-250 FDD2-250   5.5  20.0  4.5  2.5  15.0  0.4  Blue IZUMI  4# 1000
1.5～2.5mm² KFQVF126 16-14 AWG Vinyl-Insulated Female Quick Disconnectors FDD2-312 FDD2-312   8.0  23.5  4.5  2.5  16.0  0.4  Blue IZUMI  4# 1000
4～6mm² KFQVF130 12-10 AWG Vinyl-Insulated Female Quick Disconnectors FDD5.5-250 FDD5.5-250   6.5  23.0  5.5  3.5  13.0  0.4  Yellow IZUMI  5# 1000
4～6mm² KFQVF131 12-10 AWG Vinyl-Insulated Female Quick Disconnectors FDD5.5-312 FDD5.5-312   8.0  26.5  5.5  3.5  13.0  0.4  Yellow IZUMI  5# 500
4～6mm² KFQVF132 12-10 AWG Vinyl-Insulated Female Quick Disconnectors FDD5.5-375 FDD5.5-375   10.0  29.0  5.5  3.5  13.0  0.5  Yellow IZUMI  5# 500
