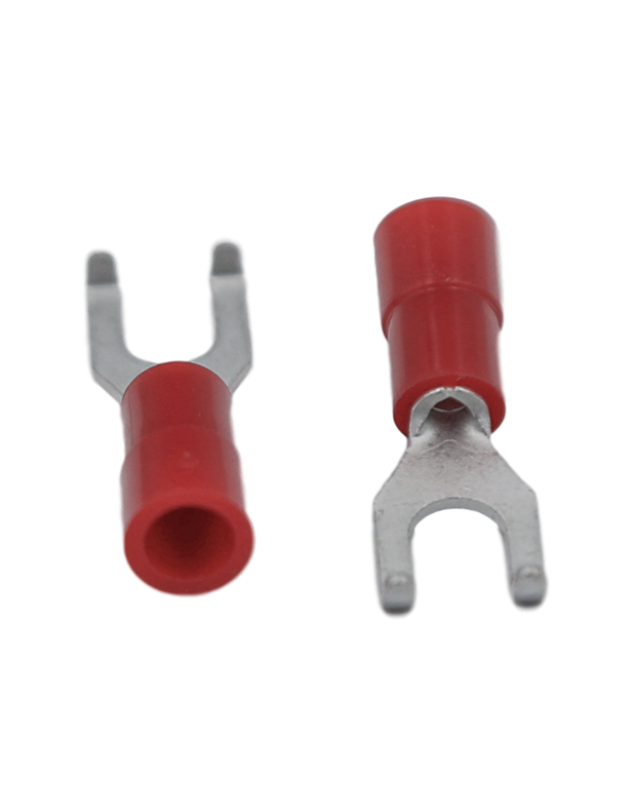

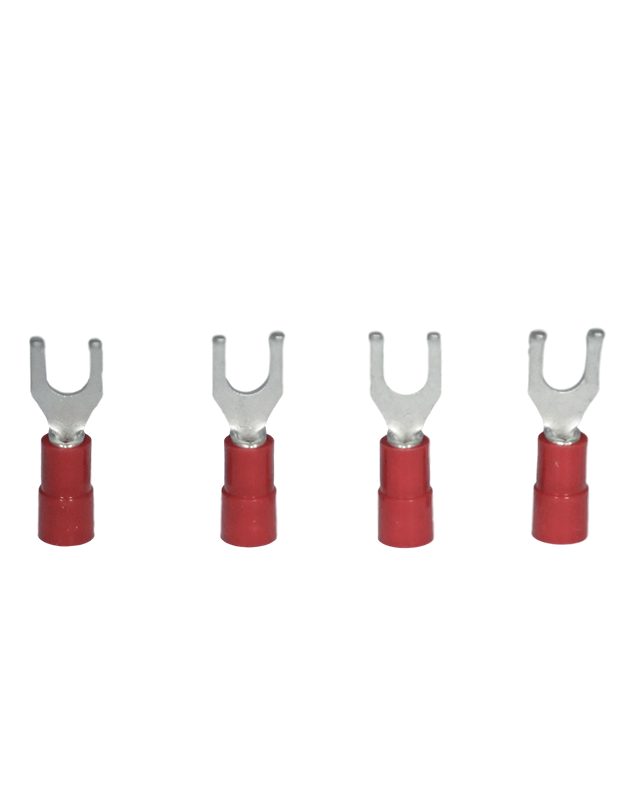

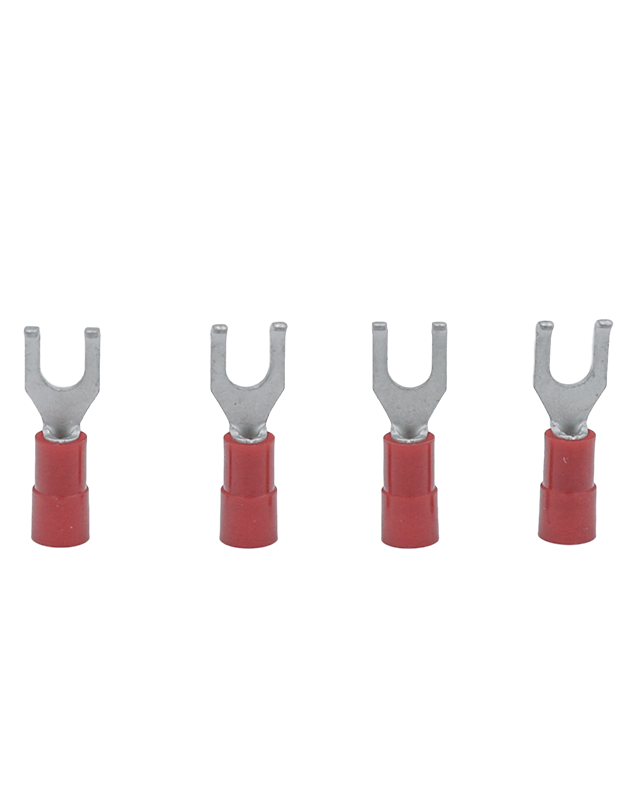

Nylon-Insulated Single Crimp Flange Spade Terminals

Nylon-Insulated Single Crimp Flange Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 389

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 19 27 48
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L F H D Thickness
A.W.G. 22-16 KFSN210 22-16 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSNY1.25-3.5 #6 0.146 0.256 0.866 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN211 22-16 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSNY1.25-4 #8 0.169 0.276 0.866 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSN212 22-16 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSNY1.25-5 #10 0.209 0.374 0.866 0.256 0.413 0.157 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSN220 16-14 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSNY2-3.5 #6 0.146 0.276 0.866 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN221 16-14 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSNY2-4 #8 0.169 0.276 0.866 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSN222 16-14 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSNY2-5 #10 0.209 0.374 0.866 0.256 0.413 0.177 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSN230 12-10 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSNY5.5-3.5 #6 0.146 0.335 1.024 0.295 0.513 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN231 12-10 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSNY5.5-4 #8 0.169 0.335 1.024 0.295 0.513 0.276 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSN232 12-10 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSNY5.5-5 #10 0.209 0.354 1.024 0.295 0.513 0.276 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L F H D Thickness
0.5~1.5mm² KFSN210 22-16 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSNY1.25-3.5 3.5  3.7 6.5 22.0 6.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN211 22-16 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSNY1.25-4 4.0  4.3 7.0 22.0 6.5 10.5 4.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSN212 22-16 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSNY1.25-5 5.0  5.3 9.5 22.0 6.5 10.5 4.0 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSN220 16-14 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSNY2-3.5 3.5  3.7 7.0 22.0 6.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN221 16-14 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSNY2-4 4.0  4.3 7.0 22.0 6.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
1.5~2.5mm² KFSN222 16-14 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSNY2-5 5.0  5.3 9.5 22.0 6.5 10.5 4.5 0.80 Blue IZUMI 4# 1000
4.0~6.0mm² KFSN230 12-10 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSNY5.5-3.5 3.5  3.7 8.5 26.0 7.5 13.5 7.0 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN231 12-10 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSNY5.5-4 4.0  4.3 8.5 26.0 7.5 13.5 7.0 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSN232 12-10 AWG Nylon-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSNY5.5-5 5.0  5.3 9.0 26.0 7.5 13.5 7.0 1.0 Yellow IZUMI 5# 1000
