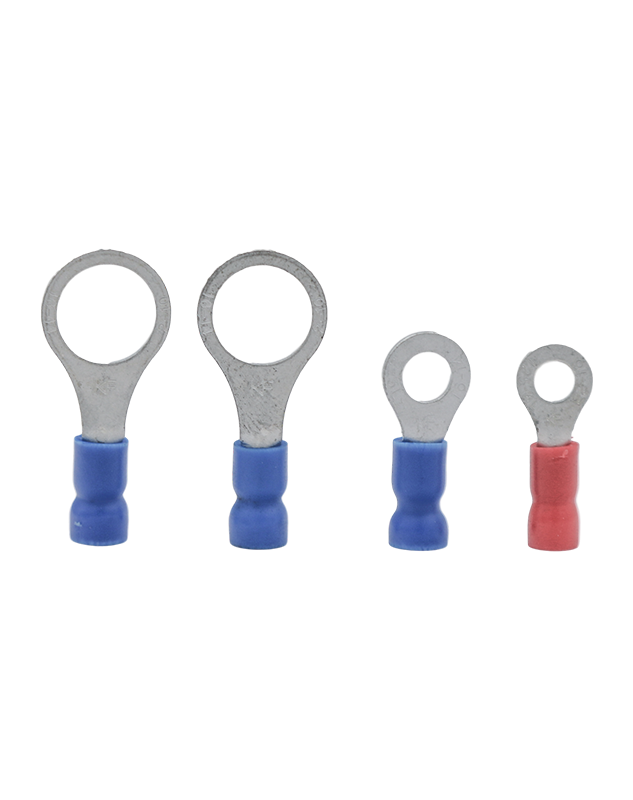

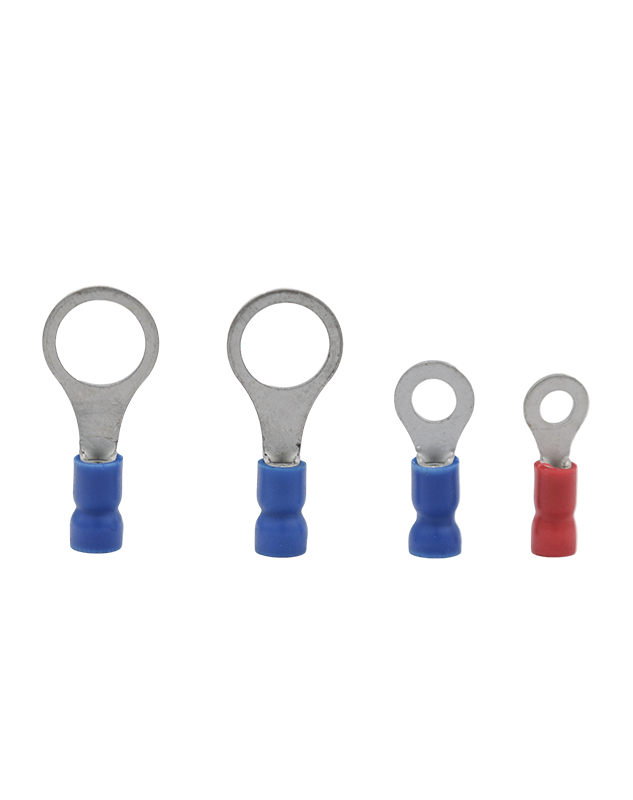

Vinyl-Insulated Single Crimp(Easy Entry)Ring Terminals

Vinyl-Insulated Single Crimp(Easy Entry)Ring Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 625

Product Details

Spec (American AWG)

22-16

16-1 4

14-12

12-10

Spec (JIS AWG)

1.25

2

3.5

5.5

Spec (DIN AWG)

1

2.5



4.0-6.0

Spec (GB mm2)

0.5-1.5

2.5

4

6

Max Current

19

27

37

48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B F L H D T
A.W.G. 22-16 KFSE010 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-3 RVE1.25-3 #4 0.126 0.217  0.197  0.728  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE011 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-3.5S RVES1.25-3.5 #6 0.146 0.217  0.197  0.728  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE012 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-3.5M RVEM1.25-3.5 #6 0.146 0.256  0.236  0.807  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE013 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-4S RVES1.25-4 #8 0.169 0.256  0.236  0.807  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE014 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-4L RVEL1.25-4 #8 0.169 0.315  0.276  0.866  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE015 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-5 RVE1.25-5 #10 0.209 0.315  0.276  0.866  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE016 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-5L RVEL1.25-5 #10 0.209 0.394  0.315  0.945  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE017 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-6S RVES1.25-6 1/4" 0.256 0.394  0.315  0.945  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE018 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-6 RVE1.25-6 1/4" 0.256 0.453  0.433  1.102  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSE019 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-8 RVE1.25-8 5/16" 0.335 0.453  0.433  1.102  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE01A 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-10 RVE1.25-10 3/8" 0.413 0.531  0.551  1.240  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSE01B 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-12 RVE1.25-12 1/2" 0.512 0.748  0.551  1.437  0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 16-14 KFSE020 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-3 RVE2-3 #4 0.126 0.256  0.177  0.768  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE021 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-3.5S RVES2-3.5 #6 0.146 0.256  0.177  0.768  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE022 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-3.5M RVEM2-3.5 #6 0.146 0.256  0.236  0.827  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE023 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-4S RVES2-4 #8 0.169 0.256  0.236  0.827  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE024 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-4L RVEL2-4 #8 0.169 0.335  0.315  0.925  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE025 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-5S RVES2-5 #10 0.209 0.335  0.315  0.925  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE026 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-5L RVEL2-5 #10 0.209 0.374  0.295  0.925  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE027 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-6 RVE2-6 1/4" 0.256 0.472  0.433  1.122  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE028 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-8 RVE2-8 5/16" 0.335 0.472  0.433  1.122  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE029 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-10 RVE2-10 3/8" 0.413 0.531  0.551  1.260  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14 KFSE02A 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-12 RVE2-12 1/2" 0.512 0.748  0.630  1.457  0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 14-12 KFSE030 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-4 RVE3.5-4 #8 0.169 0.315  0.315  1.024  0.511  0.236  0.039  Black IZUMI 5# 1000
A.W.G. 14-12 KFSE031 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-5S RVES3.5-5 #10 0.209 0.315  0.315  1.024  0.511  0.236  0.039  Black IZUMI 5# 1000
A.W.G. 14-12 KFSE032 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-5L RVEL3.5-5 #10 0.209 0.472  0.374  1.161  0.511  0.236  0.039  Black IZUMI 5# 1000
A.W.G. 14-12 KFSE033 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-6 RVE3.5-6 1/4" 0.256 0.472  0.374  1.161  0.511  0.236  0.039  Black IZUMI 5# 1000
A.W.G. 14-12 KFSE034 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-8 RVE3.5-8 5/16" 0.335 0.591  0.531  1.378  0.511  0.236  0.039  Black IZUMI 5# 1000
A.W.G. 14-12 KFSE035 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-10 RVE3.5-10 3/8" 0.413 0.591  0.531  1.378  0.511  0.236  0.039  Black IZUMI 5# 1000
A.W.G. 14-12 KFSE036 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-12 RVE3.5-12 1/2" 0.512 0.787  0.610  1.555  0.511  0.236  0.039  Black IZUMI 5# 1000
A.W.G. 12-10 KFSE040 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-3.5 RVE5.5-3.5 #6 0.146 0.276  0.236  0.925  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE041 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-4S RVES5.5-4 #8 0.169 0.276  0.236  0.925  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE042 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-4L RVEL5.5-4 #8 0.169 0.374  0.315  1.063  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE043 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-5 RVE5.5-5 #10 0.209 0.374  0.315  1.063  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE044 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-6 RVE5.5-6 1/4" 0.256 0.472  0.413  1.201  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE045 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-8 RVE5.5-8 5/16" 0.335 0.591  0.531  1.370  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE046 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-10 RVE5.5-10 3/8" 0.413 0.591  0.531  1.370  0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSE047 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-12 RVE5.5-12 1/2" 0.512 0.748  0.630  1.555  0.511  0.256  0.039  Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B F L H D T
0.5~1.5mm²  KFSE010 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-3 RVE1.25-3 3 3.2  5.5  5.0  18.5  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE011 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-3.5S RVES1.25-3.5 3.5 3.7  5.5  5.0  18.5  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm²  KFSE012 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-3.5M RVEM1.25-3.5 3.5 3.7  6.5  6.0  20.5  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm²  KFSE013 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-4S RVES1.25-4 4 4.3  6.5  6.0  20.5  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE014 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-4L RVEL1.25-4 4 4.3  8.0  7.0  22.0  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE015 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-5 RVE1.25-5 5 5.3  8.0  7.0  22.0  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE016 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-5L RVEL1.25-5 5 5.3  10.0  8.0  24.0  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE017 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-6S RVES1.25-6 6 6.5  10.0  8.0  24.0  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE018 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-6 RVE1.25-6 6 6.5  11.5  11.0  28.0  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE019 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-8 RVE1.25-8 8 8.5  11.5  11.0  28.0  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE01A 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-10 RVE1.25-10 10 10.5  13.5  14.0  31.5  11.0  4.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSE01B 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals1.25-12 RVE1.25-12 12 13.0  19.0  14.0  36.5  11.0  4.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSE020 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-3 RVE2-3 3 3.2  6.5  4.5  19.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE021 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-3.5S RVES2-3.5 3.5 3.7  6.5  4.5  19.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE022 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-3.5M RVEM2-3.5 3.5 3.7  6.5  6.0  21.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE023 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-4S RVES2-4 4 4.3  6.5  6.0  21.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE024 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-4L RVEL2-4 4 4.3  8.5  8.0  23.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE025 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-5S RVES2-5 5 5.3  8.5  8.0  23.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE026 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-5L RVEL2-5 5 5.3  9.5  7.5  23.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE027 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-6 RVE2-6 6 6.5  12.0  11.0  28.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE028 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-8 RVE2-8 8 8.5  12.0  11.0  28.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE029 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-10 RVE2-10 10 10.5  13.5  14.0  32.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE02A 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals2-12 RVE2-12 12 13.0  19.0  16.0  37.0  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE030 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-4 RVE3.5-4 4 4.3  8.0  8.0  26.0  14.0  6.0  1.0  Black IZUMI 5# 1000
1.5~2.5mm² KFSE031 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-5S RVES3.5-5 5 5.3  8.0  8.0  26.0  14.0  6.0  1.0  Black IZUMI 5# 1000
1.5~2.5mm² KFSE032 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-5L RVEL3.5-5 5 5.3  12.0  9.5  29.5  14.0  6.0  1.0  Black IZUMI 5# 1000
1.5~2.5mm² KFSE033 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-6 RVE3.5-6 6 6.5  12.0  9.5  29.5  14.0  6.0  1.0  Black IZUMI 5# 1000
1.5~2.5mm² KFSE034 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-8 RVE3.5-8 8 8.5  15.0  13.5  35.0  14.0  6.0  1.0  Black IZUMI 5# 1000
1.5~2.5mm² KFSE035 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-10 RVE3.5-10 10 10.5  15.0  13.5  35.0  14.0  6.0  1.0  Black IZUMI 5# 1000
1.5~2.5mm² KFSE036 14-12AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals3.5-12 RVE3.5-12 12 13.0  20.0  15.5  39.5  14.0  6.0  1.0  Black IZUMI 5# 1000
4.0~6.0mm² KFSE040 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-3.5 RVE5.5-3.5 3.5 3.7  7.0  6.0  23.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE041 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-4S RVES5.5-4 4 4.3  7.0  6.0  23.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE042 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-4L RVEL5.5-4 4 4.3  9.5  8.0  27.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE043 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-5 RVE5.5-5 5 5.3  9.5  8.0  27.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE044 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-6 RVE5.5-6 6 6.5  12.0  10.5  30.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE045 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-8 RVE5.5-8 8 8.5  15.0  13.5  34.8  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE046 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-10 RVE5.5-10 10 10.5  15.0  13.5  34.8  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE047 12-10AWG Vinyl-Insulated Single Crimp (Easy Entry) Ring Terminals5.5-12 RVE5.5-12 12 13.0  19.0  16.0  39.5  14.0  6.5  1.0  Yellow IZUMI 5# 1000
