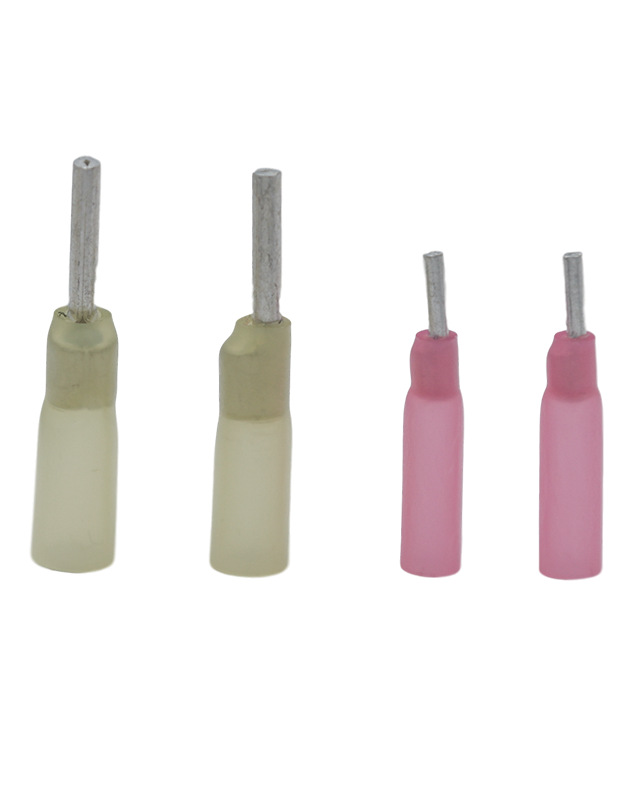

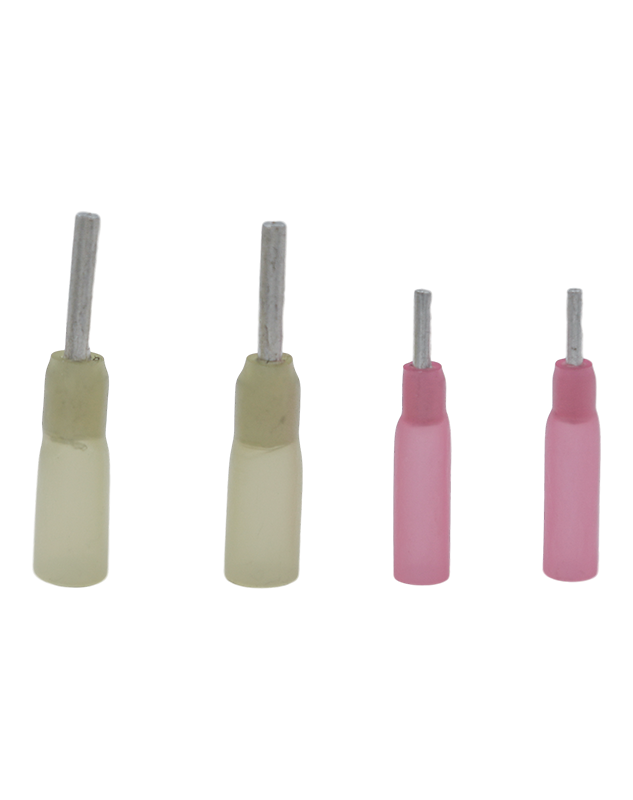

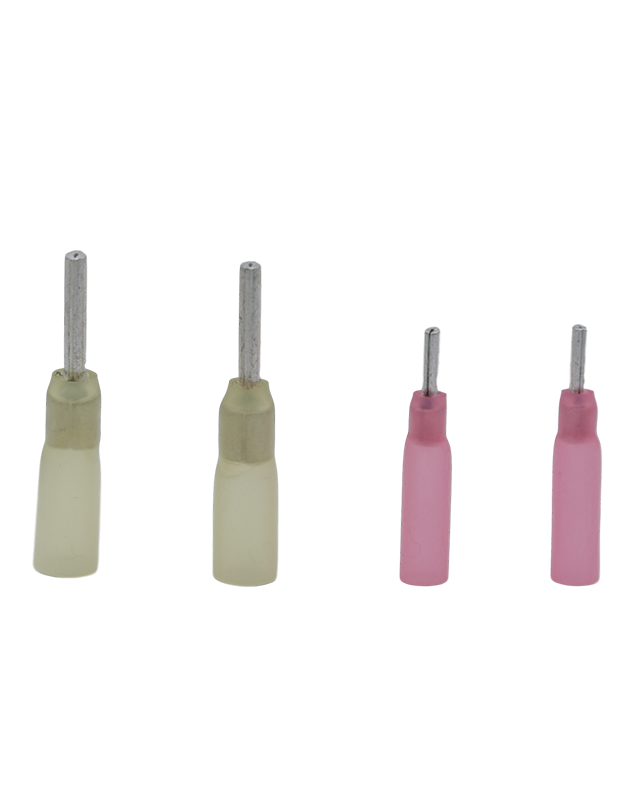

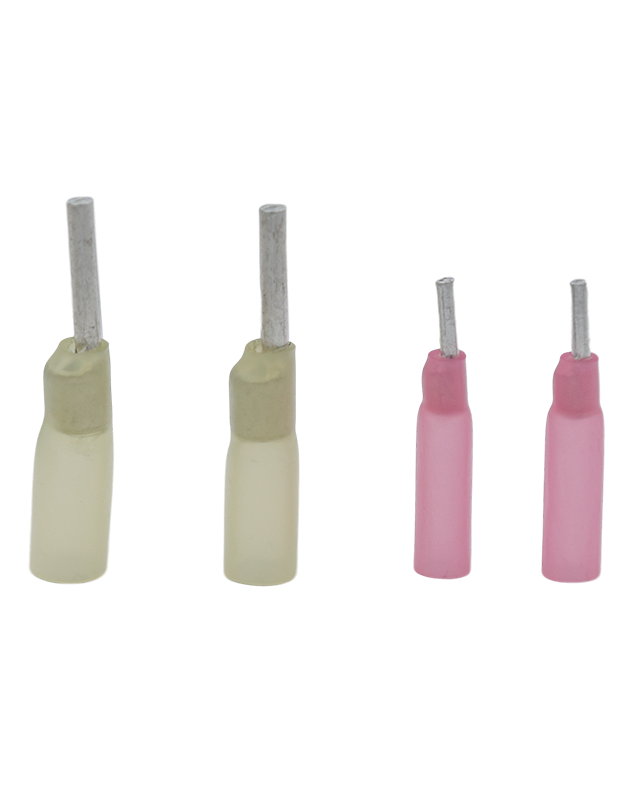

Heat Shrink-Insulated Single Crimp Pin Terminals

Heat Shrink-Insulated Single Crimp Pin Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 722

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA F D L Thickness
A.W.G. 22-16 KFSH410 22-16 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 1.25-10 PTH1.25-10 3/8" 0.079 0.197 1.260 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH411 22-16 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 1.25-12 PTH1.25-12 1/2" 0.079 0.197 1.339 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH412 22-16 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 1.25-18 PTH1.25-18 11/16" 0.079 0.197 1.575 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH420 16-14 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 2-10 PTH2-10 3/8" 0.079 0.236 1.260 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH421 16-14 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 2-12 PTH2-12 1/2" 0.079 0.236 1.339 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH422 16-14 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 2-18 PTH2-18 11/16" 0.079 0.236 1.575 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH430 12-10 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 5.5-13 PTH5.5-13   0.118 0.256 1.417 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH431 12-10 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 5.5-18 PTH5.5-18 11/16" 0.118 0.256 1.614 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric F D L Thickness
0.5~1.5mm² KFSH410 22-16 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 1.25-10 PTH1.25-10 10.0  2.0  5.0  32.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH411 22-16 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 1.25-12 PTH1.25-12 12.0  2.0  5.0  34.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH412 22-16 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 1.25-18 PTH1.25-18 18.0  2.0  5.0  40.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSH420 16-14 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 2-10 PTH2-10 10.0  2.0  6.0  32.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH421 16-14 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 2-12 PTH2-12 12.0  2.0  6.0  34.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH422 16-14 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 2-18 PTH2-18 18.0  2.0  6.0  40.0  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSH430 12-10 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 5.5-13 PTH5.5-13 13.0  3.0  6.5  36.0  1.00  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH431 12-10 AWG Heat Shrink-Insulated Single Crimp Pin Terminals 5.5-18 PTH5.5-18 18.0  3.0  6.5  41.0  1.00  Yellow IZUMI 5# 1000
