Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Copper,PE |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
22-16 | 16-14 | 12-10 |
|
Spec (JIS AWG) |
1.25 | 2 | 5.5 |
|
Spec (DIN AWG) |
1 | 2.5 | 4.0-6.0 |
|
Spec (GB mm2) |
0.5-1.5 | 2.5 | 6 |
|
Max Current |
19 | 27 | 48 |
| Operating Voltage | 600V | ||
| Heat Shrinkable Temperature | 150℃ | ||
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||
| USA | d2 | W | L | Thickness | |||||||

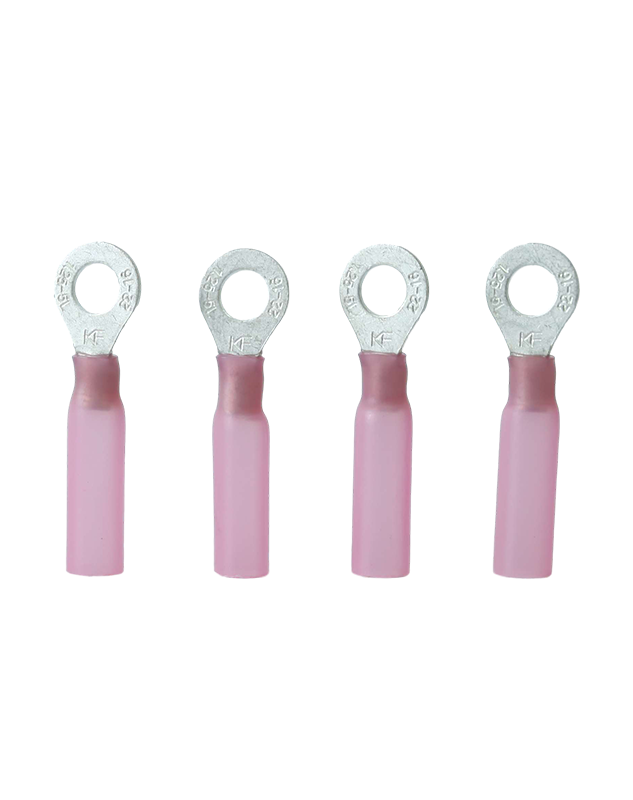

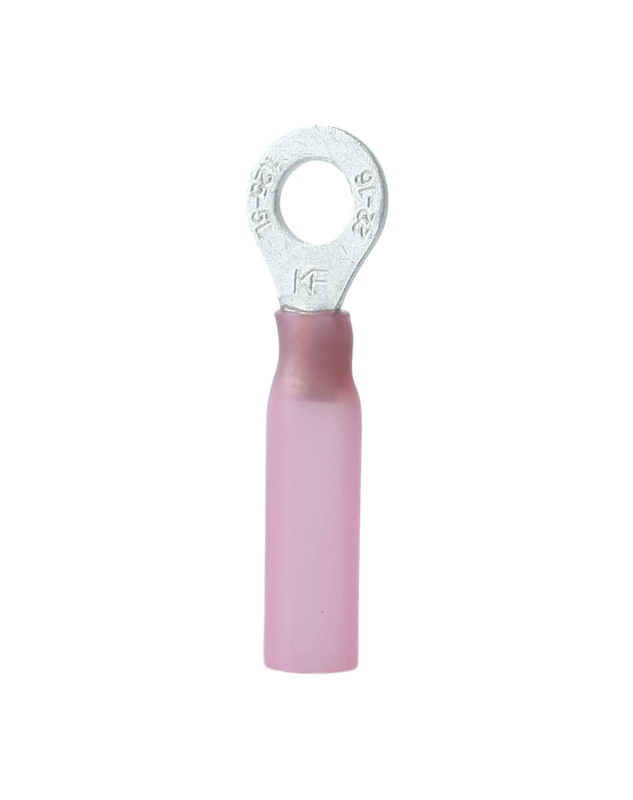

| A.W.G. 22-16 | KFSH110 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3 | RHB1.25-3 | #4 | 0.126 | 0.217 | 1.161 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH111 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5S | RHBS1.25-3.5 | #6 | 0.146 | 0.217 | 1.161 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH112 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5M | RHBM1.25-3.5 | #6 | 0.146 | 0.256 | 1.240 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH113 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4S | RHBS1.25-4 | #8 | 0.169 | 0.256 | 1.240 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH114 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4L | RHBL1.25-4 | #8 | 0.169 | 0.315 | 1.299 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH115 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5 | RHB1.25-5 | #10 | 0.209 | 0.315 | 1.299 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH116 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5L | RHBL1.25-5 | #10 | 0.209 | 0.394 | 1.378 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH117 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6S | RHBS1.25-6 | 1/4" | 0.256 | 0.394 | 1.378 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH118 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6 | RHB1.25-6 | 1/4" | 0.256 | 0.453 | 1.535 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH119 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-8 | RHB1.25-8 | 5/16" | 0.335 | 0.453 | 1.535 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH11A | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-10 | RHB1.25-10 | 3/8" | 0.413 | 0.531 | 1.673 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH11B | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-12 | RHB1.25-12 | 1/2" | 0.512 | 0.748 | 1.870 | 0.030 | Red | IZUMI 3# | 500 |

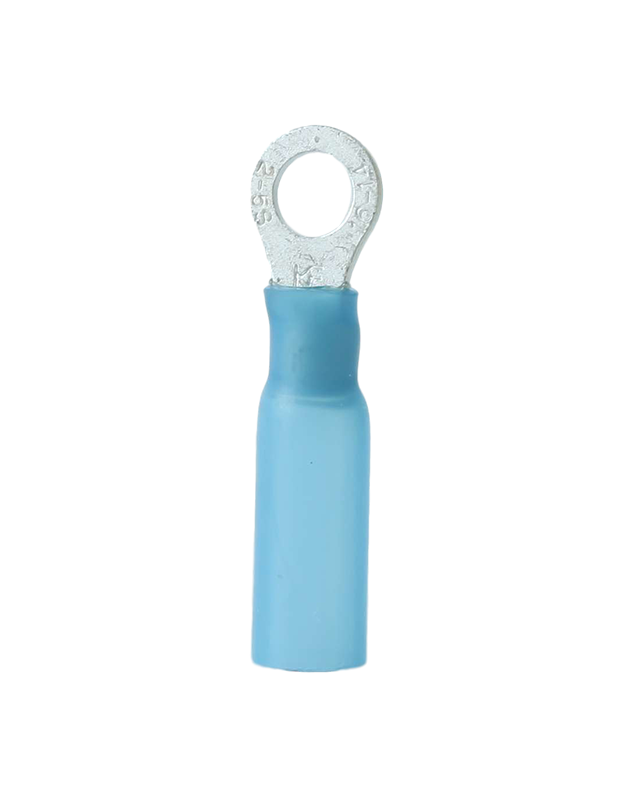

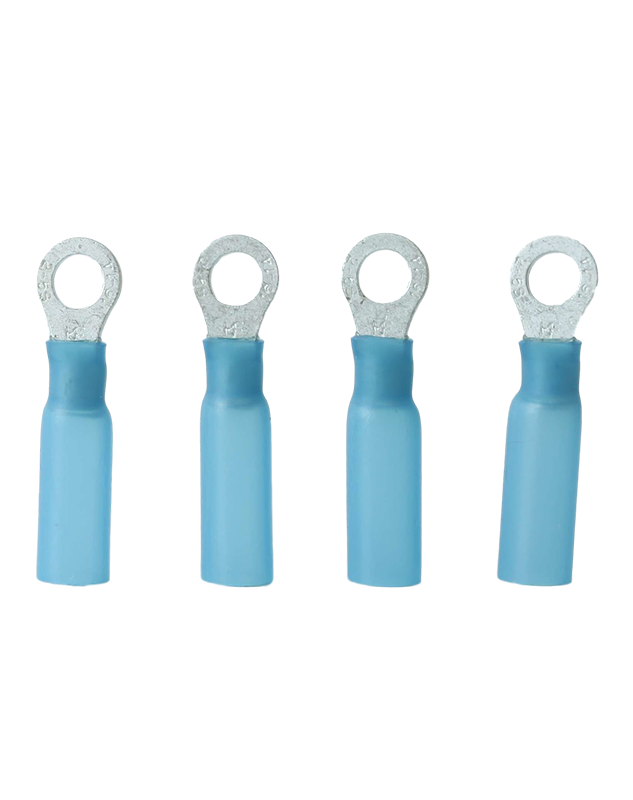

| A.W.G. 16-14 | KFSH120 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3 | RHB2-3 | #4 | 0.126 | 0.256 | 1.181 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH121 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5S | RHBS2-3.5 | #6 | 0.146 | 0.256 | 1.181 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH122 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5M | RHBM2-3.5 | #6 | 0.146 | 0.256 | 1.240 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH123 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4S | RHBS2-4 | #8 | 0.169 | 0.256 | 1.240 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH124 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4L | RHBL2-4 | #8 | 0.169 | 0.335 | 1.339 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH125 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5S | RHBS2-5 | #10 | 0.209 | 0.335 | 1.339 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH126 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5L | RHBL2-5 | #10 | 0.209 | 0.374 | 1.339 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH127 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-6 | RHB2-6 | 1/4" | 0.256 | 0.472 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH128 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-8 | RHB2-8 | 5/16" | 0.335 | 0.472 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH129 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-10 | RHB2-10 | 3/8" | 0.413 | 0.531 | 1.673 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH12A | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-12 | RHB2-12 | 1/2" | 0.512 | 0.748 | 1.870 | 0.031 | Blue | IZUMI 4# | 500 |

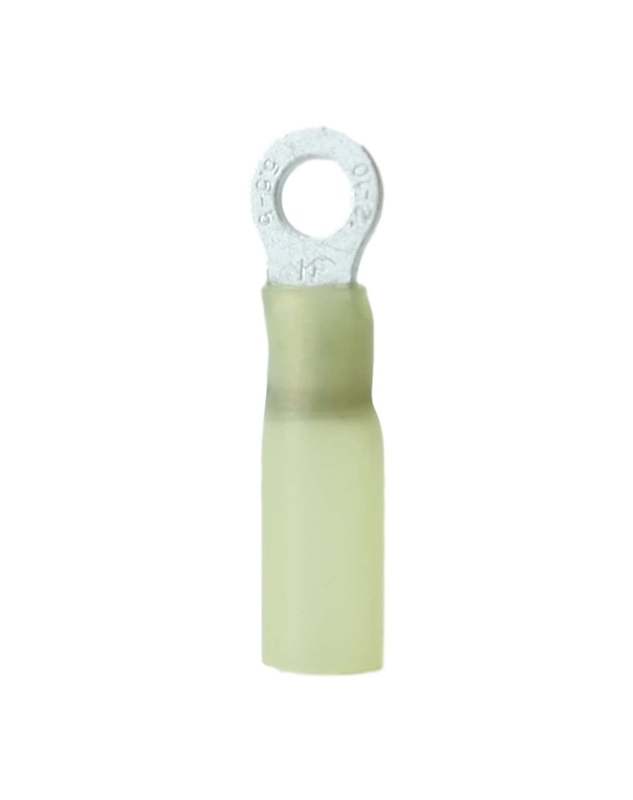

| A.W.G. 12-10 | KFSH130 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-3.5 | RHB5.5-3.5 | #6 | 0.146 | 0.276 | 1.280 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH131 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4S | RHBS5.5-4 | #8 | 0.169 | 0.276 | 1.280 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH132 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4L | RHBL5.5-4 | #8 | 0.169 | 0.374 | 1.417 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH133 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-5 | RHB5.5-5 | #10 | 0.209 | 0.374 | 1.417 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH134 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-6 | RHB5.5-6 | 1/4" | 0.256 | 0.472 | 1.555 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSH135 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-8 | RHB5.5-8 | 5/16" | 0.335 | 0.591 | 1.724 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSH136 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-10 | RHB5.5-10 | 3/8" | 0.413 | 0.591 | 1.724 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSH137 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-12 | RHB5.5-12 | 1/2" | 0.512 | 0.748 | 1.909 | 0.039 | Yellow | IZUMI 5# | 500 |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |||
| Meric | d2 | W | L | Thickness | |||||||
| 0.5~1.5mm² | KFSH110 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3 | RHB1.25-3 | 3.0 | 3.2 | 5.5 | 29.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH111 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5S | RHBS1.25-3.5 | 3.5 | 3.7 | 5.5 | 29.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH112 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5M | RHBM1.25-3.5 | 3.5 | 3.7 | 6.5 | 31.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH113 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4S | RHBS1.25-4 | 4.0 | 4.3 | 6.5 | 31.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH114 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4L | RHBL1.25-4 | 4.0 | 4.3 | 8.0 | 33.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH115 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5 | RHB1.25-5 | 5.0 | 5.3 | 8.0 | 33.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH116 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5L | RHBL1.25-5 | 5.0 | 5.3 | 10.0 | 35.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH117 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6S | RHBS1.25-6 | 6.0 | 6.5 | 10.0 | 35.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH118 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6 | RHB1.25-6 | 6.0 | 6.5 | 11.5 | 39.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH119 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-8 | RHB1.25-8 | 8.0 | 8.5 | 11.5 | 39.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH11A | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-10 | RHB1.25-10 | 10.0 | 10.5 | 13.5 | 42.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH11B | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-12 | RHB1.25-12 | 12.0 | 13.0 | 19.0 | 47.5 | 0.75 | Red | IZUMI 3# | 500 |
| 1.5~2.5mm² | KFSH120 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3 | RHB2-3 | 3.0 | 3.2 | 6.5 | 30.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH121 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5S | RHBS2-3.5 | 3.5 | 3.7 | 6.5 | 30.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH122 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5M | RHBM2-3.5 | 3.5 | 3.7 | 6.5 | 31.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH123 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4S | RHBS2-4 | 4.0 | 4.3 | 6.5 | 31.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH124 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4L | RHBL2-4 | 4.0 | 4.3 | 8.5 | 34.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH125 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5S | RHBS2-5 | 5.0 | 5.3 | 8.5 | 34.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH126 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5L | RHBL2-5 | 5.0 | 5.3 | 9.5 | 34.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH127 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-6 | RHB2-6 | 6.0 | 6.5 | 12.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH128 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-8 | RHB2-8 | 8.0 | 8.5 | 12.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH129 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-10 | RHB2-10 | 10.0 | 10.5 | 13.5 | 42.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH12A | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-12 | RHB2-12 | 12.0 | 13.0 | 19.0 | 47.5 | 0.80 | Blue | IZUMI 4# | 500 |
| 4.0~6.0mm² | KFSH130 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-3.5 | RHB5.5-3.5 | 3.5 | 3.7 | 7.0 | 32.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH131 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4S | RHBS5.5-4 | 4.0 | 4.3 | 7.0 | 32.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH132 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4L | RHBL5.5-4 | 4.0 | 4.3 | 9.5 | 36.0 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH133 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-5 | RHB5.5-5 | 5.0 | 5.3 | 9.5 | 36.0 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH134 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-6 | RHB5.5-6 | 6.0 | 6.5 | 12.0 | 39.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSH135 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-8 | RHB5.5-8 | 8.0 | 8.5 | 15.0 | 43.8 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSH136 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-10 | RHB5.5-10 | 10.0 | 10.5 | 15.0 | 43.8 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSH137 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-12 | RHB5.5-12 | 12.0 | 13.0 | 19.0 | 48.5 | 1.00 | Yellow | IZUMI 5# | 500 |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||
| USA | d2 | W | L | Thickness | |||||||
| A.W.G. 22-16 | KFSH110 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3 | RHB1.25-3 | #4 | 0.126 | 0.217 | 1.161 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH111 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5S | RHBS1.25-3.5 | #6 | 0.146 | 0.217 | 1.161 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH112 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5M | RHBM1.25-3.5 | #6 | 0.146 | 0.256 | 1.240 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH113 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4S | RHBS1.25-4 | #8 | 0.169 | 0.256 | 1.240 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH114 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4L | RHBL1.25-4 | #8 | 0.169 | 0.315 | 1.299 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH115 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5 | RHB1.25-5 | #10 | 0.209 | 0.315 | 1.299 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH116 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5L | RHBL1.25-5 | #10 | 0.209 | 0.394 | 1.378 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH117 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6S | RHBS1.25-6 | 1/4" | 0.256 | 0.394 | 1.378 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH118 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6 | RHB1.25-6 | 1/4" | 0.256 | 0.453 | 1.535 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH119 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-8 | RHB1.25-8 | 5/16" | 0.335 | 0.453 | 1.535 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH11A | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-10 | RHB1.25-10 | 3/8" | 0.413 | 0.531 | 1.673 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH11B | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-12 | RHB1.25-12 | 1/2" | 0.512 | 0.748 | 1.870 | 0.030 | Red | IZUMI 3# | 500 |
| A.W.G. 16-14 | KFSH120 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3 | RHB2-3 | #4 | 0.126 | 0.256 | 1.181 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH121 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5S | RHBS2-3.5 | #6 | 0.146 | 0.256 | 1.181 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH122 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5M | RHBM2-3.5 | #6 | 0.146 | 0.256 | 1.240 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH123 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4S | RHBS2-4 | #8 | 0.169 | 0.256 | 1.240 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH124 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4L | RHBL2-4 | #8 | 0.169 | 0.335 | 1.339 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH125 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5S | RHBS2-5 | #10 | 0.209 | 0.335 | 1.339 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH126 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5L | RHBL2-5 | #10 | 0.209 | 0.374 | 1.339 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH127 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-6 | RHB2-6 | 1/4" | 0.256 | 0.472 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH128 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-8 | RHB2-8 | 5/16" | 0.335 | 0.472 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH129 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-10 | RHB2-10 | 3/8" | 0.413 | 0.531 | 1.673 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH12A | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-12 | RHB2-12 | 1/2" | 0.512 | 0.748 | 1.870 | 0.031 | Blue | IZUMI 4# | 500 |
| A.W.G. 12-10 | KFSH130 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-3.5 | RHB5.5-3.5 | #6 | 0.146 | 0.276 | 1.280 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH131 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4S | RHBS5.5-4 | #8 | 0.169 | 0.276 | 1.280 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH132 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4L | RHBL5.5-4 | #8 | 0.169 | 0.374 | 1.417 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH133 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-5 | RHB5.5-5 | #10 | 0.209 | 0.374 | 1.417 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH134 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-6 | RHB5.5-6 | 1/4" | 0.256 | 0.472 | 1.555 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSH135 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-8 | RHB5.5-8 | 5/16" | 0.335 | 0.591 | 1.724 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSH136 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-10 | RHB5.5-10 | 3/8" | 0.413 | 0.591 | 1.724 | 0.039 | Yellow | IZUMI 5# | 500 |
| A.W.G. 12-10 | KFSH137 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-12 | RHB5.5-12 | 1/2" | 0.512 | 0.748 | 1.909 | 0.039 | Yellow | IZUMI 5# | 500 |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |||
| Meric | d2 | W | L | Thickness | |||||||
| 0.5~1.5mm² | KFSH110 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3 | RHB1.25-3 | 3.0 | 3.2 | 5.5 | 29.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH111 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5S | RHBS1.25-3.5 | 3.5 | 3.7 | 5.5 | 29.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH112 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-3.5M | RHBM1.25-3.5 | 3.5 | 3.7 | 6.5 | 31.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH113 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4S | RHBS1.25-4 | 4.0 | 4.3 | 6.5 | 31.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH114 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-4L | RHBL1.25-4 | 4.0 | 4.3 | 8.0 | 33.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH115 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5 | RHB1.25-5 | 5.0 | 5.3 | 8.0 | 33.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH116 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-5L | RHBL1.25-5 | 5.0 | 5.3 | 10.0 | 35.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH117 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6S | RHBS1.25-6 | 6.0 | 6.5 | 10.0 | 35.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH118 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-6 | RHB1.25-6 | 6.0 | 6.5 | 11.5 | 39.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH119 | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-8 | RHB1.25-8 | 8.0 | 8.5 | 11.5 | 39.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH11A | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-10 | RHB1.25-10 | 10.0 | 10.5 | 13.5 | 42.5 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH11B | 22-16 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 1.25-12 | RHB1.25-12 | 12.0 | 13.0 | 19.0 | 47.5 | 0.75 | Red | IZUMI 3# | 500 |
| 1.5~2.5mm² | KFSH120 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3 | RHB2-3 | 3.0 | 3.2 | 6.5 | 30.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH121 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5S | RHBS2-3.5 | 3.5 | 3.7 | 6.5 | 30.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH122 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-3.5M | RHBM2-3.5 | 3.5 | 3.7 | 6.5 | 31.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH123 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4S | RHBS2-4 | 4.0 | 4.3 | 6.5 | 31.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH124 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-4L | RHBL2-4 | 4.0 | 4.3 | 8.5 | 34.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH125 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5S | RHBS2-5 | 5.0 | 5.3 | 8.5 | 34.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH126 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-5L | RHBL2-5 | 5.0 | 5.3 | 9.5 | 34.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH127 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-6 | RHB2-6 | 6.0 | 6.5 | 12.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH128 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-8 | RHB2-8 | 8.0 | 8.5 | 12.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH129 | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-10 | RHB2-10 | 10.0 | 10.5 | 13.5 | 42.5 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH12A | 16-14 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 2-12 | RHB2-12 | 12.0 | 13.0 | 19.0 | 47.5 | 0.80 | Blue | IZUMI 4# | 500 |
| 4.0~6.0mm² | KFSH130 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-3.5 | RHB5.5-3.5 | 3.5 | 3.7 | 7.0 | 32.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH131 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4S | RHBS5.5-4 | 4.0 | 4.3 | 7.0 | 32.5 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH132 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-4L | RHBL5.5-4 | 4.0 | 4.3 | 9.5 | 36.0 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH133 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-5 | RHB5.5-5 | 5.0 | 5.3 | 9.5 | 36.0 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH134 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-6 | RHB5.5-6 | 6.0 | 6.5 | 12.0 | 39.5 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSH135 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-8 | RHB5.5-8 | 8.0 | 8.5 | 15.0 | 43.8 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSH136 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-10 | RHB5.5-10 | 10.0 | 10.5 | 15.0 | 43.8 | 1.00 | Yellow | IZUMI 5# | 500 |
| 4.0~6.0mm² | KFSH137 | 12-10 AWG Heat Shrink-Insulated Single Crimp Ring Terminals 5.5-12 | RHB5.5-12 | 12.0 | 13.0 | 19.0 | 48.5 | 1.00 | Yellow | IZUMI 5# | 500 |
