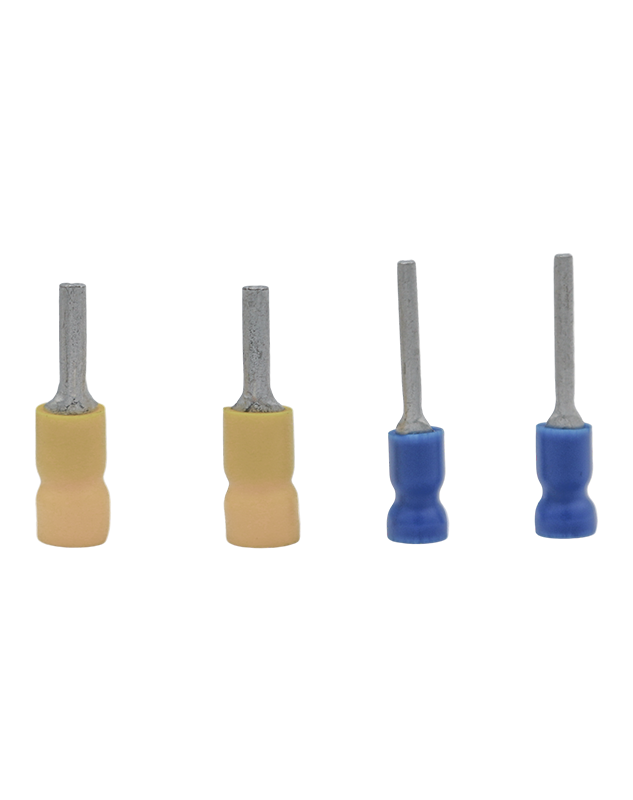

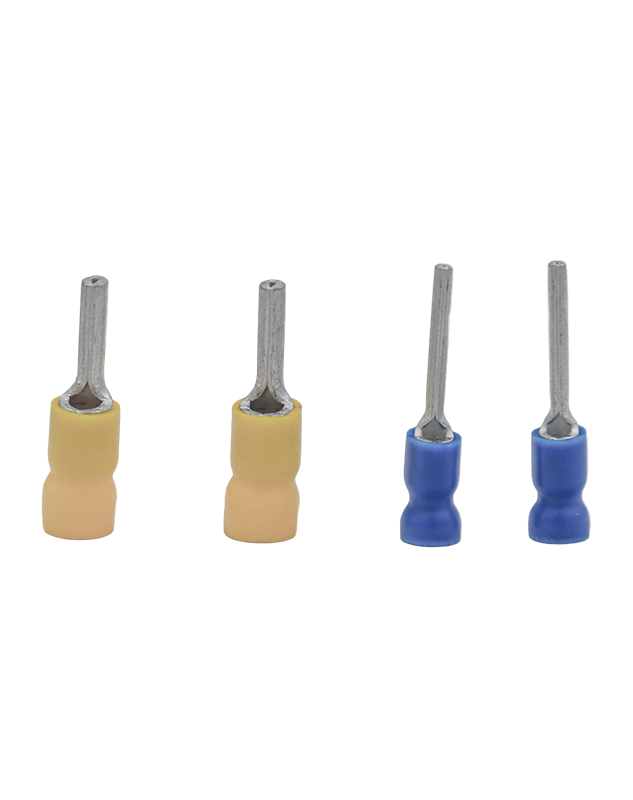

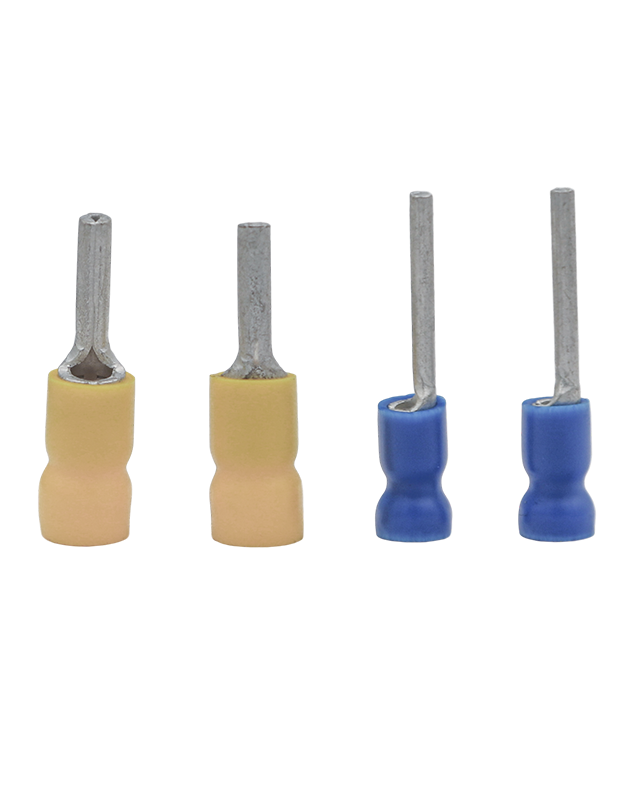

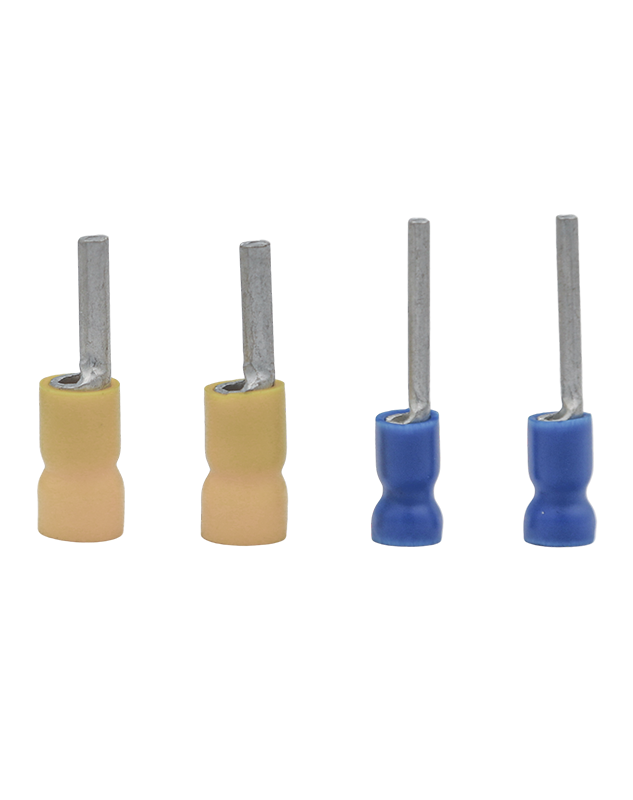

Vinyl-Insulated Single Crimp(Easy Entry)Pin Terminals

Vinyl-Insulated Single Crimp(Easy Entry)Pin Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 554

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA F L H D Thickness
A.W.G. 22-16  KFSE410 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals1.25-10 PTVE1.25-10   0.079 0.827 0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSE411 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals1.25-12 PTVE1.25-12   0.079 0.906 0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 22-16  KFSE412 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals1.25-18 PTVE1.25-18   0.079 1.142 0.433  0.157  0.030  Red IZUMI 3# 1000
A.W.G. 16-14   KFSE420 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals2-10 PTVE2-10   0.079 0.846 0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14   KFSE421 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals2-12 PTVE2-12   0.079 0.925 0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 16-14   KFSE422 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals2-18 PTVE2-18   0.079 1.161 0.453  0.177  0.031  Blue IZUMI 4# 1000
A.W.G. 12-10   KFSE430 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals5.5-13 PTVE5.5-13   0.118 1.063 0.511  0.256  0.039  Yellow IZUMI 5# 1000
A.W.G. 12-10   KFSE431 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals5.5-18 PTNE5.5-18   0.118 1.26 0.511  0.256  0.039  Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric F L H D Thickness
 0.5~1.5mm²  KFSE410 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals1.25-10 PTVE1.25-10   2.0  21.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE411 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals1.25-12 PTVE1.25-12   2.0  23.0  11.0  4.0  0.75  Red IZUMI 3# 1000
 0.5~1.5mm²  KFSE402 22-16 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals1.25-18 PTVE1.25-18   2.0  29.0  11.0  4.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSE420 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals2-10 PTVE2-10   2.0  21.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE421 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals2-12 PTVE2-12   2.0  23.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
1.5~2.5mm² KFSE422 16-14 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals2-18 PTVE2-18   2.0  29.5  11.5  4.5  0.8  Blue IZUMI 4# 1000
4.0~6.0mm² KFSE430 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals5.5-13 PTVE5.5-13   3.0  27.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSE431 12-10 AWG Vinyl-Insulated Single Crimp (Easy Entry) Pin Terminals5.5-18 PTNE5.5-18   3.0  32.0  14.0  6.5  1.0  Yellow IZUMI 5# 1000
