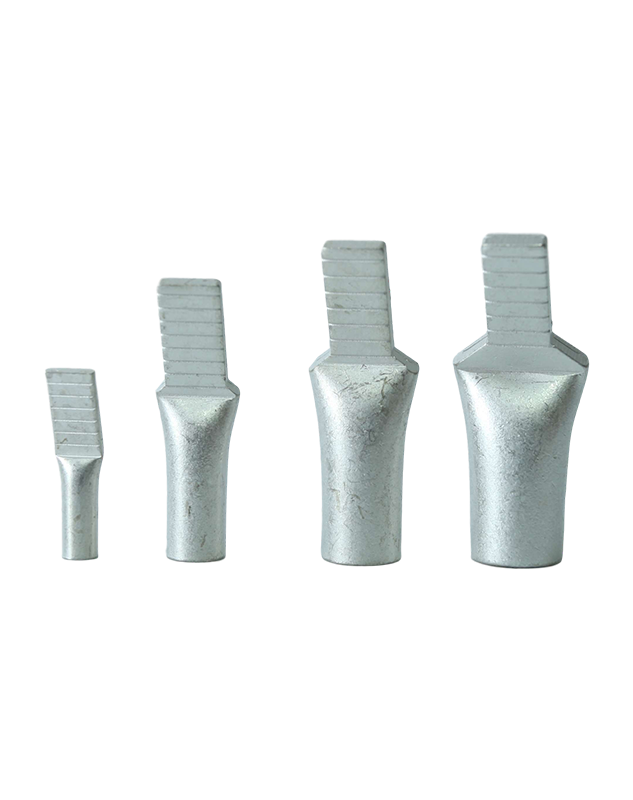

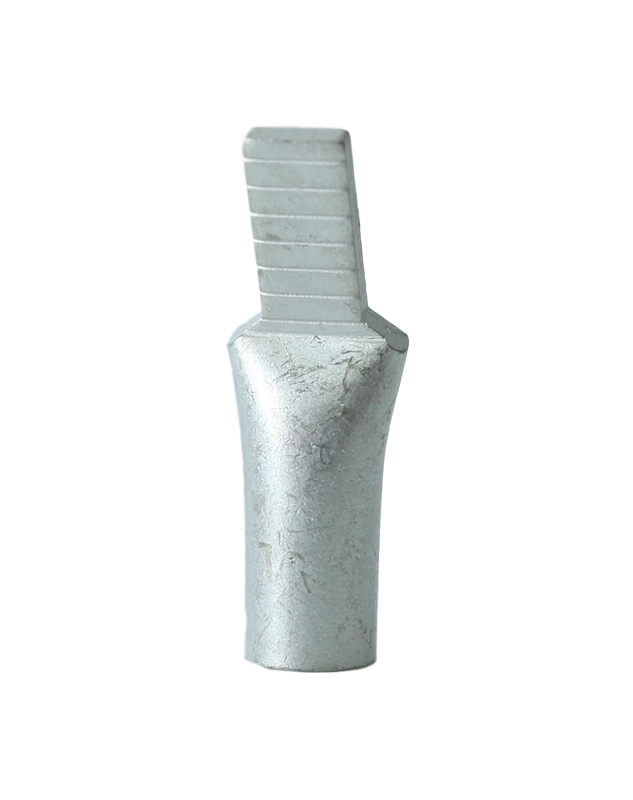

Copper Tubular Lugs(Type C45)

Copper Tubular Lugs(Type C45)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,623

Product Details

Spec (American AWG) 16 16-14 12 10 8 6 4 2 1/0 2/0
Spec (JIS AWG) 1.5 2 4 6 10 16 25 35 50 70
Spec (DIN AWG)
Spec (GB mm2)
Max Current 18 30 35 50 70 95 125 170 230 265

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA B L L1 D d
A.W.G. 16 KFL4510 16 AWG Copper Tubular Lugs (Type C45) C-1.5 C-1.5   0.185 0.866 0.394 0.138 0.083 IZUMI 5N18 1000
A.W.G. 16-14 KFL4520 16 AWG Copper Tubular Lugs (Type C45) C-2 C-2   0.217 0.866 0.394 0.157 0.102 IZUMI 5N18 1000
A.W.G. 12 KFL4530 12 AWG Copper Tubular Lugs (Type C45) C-4 C-4   0.264 0.866 0.394 0.189 0.134 IZUMI 5N18 1000
A.W.G. 10 KFL4540 10 AWG Copper Tubular Lugs (Type C45) C-6 C-6   0.276 1.063 0.394 0.232 0.157 IZUMI 5N18 1000
A.W.G. 8 KFL4550 8 AWG Copper Tubular Lugs (Type C45) C-10 C-10   0.276 1.299 0.512 0.264 0.201 IZUMI 5N18 500
A.W.G. 6 KFL4560 6 AWG Copper Tubular Lugs (Type C45) C-16 C-16   0.276 1.417 0.512 0.319 0.236 OPT TP-150D 500
A.W.G. 4 KFL4570 4 AWG Copper Tubular Lugs (Type C45) C-25 C-25   0.276 1.457 0.512 0.354 0.276 OPT TP-150D 250
A.W.G. 2 KFL4580 2 AWG Copper Tubular Lugs (Type C45) C-35 C-35   0.276 1.535 0.512 0.417 0.327 OPT TP-150D 200
A.W.G. 1/0 KFL4590 1/0 AWG Copper Tubular Lugs (Type C45) C-50 C-50   0.276 1.713 0.512 0.492 0.386 OPT TP-150D 100
A.W.G. 2/0 KFL45A0 2/0 AWG Copper Tubular Lugs (Type C45) C-70 C-70   0.276 1.850 0.512 0.579 0.469 OPT TP-150D 100
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric B L L1 D d
1.5mm² KFL4510 16 AWG Copper Tubular Lugs (Type C45) C-1.5 C-1.5   4.7  22.0  10.0  3.5  2.1  IZUMI 5N18 1000
1.5~2.5mm² KFL4520 16 AWG Copper Tubular Lugs (Type C45) C-2 C-2   5.5  22.0  10.0  4.0  2.6  IZUMI 5N18 1000
4mm² KFL4530 12 AWG Copper Tubular Lugs (Type C45) C-4 C-4   6.7  22.0  10.0  4.8  3.4  IZUMI 5N18 1000
6mm² KFL4540 10 AWG Copper Tubular Lugs (Type C45) C-6 C-6   7.0  27.0  10.0  5.9  4.0  IZUMI 5N18 1000
10mm² KFL4550 8 AWG Copper Tubular Lugs (Type C45) C-10 C-10   7.0  33.0  13.0  6.7  5.1  IZUMI 5N18 500
16mm² KFL4560 6 AWG Copper Tubular Lugs (Type C45) C-16 C-16   7.0  36.0  13.0  8.1  6.0  OPT TP-150D 500
25mm² KFL4570 4 AWG Copper Tubular Lugs (Type C45) C-25 C-25   7.0  37.0  13.0  9.0  7.0  OPT TP-150D 250
35mm² KFL4580 2 AWG Copper Tubular Lugs (Type C45) C-35 C-35   7.0  39.0  13.0  10.6  8.3  OPT TP-150D 200
50mm² KFL4590 1/0 AWG Copper Tubular Lugs (Type C45) C-50 C-50   7.0  43.5  13.0  12.5  9.8  OPT TP-150D 100
70mm² KFL45A0 2/0 AWG Copper Tubular Lugs (Type C45) C-70 C-70   7.0  47.0  13.0  14.7  11.9  OPT TP-150D 100
