Vinyl-Insulated Single Crimp Blade Terminals Suppliers

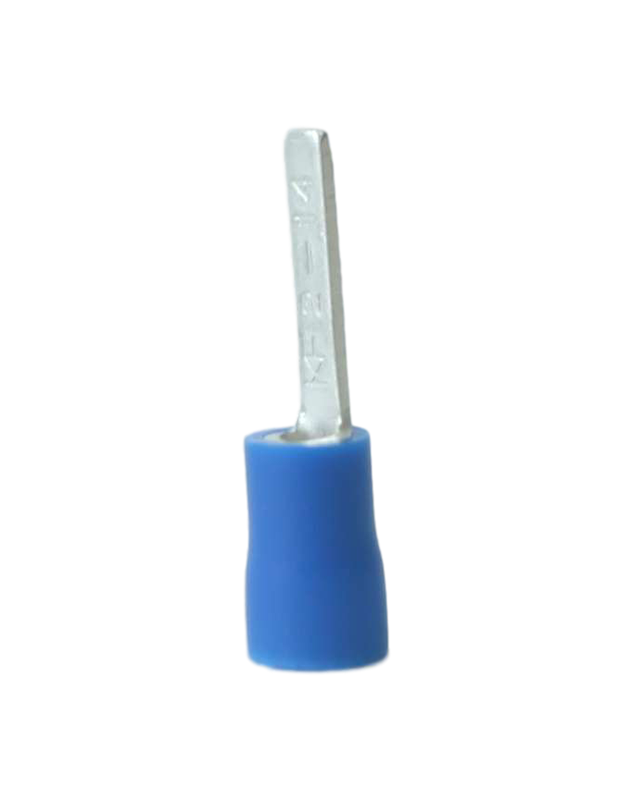

Vinyl-Insulated Single Crimp Blade Terminals

Vinyl-Insulated Single Crimp Blade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 744

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L F H D d Thickness

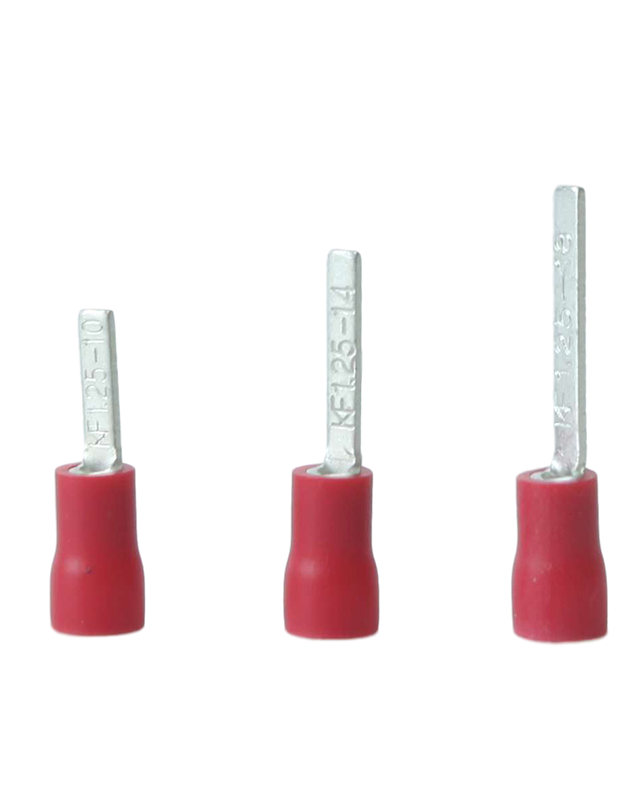

A.W.G. 22-16 KFSV510 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-10 DBV1.25-10   0.098 0.787 0.394 0.394 0.177 0.079 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV511 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-14 DBV1.25-14   0.079 0.945 0.551 0.394 0.177 0.079 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV512 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-18 DBV1.25-18   0.079 1.102 0.709 0.394 0.177 0.079 0.030  Red IZUMI 3# 1000

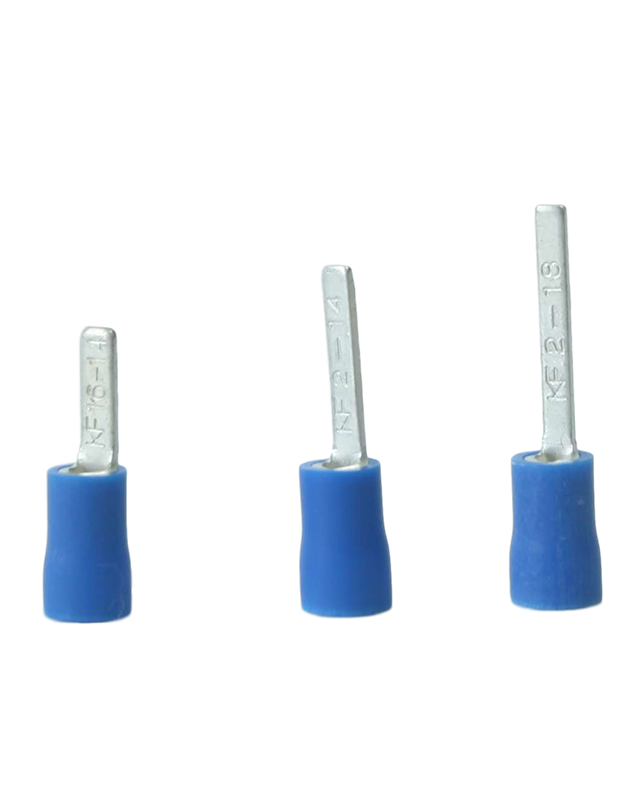

A.W.G. 16-14 KFSV520 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-10 DBV2-10   0.118 0.787 0.394 0.394 0.197 0.098 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV521 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-14 DBV2-14   0.098 0.945 0.551 0.394 0.197 0.098 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14  KFSV522 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-18 DBV2-18   0.079 1.102 0.709 0.394 0.197 0.098 0.031 Blue IZUMI 4# 1000

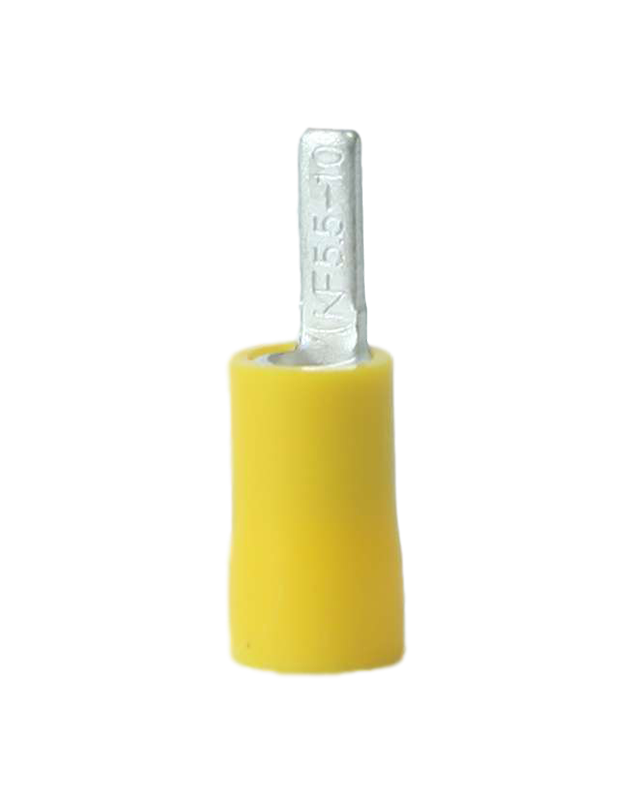

A.W.G. 12-10 KFSV530 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-10 DBV5.5-10   0.118 0.906 0.394 0.512 0.256 0.138 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV531 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-14 DBV5.5-14   0.177 1.063 0.551 0.512 0.256 0.138 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV532 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-18 DBV5.5-18   0.177 1.22 0.709 0.512 0.256 0.138 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L F H D d Thickness
0.5~1.5mm² KFSV510 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-10 DBV1.25-10   2.5 20.0 10.0 10.0 4.5 2.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV511 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-14 DBV1.25-14   2.0 24.0 14.0 10.0 4.5 2.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV512 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-18 DBV1.25-18   2.0 28.0 18.0 10.0 4.5 2.0 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV520 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-10 DBV2-10   3.0 20.0 10.0 10.0 5.0 2.5 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV521 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-14 DBV2-14   2.5 24.0 14.0 10.0 5.0 2.5 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV522 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-18 DBV2-18   2.0 28.0 18.0 10.0 5.0 2.5 0.8 Blue IZUMI 4# 1000
4.0~6.0mm² KFSV530 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-10 DBV5.5-10   3.0 23.0 10.0 13.0 6.5 3.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV531 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-14 DBV5.5-14   4.5 27.0 14.0 13.0 6.5 3.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV532 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-18 DBV5.5-18   4.5 31.0 18.0 13.0 6.5 3.5 1.0 Yellow IZUMI 5# 500







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L F H D d Thickness
A.W.G. 22-16 KFSV510 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-10 DBV1.25-10   0.098 0.787 0.394 0.394 0.177 0.079 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV511 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-14 DBV1.25-14   0.079 0.945 0.551 0.394 0.177 0.079 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV512 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-18 DBV1.25-18   0.079 1.102 0.709 0.394 0.177 0.079 0.030  Red IZUMI 3# 1000
A.W.G. 16-14 KFSV520 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-10 DBV2-10   0.118 0.787 0.394 0.394 0.197 0.098 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV521 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-14 DBV2-14   0.098 0.945 0.551 0.394 0.197 0.098 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14  KFSV522 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-18 DBV2-18   0.079 1.102 0.709 0.394 0.197 0.098 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSV530 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-10 DBV5.5-10   0.118 0.906 0.394 0.512 0.256 0.138 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV531 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-14 DBV5.5-14   0.177 1.063 0.551 0.512 0.256 0.138 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV532 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-18 DBV5.5-18   0.177 1.22 0.709 0.512 0.256 0.138 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L F H D d Thickness
0.5~1.5mm² KFSV510 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-10 DBV1.25-10   2.5 20.0 10.0 10.0 4.5 2.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV511 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-14 DBV1.25-14   2.0 24.0 14.0 10.0 4.5 2.0 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV512 22-16 AWG Vinyl-Insulated Single Crimp Blade Terminals 1.25-18 DBV1.25-18   2.0 28.0 18.0 10.0 4.5 2.0 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV520 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-10 DBV2-10   3.0 20.0 10.0 10.0 5.0 2.5 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV521 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-14 DBV2-14   2.5 24.0 14.0 10.0 5.0 2.5 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV522 16-14 AWG Vinyl-Insulated Single Crimp Blade Terminals 2-18 DBV2-18   2.0 28.0 18.0 10.0 5.0 2.5 0.8 Blue IZUMI 4# 1000
4.0~6.0mm² KFSV530 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-10 DBV5.5-10   3.0 23.0 10.0 13.0 6.5 3.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV531 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-14 DBV5.5-14   4.5 27.0 14.0 13.0 6.5 3.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV532 12-10 AWG Vinyl-Insulated Single Crimp Blade Terminals 5.5-18 DBV5.5-18   4.5 31.0 18.0 13.0 6.5 3.5 1.0 Yellow IZUMI 5# 500
