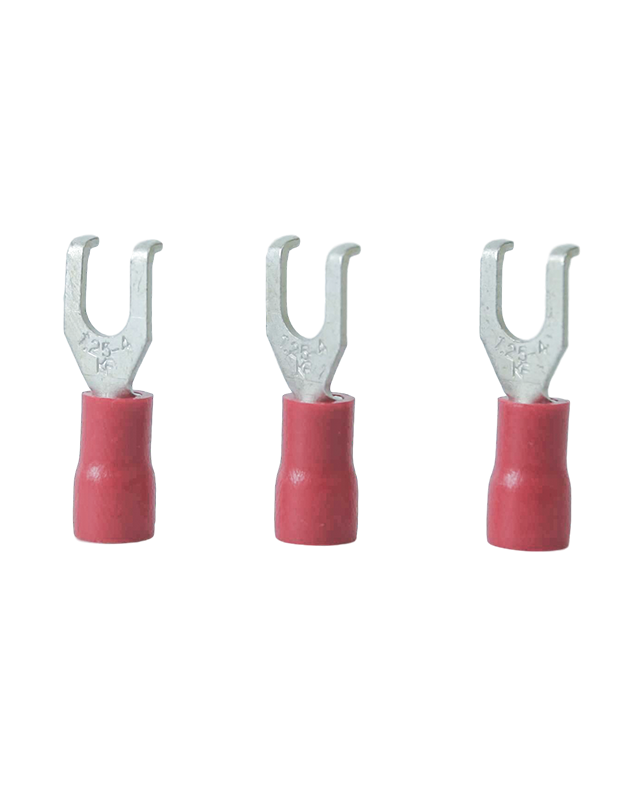

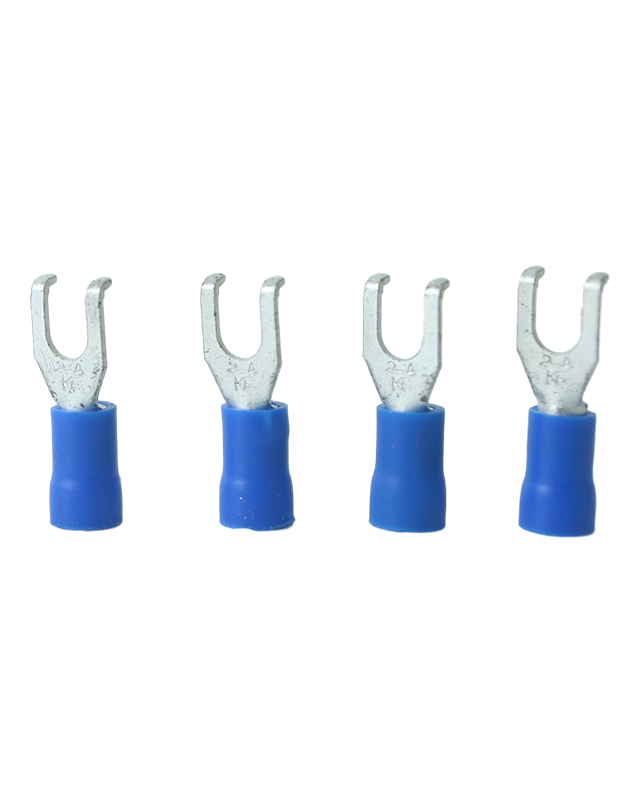

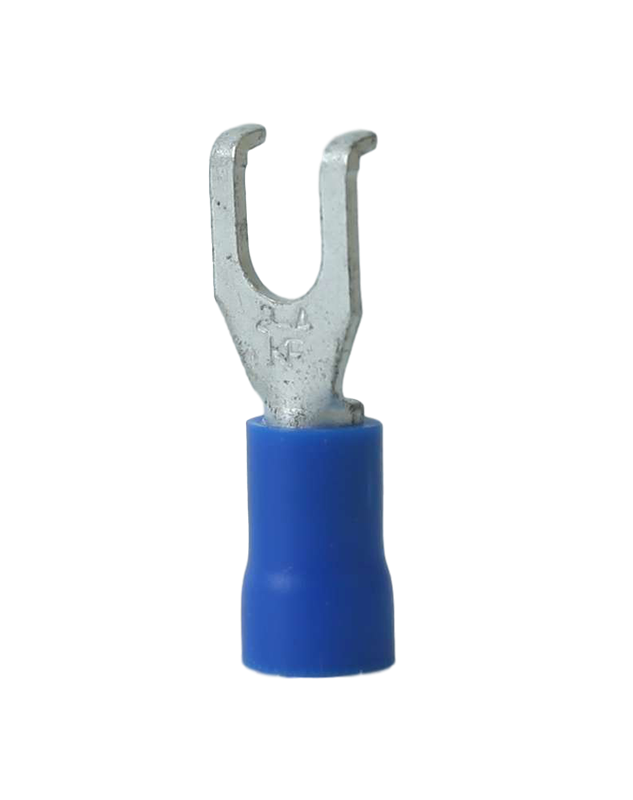

Vinyl-Insulated Single Crimp Flange Spade Terminals

Vinyl-Insulated Single Crimp Flange Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,345

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B F L H D Thickness
A.W.G. 22-16 KFSV210 22-16 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSV1.25-3.5 #6 0.146 0.256 0.846 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV211 22-16 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSV1.25-4 #8 0.169 0.276 0.846 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV212 22-16 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSV1.25-5 #10 0.209 0.374 0.846 0.256 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 16-14 KFSV220 16-14 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 2-3.5 FSV2-3.5 #6 0.146 0.276 0.846 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV221 16-14 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 2-4 FSV2-4 #8 0.169 0.276 0.846 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV222 16-14 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 2-5 FSV2-5 #10 0.209 0.374 0.846 0.256 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSV230 12-10 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 5.5-3.5 FSV5.5-3.5 #6 0.146 0.335 1.004 0.295 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV231 12-10 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 5.5-4 FSV5.5-4 #8 0.169 0.335 1.004 0.295 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV232 12-10 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 5.5-5 FSV5.5-5 #10 0.209 0.354 1.004 0.295 0.512 0.256 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B F L H D Thickness
0.5~1.5mm² KFSV210 22-16 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSV1.25-3.5 3.5 3.7 6.5 21.5 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV211 22-16 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSV1.25-4 4 4.3 7.0 21.5 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV212 22-16 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSV1.25-5 5 5.3 9.5 21.5 6.5 10.0 4.5 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV220 16-14 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 2-3.5 FSV2-3.5 3.5 3.7 7.0 21.5 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV221 16-14 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 2-4 FSV2-4 4 4.3 7.0 21.5 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV222 16-14 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 2-5 FSV2-5 5 5.3 9.5 21.5 6.5 10.0 5.0 0.8 Blue IZUMI 4# 1000
4.0~6.0mm² KFSV230 12-10 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 5.5-3.5 FSV5.5-3.5 3.5 3.7 8.5 25.5 7.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV231 12-10 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 5.5-4 FSV5.5-4 4 4.3 8.5 25.5 7.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV232 12-10 AWG Vinyl-Insulated Single Crimp Flange Spade Terminals 5.5-5 FSV5.5-5 5 5.3 9.0 25.5 7.5 13.0 6.5 1.0 Yellow IZUMI 5# 1000
