Vinyl-Insulated Piggyback Quick Disconnectors Suppliers

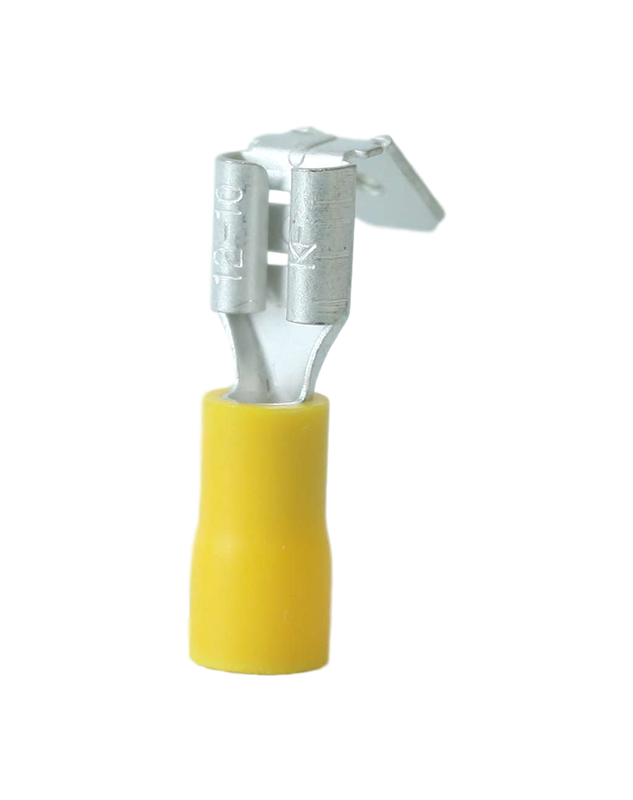

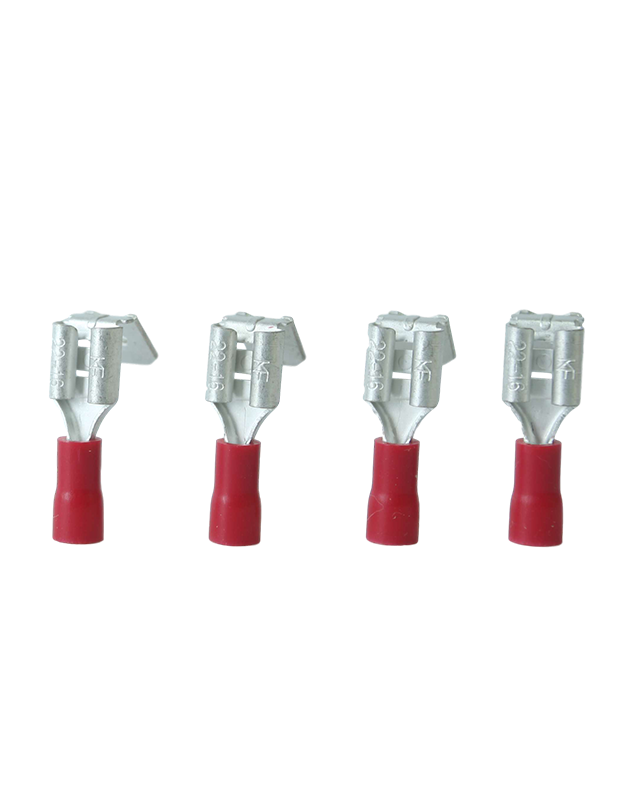

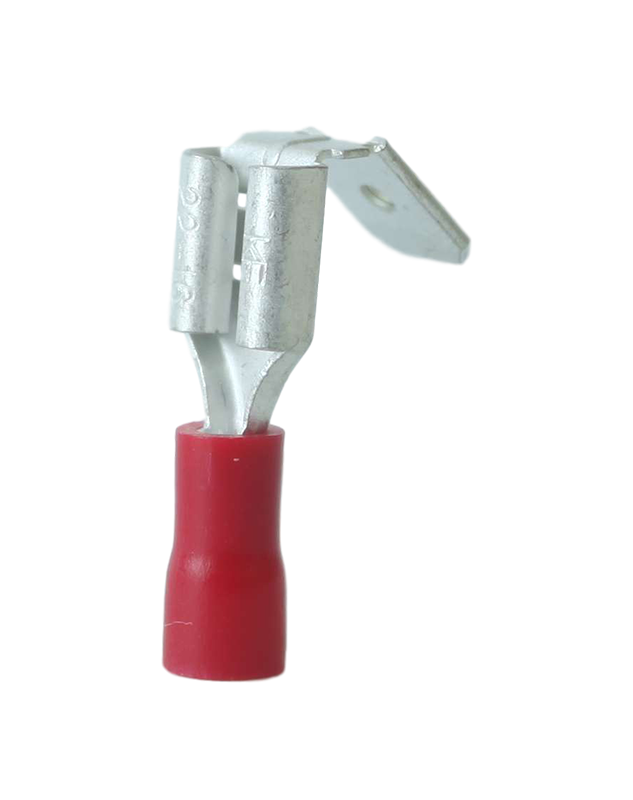

Vinyl-Insulated Piggyback Quick Disconnectors

Vinyl-Insulated Piggyback Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 403

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 10 15 24
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B B1 H D d L Thickness
A.W.G. 22-16 KFQVP10 22-16 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 1.25-250 PBDD 1.25-250   0.256 0.250 0.394 0.138 0.079 0.866 0.016 Red IZUMI  3# 1000
A.W.G. 16~14 KFQVP20 16-14 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 2-250 PBDD 2-250   0.256 0.250 0.394 0.177 0.098 0.866 0.016 Blue IZUMI  4# 1000
A.W.G. 12~10 KFQVP30 12-10 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 5.5-250 PBDD 5.5-250   0.256 0.250 0.512 0.217 0.138 0.984 0.016 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B B1 H D d L Thickness
0.5~1.5mm² KFQVP10 22-16 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 1.25-250 PBDD 1.25-250   6.5  6.4  10.0  3.5  2.0  22.0  0.40  Red IZUMI  3# 1000
1.5~2.5mm² KFQVP20 16-14 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 2-250 PBDD 2-250   6.5  6.4  10.0  4.5  2.5  22.0  0.40  Blue IZUMI  4# 1000
4~6mm² KFQVP30 12-10 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 5.5-250 PBDD 5.5-250   6.5  6.4  13.0  5.5  3.5  25.0  0.40  Yellow IZUMI  5# 500







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B B1 H D d L Thickness
A.W.G. 22-16 KFQVP10 22-16 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 1.25-250 PBDD 1.25-250   0.256 0.250 0.394 0.138 0.079 0.866 0.016 Red IZUMI  3# 1000
A.W.G. 16~14 KFQVP20 16-14 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 2-250 PBDD 2-250   0.256 0.250 0.394 0.177 0.098 0.866 0.016 Blue IZUMI  4# 1000
A.W.G. 12~10 KFQVP30 12-10 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 5.5-250 PBDD 5.5-250   0.256 0.250 0.512 0.217 0.138 0.984 0.016 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B B1 H D d L Thickness
0.5~1.5mm² KFQVP10 22-16 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 1.25-250 PBDD 1.25-250   6.5  6.4  10.0  3.5  2.0  22.0  0.40  Red IZUMI  3# 1000
1.5~2.5mm² KFQVP20 16-14 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 2-250 PBDD 2-250   6.5  6.4  10.0  4.5  2.5  22.0  0.40  Blue IZUMI  4# 1000
4~6mm² KFQVP30 12-10 AWG Vinyl-Insulated Piggyback Quick Disconnectors PBDD 5.5-250 PBDD 5.5-250   6.5  6.4  13.0  5.5  3.5  25.0  0.40  Yellow IZUMI  5# 500
