Vinyl-Insulated Single Crimp Pin Terminals

Vinyl-Insulated Single Crimp Pin Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,393

Product Details

Spec (American AWG)

22-16

16-1 4

14-12

12-10

Spec (JIS AWG)

1.25

2

3.5

5.5

Spec (DIN AWG)

1

2.5



4.0-6.0

Spec (GB mm2)

0.5-1.5

2.5

4

6

Max Current

19

27

37

48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA F L H D Thickness

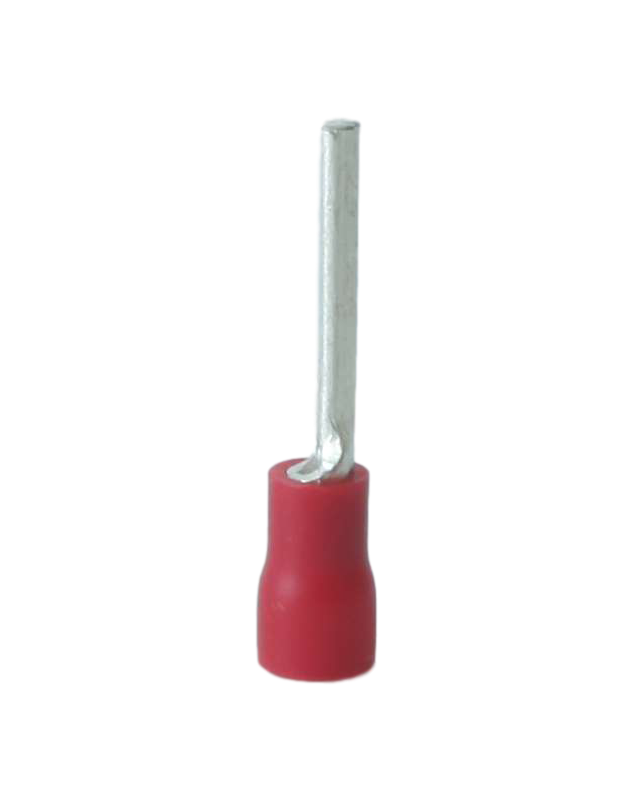

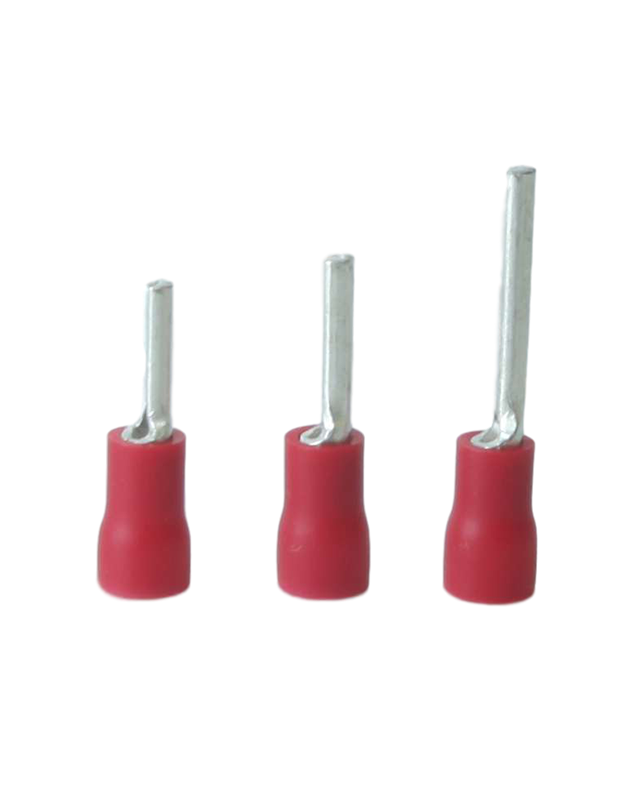

A.W.G. 22-16 KFSV410 22-16 AWG Vinyl-Insulated Single Crimp Pin Terminals 1.25-10 PTV1.25-10   0.079 0.787 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV411 22-16 AWG Vinyl-Insulated Single Crimp Pin Terminals 1.25-12 PTV1.25-12   0.079 0.866 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV412 22-16 AWG Vinyl-Insulated Single Crimp Pin Terminals 1.25-18 PTV1.25-18   0.079 1.102 0.394 0.177 0.030  Red IZUMI 3# 1000

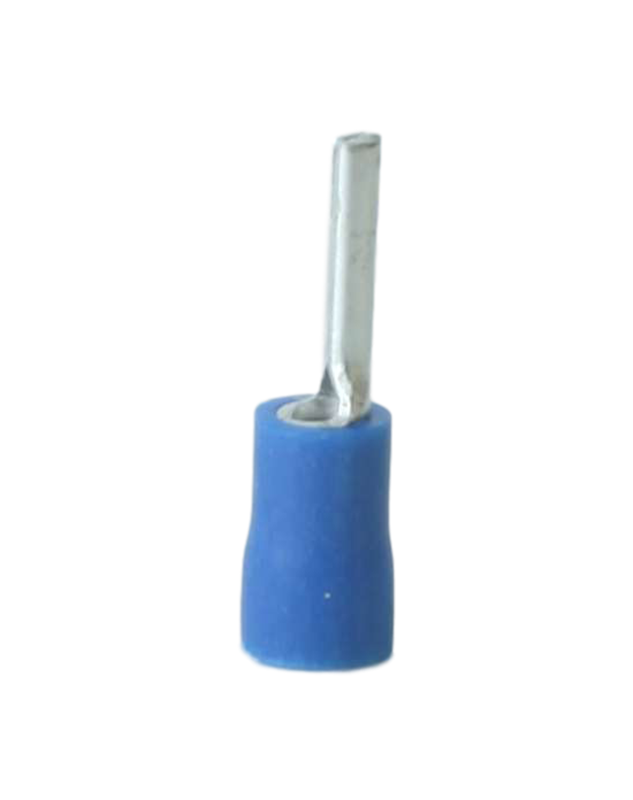

A.W.G. 16-14 KFSV420 16-14 AWG Vinyl-Insulated Single Crimp Pin Terminals 2-10 PTV2-10   0.079 0.787 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV421 16-14 AWG Vinyl-Insulated Single Crimp Pin Terminals 2-12 PTV2-12   0.079 0.866 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV422 16-14 AWG Vinyl-Insulated Single Crimp Pin Terminals 2-18 PTV2-18   0.079 1.102 0.394 0.197 0.031 Blue IZUMI 4# 1000

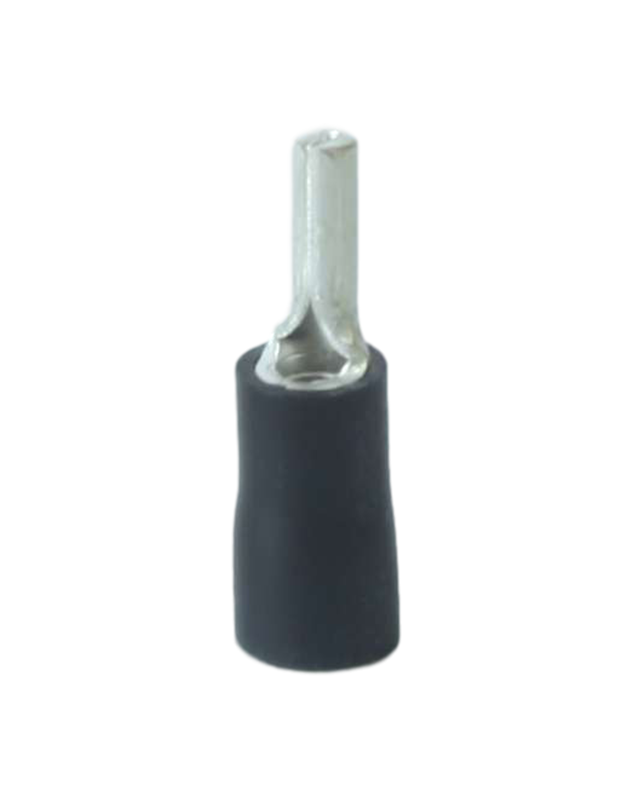

A.W.G. 14-12 KFSV430 14-12 AWG Vinyl-Insulated Single Crimp Pin Terminals 3.5-10 PTV3.5-10   0.118 0.906 0.512 0.236 0.039 Black IZUMI 5# 1000
A.W.G. 14-12 KFSV431 14-12 AWG Vinyl-Insulated Single Crimp Pin Terminals 3.5-13 PTV3.5-13   0.118 1.024 0.512 0.236 0.039 Black IZUMI 5# 1000

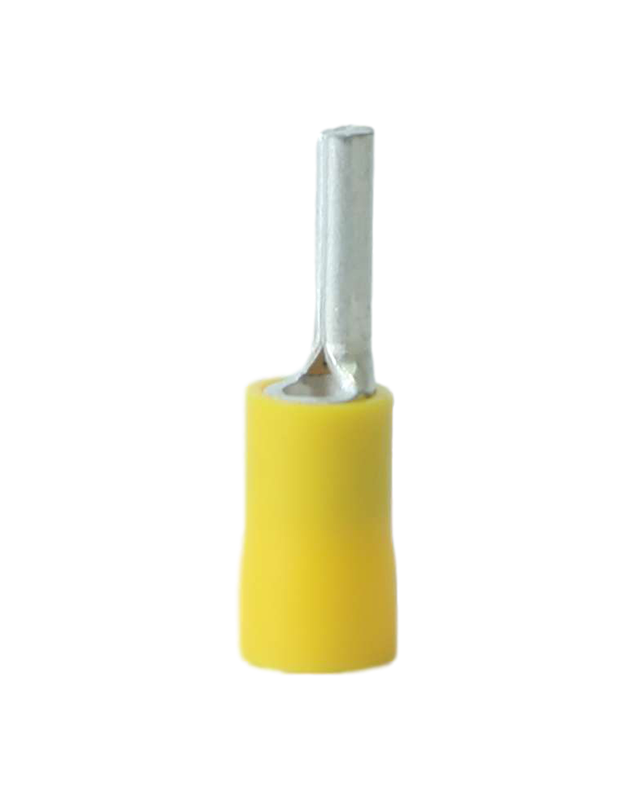

A.W.G. 12-10 KFSV440 12-10 AWG Vinyl-Insulated Single Crimp Pin Terminals 5.5-13 PTV5.5-13   0.118 1.024 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV441 12-10 AWG Vinyl-Insulated Single Crimp Pin Terminals 5.5-18 PTV5.5-18   0.118 1.22 0.512 0.256 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric F L H D Thickness
0.5~1.5mm² KFSV410 22-16 AWG Vinyl-Insulated Single Crimp Pin Terminals 1.25-10 PTV1.25-10   2.0 20.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV411 22-16 AWG Vinyl-Insulated Single Crimp Pin Terminals 1.25-12 PTV1.25-12   2.0 22.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV412 22-16 AWG Vinyl-Insulated Single Crimp Pin Terminals 1.25-18 PTV1.25-18   2.0 28.0 10.0 4.5 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV420 16-14 AWG Vinyl-Insulated Single Crimp Pin Terminals 2-10 PTV2-10   2.0 20.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV421 16-14 AWG Vinyl-Insulated Single Crimp Pin Terminals 2-12 PTV2-12   2.0 22.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV422 16-14 AWG Vinyl-Insulated Single Crimp Pin Terminals 2-18 PTV2-18   2.0 28.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
2.5~4.0mm² KFSV430 14-12 AWG Vinyl-Insulated Single Crimp Pin Terminals 3.5-10 PTV3.5-10   3.0 23.0 13.0 6.0 1.0 Black IZUMI 5# 1000
2.5~4.0mm² KFSV431 14-12 AWG Vinyl-Insulated Single Crimp Pin Terminals 3.5-13 PTV3.5-13   3.0 26.0 13.0 6.0 1.0 Black IZUMI 5# 1000
4.0~6.0mm² KFSV440 12-10 AWG Vinyl-Insulated Single Crimp Pin Terminals 5.5-13 PTV5.5-13   3.0 26.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV441 12-10 AWG Vinyl-Insulated Single Crimp Pin Terminals 5.5-18 PTV5.5-18   3.0 31.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
