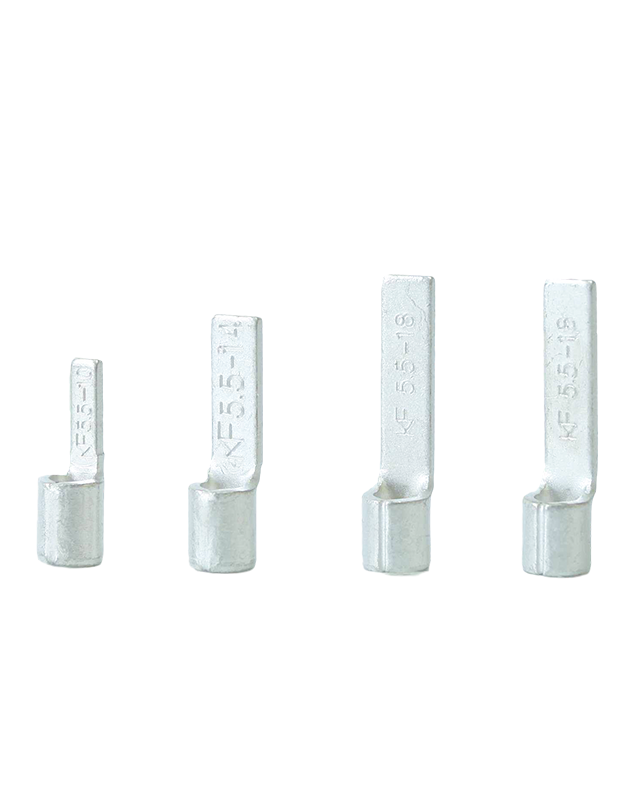

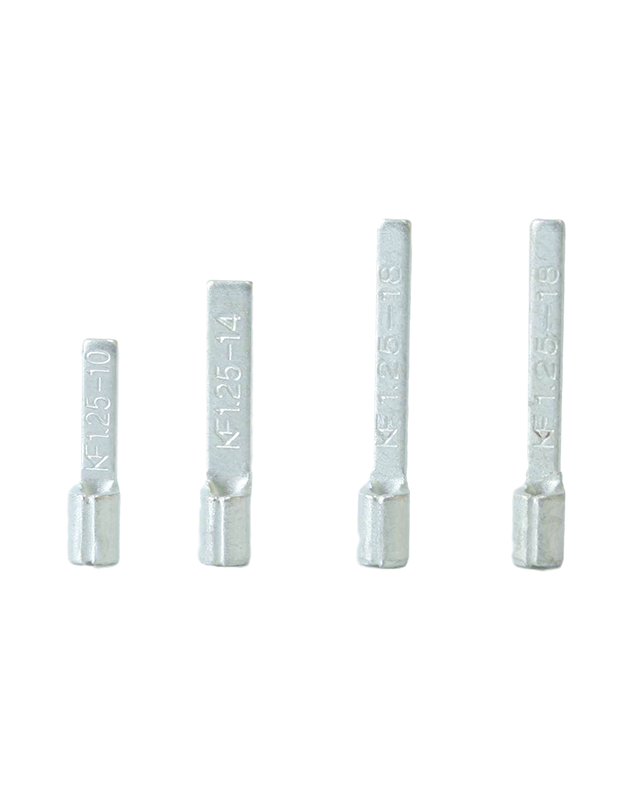

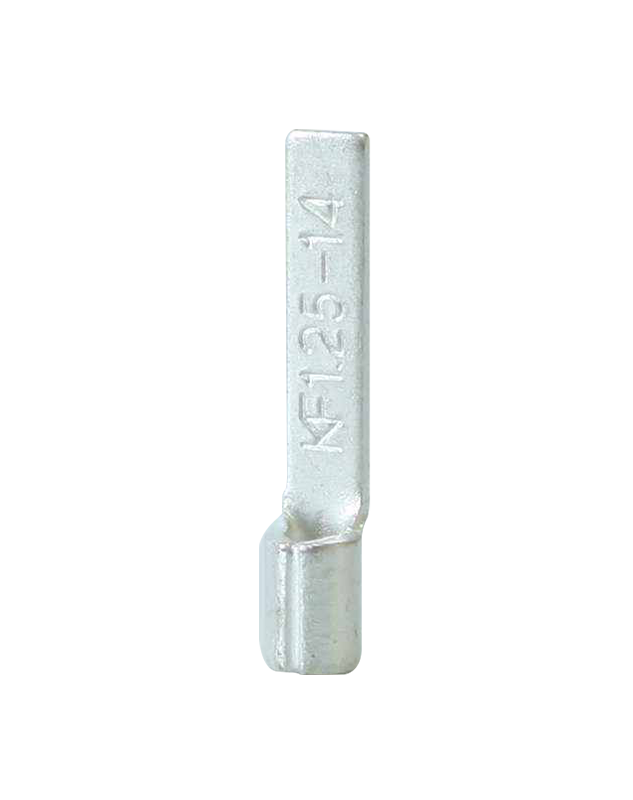

Non-Insulated Blade Terminals

Non-Insulated Blade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 2,425

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8 6
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8 14
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10 16
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6.0  10 16
Max Current   19 27 37 48 62 88

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

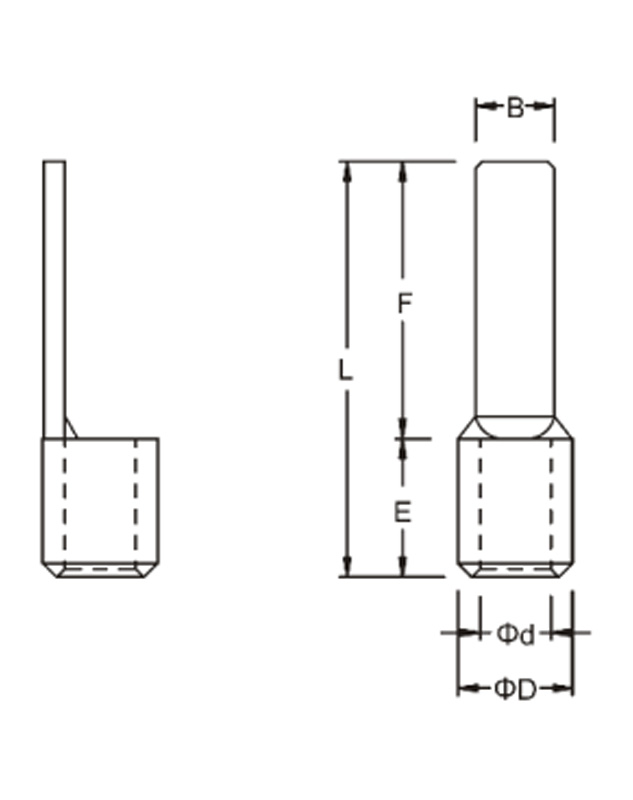

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA B L F E D d Thickness
A.W.G. 22-16 KFO0510 22-16 AWG Non-insulated Blade Terminal 1.25-10 DBN1.25-10   0.098 0.591 0.394 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0511 22-16 AWG Non-insulated Blade Terminal 1.25-14 DBN1.25-14   0.079 0.748 0.551 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0512 22-16 AWG Non-insulated Blade Terminal 1.25-18 DBN1.25-18   0.079 0.906 0.709 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 16-14 KFO0520 16-14 AWG Non-insulated Blade Terminal 2-10 DBN2-10   0.118 0.591 0.394 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0521 16-14 AWG Non-insulated Blade Terminal 2-14 DBN2-14   0.098 0.748 0.551 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14  KFO0522 16-14 AWG Non-insulated Blade Terminal 2-18 DBN2-18   0.079 0.906 0.709 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 12-10  KFO0530 12-10 AWG Non-insulated Blade Terminal 5.5-10 DBN5.5-10   0.118 0.669 0.394 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0531 12-10 AWG Non-insulated Blade Terminal 5.5-14 DBN5.5-14   0.177 0.827 0.551 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10 KFO0532 12-10 AWG Non-insulated Blade Terminal 5.5-18 DBN5.5-18   0.177 0.984 0.709 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 8 KFO0540 8 AWG Non-insulated Blade Terminal 8-14 DBN8-14   0.197 0.886 0.551 0.335 0.276 0.197 0.047 IZUMI 5N18 1000
A.W.G. 6 KFO0550 6 AWG Non-insulated Blade Terminal 14-16 DBN14-16   0.236 1.043 0.63 0.413 0.354 0.236 0.055 OPT TP - 150D 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric B L F E D d Thickness
0.5~1.5mm² KFO0510 22-16 AWG Non-insulated Blade Terminal 1.25-10 DBN1.25-10   2.5 15.0 10.0 5 3.5 2.0  0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0511 22-16 AWG Non-insulated Blade Terminal 1.25-14 DBN1.25-14   2.0 19.0 14.0 5 3.5 2.0  0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0512 22-16 AWG Non-insulated Blade Terminal 1.25-18 DBN1.25-18   2.0 23.0 18.0 5 3.5 2.0  0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0520 16-14 AWG Non-insulated Blade Terminal 2-10 DBN2-10   3.0 15.0 10.0 5 4 2.5  0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0521 16-14 AWG Non-insulated Blade Terminal 2-14 DBN2-14   2.5 19.0 14.0 5 4 2.5  0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0522 16-14 AWG Non-insulated Blade Terminal 2-18 DBN2-18   2.0 23.0 18.0 5 4 2.5  0.8 IZUMI 5N18 1000
4.0~6.0mm² KFO0530 12-10 AWG Non-insulated Blade Terminal 5.5-10 DBN5.5-10   3.0 17.0 10.0 7 5.5 3.5  1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0531 12-10 AWG Non-insulated Blade Terminal 5.5-14 DBN5.5-14   4.5 21.0 14.0 7 5.5 3.5  1.0  IZUMI 5N18 1000
4.0~6.0mm² KFO0532 12-10 AWG Non-insulated Blade Terminal 5.5-18 DBN5.5-18   4.5 25.0 18.0 7 5.5 3.5  1.0  IZUMI 5N18 1000
8mm² KFO0540 8 AWG Non-insulated Blade Terminal 8-14 DBN8-14   5.0 22.5 14.0 8.5 7 5.0  1.2 IZUMI 5N18 1000
14mm² KFO0550 6 AWG Non-insulated Blade Terminal 14-16 DBN14-16   6.0 26.5 16.0 10.5 9 6.0  1.4 OPT TP - 150D 1000
