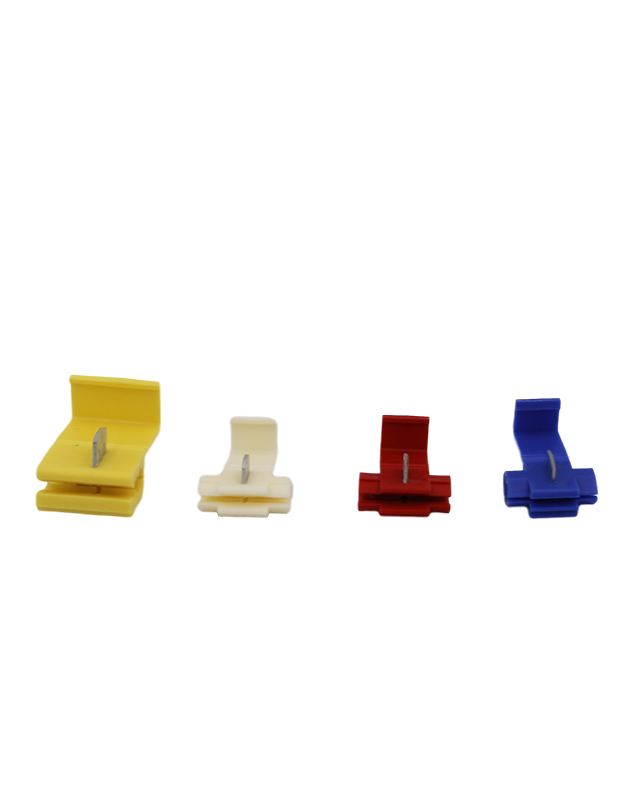

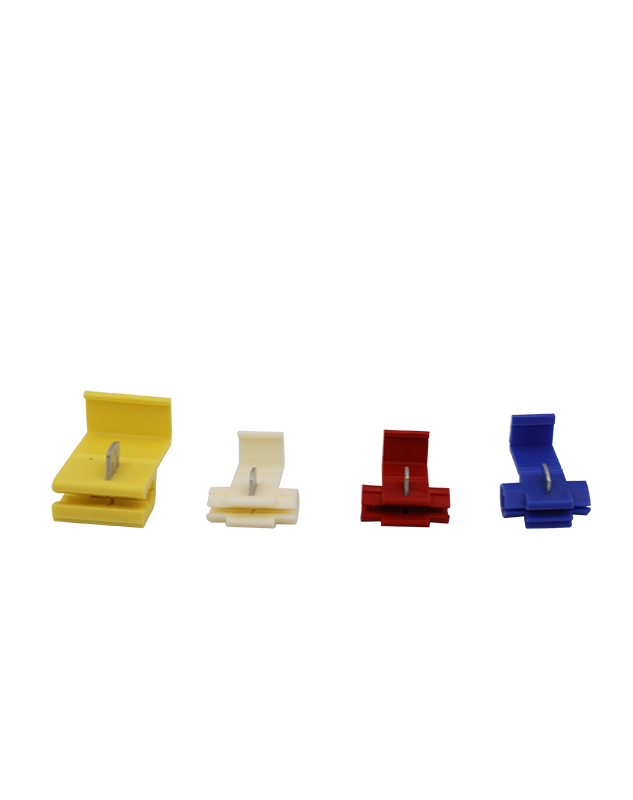

Quick Splice Connectors(U) Suppliers

Quick Splice Connectors(U)

Quick Splice Connectors(U)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PP

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





1+
0
Views: 816

Product Details

Spec (American AWG)

22-18 18-14 12-10

Spec (JIS AWG)



Spec (DIN AWG)



Spec (GB mm2)



Max Current


Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color PCS/Pack
USA W L Thickness
A.W.G. 22-18 KFRQ10 22-18 AWG Quick Splice Connectors(U)KF1 KF1   0.768 1.063 0.031 Red 500
A.W.G. 18-14 KFRQ20 18-14 AWG Quick Splice Connectors(U)KF2 KF2   0.768 1.063 0.031 Blue 500
A.W.G. 18-14 KFRQ21 18-14 AWG Quick Splice Connectors(U)KF2W KF2W   0.768 1.063 0.031 White 500
A.W.G. 12-10 KFRQ30 12-10 AWG Quick Splice Connectors(U)KF5 KF5   0.787 1.378 0.031 Yellow 200
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color PCS/Pack
Meric W L Thickness
0.5~1mm² KFRQ10 22-18 AWG Quick Splice Connectors(U) KF1 KF1   19.5  27.0  0.8  Red 500
1~2.5mm² KFRQ20 18-14 AWG Quick Splice Connectors(U) KF2 KF2   19.5  27.0  0.8  Blue 500
1~2.5mm² KFRQ21 18-14 AWG Quick Splice Connectors(U)KF2W KF2W   19.5  27.0  0.8  White 500
4~6mm² KFRQ30 12-10 AWG Quick Splice Connectors(U)KF5 KF5   20.0  35.0  0.8  Yellow 200







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color PCS/Pack
USA W L Thickness
A.W.G. 22-18 KFRQ10 22-18 AWG Quick Splice Connectors(U)KF1 KF1   0.768 1.063 0.031 Red 500
A.W.G. 18-14 KFRQ20 18-14 AWG Quick Splice Connectors(U)KF2 KF2   0.768 1.063 0.031 Blue 500
A.W.G. 18-14 KFRQ21 18-14 AWG Quick Splice Connectors(U)KF2W KF2W   0.768 1.063 0.031 White 500
A.W.G. 12-10 KFRQ30 12-10 AWG Quick Splice Connectors(U)KF5 KF5   0.787 1.378 0.031 Yellow 200
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color PCS/Pack
Meric W L Thickness
0.5~1mm² KFRQ10 22-18 AWG Quick Splice Connectors(U) KF1 KF1   19.5  27.0  0.8  Red 500
1~2.5mm² KFRQ20 18-14 AWG Quick Splice Connectors(U) KF2 KF2   19.5  27.0  0.8  Blue 500
1~2.5mm² KFRQ21 18-14 AWG Quick Splice Connectors(U)KF2W KF2W   19.5  27.0  0.8  White 500
4~6mm² KFRQ30 12-10 AWG Quick Splice Connectors(U)KF5 KF5   20.0  35.0  0.8  Yellow 200
