Nylon-Insulated Male Quick Disconnectors Suppliers

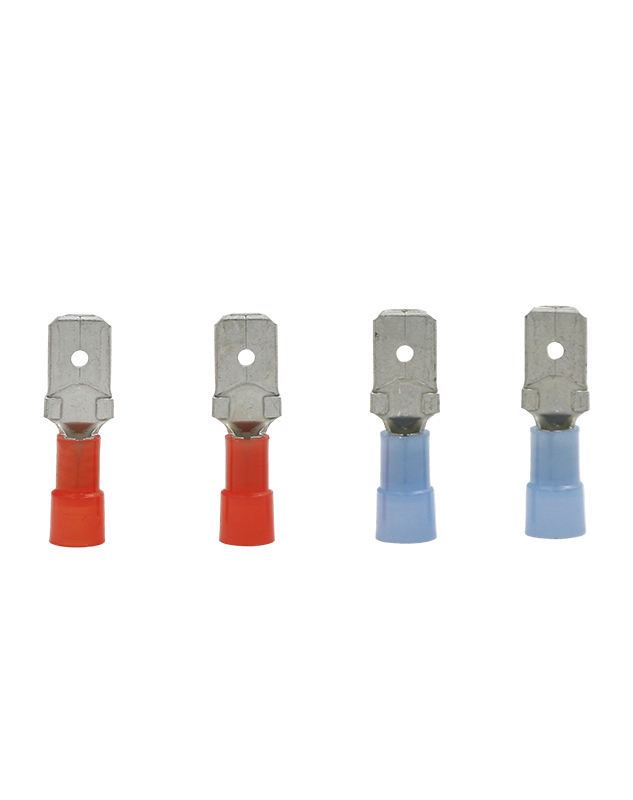

Nylon-Insulated Male Quick Disconnectors

Nylon-Insulated Male Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 730

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 10 15 24
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L d D H Thickness
A.W.G. 22-16 KFQNM110 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-110(5) MDNY 1.25-110(5)   0.110 0.768 0.079 0.157 0.394 0.020 Red IZUMI  3# 1000
A.W.G. 22-16 KFQNM111 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-110(8) MDNY 1.25-110(8)   0.110 0.768 0.079 0.157 0.394 0.031 Red IZUMI  3# 1000
A.W.G. 22-16 KFQNM112 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-187(5) MDNY 1.25-187(5)   0.187 0.807 0.079 0.157 0.394 0.020 Red IZUMI  3# 1000
A.W.G. 22-16 KFQNM113 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-187(8) MDNY 1.25-110(8)   0.187 0.807 0.079 0.157 0.394 0.031 Red IZUMI  3# 1000
A.W.G. 22-16 KFQNM114 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-250 MDNY 1.25-250   0.250 0.846 0.079 0.157 0.394 0.031 Red IZUMI  3# 1000
A.W.G. 16~14 KFQNM120 16-14 AWG Nylon-Insulated Male Quick Disconnectors MDNY 2-187(5) MDNY 2-187(5)   0.187 0.807 0.098 0.177 0.413 0.020 Blue IZUMI  4# 1000
A.W.G. 16~14 KFQNM121 16-14 AWG Nylon-Insulated Male Quick Disconnectors MDNY 2-187(8) MDNY 2-187(8)   0.187 0.807 0.098 0.177 0.413 0.031 Blue IZUMI  4# 1000
A.W.G. 16~14 KFQNM122 16-14 AWG Nylon-Insulated Male Quick Disconnectors MDNY 2-250 MDNY 2-250   0.250 0.846 0.098 0.177 0.413 0.031 Blue IZUMI  4# 1000
A.W.G. 12~10 KFQNM130 12-10 AWG Nylon-Insulated Male Quick Disconnectors MDNY 5.5-250 MDNY 5.5-250   0.250 0.965 0.138 0.276 0.531 0.031 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L d D H Thickness
0.5~1.5mm² KFQNM110 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-110(5) MDNY 1.25-110(5)   2.8  19.5  2.0  4.0  10.0  0.50  Red IZUMI  3# 1000
0.5~1.5mm² KFQNM111 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-110(8) MDNY 1.25-110(8)   2.8  19.5  2.0  4.0  10.0  0.80  Red IZUMI  3# 1000
0.5~1.5mm² KFQNM112 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-187(5) MDNY 1.25-187(5)   4.8  20.5  2.0  4.0  10.0  0.50  Red IZUMI  3# 1000
0.5~1.5mm² KFQNM113 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-187(8) MDNY 1.25-110(8)   4.8  20.5  2.0  4.0  10.0  0.80  Red IZUMI  3# 1000
0.5~1.5mm² KFQNM114 22-16 AWG Nylon-Insulated Male Quick Disconnectors MDNY 1.25-250 MDNY 1.25-250   6.4  21.5  2.0  4.0  10.0  0.80  Red IZUMI  3# 1000
1.5~2.5mm² KFQNM120 16-14 AWG Nylon-Insulated Male Quick Disconnectors MDNY 2-187(5) MDNY 2-187(5)   4.8  20.5  2.5  4.5  10.5  0.50  Blue IZUMI  4# 1000
1.5~2.5mm² KFQNM121 16-14 AWG Nylon-Insulated Male Quick Disconnectors MDNY 2-187(8) MDNY 2-187(8)   4.8  20.5  2.5  4.5  10.5  0.80  Blue IZUMI  4# 1000
1.5~2.5mm² KFQNM122 16-14 AWG Nylon-Insulated Male Quick Disconnectors MDNY 2-250 MDNY 2-250   6.4  21.5  2.5  4.5  10.5  0.80  Blue IZUMI  4# 1000
4~6mm² KFQNM30 12-10 AWG Nylon-Insulated Male Quick Disconnectors MDNY 5.5-250 MDNY 5.5-250   6.4  24.5  3.5  7.0  13.50  0.80  Yellow IZUMI  5# 500
