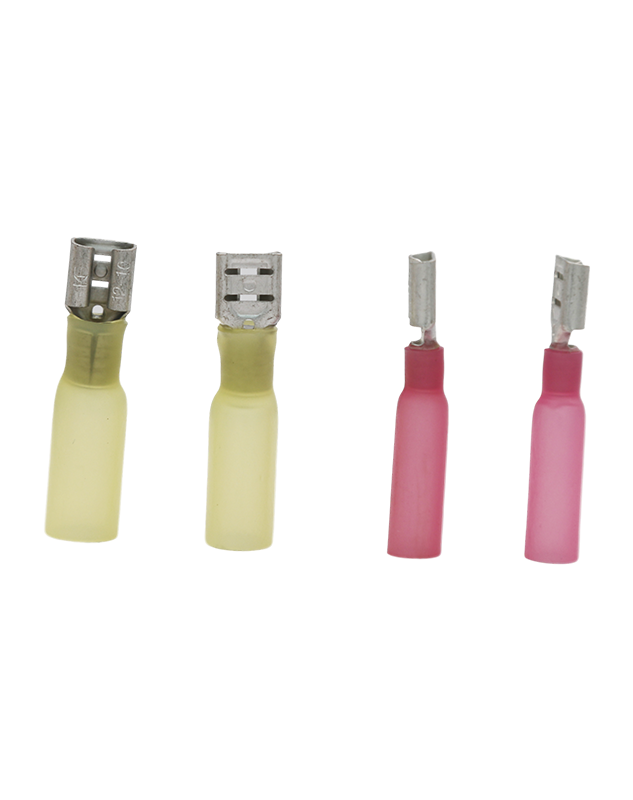

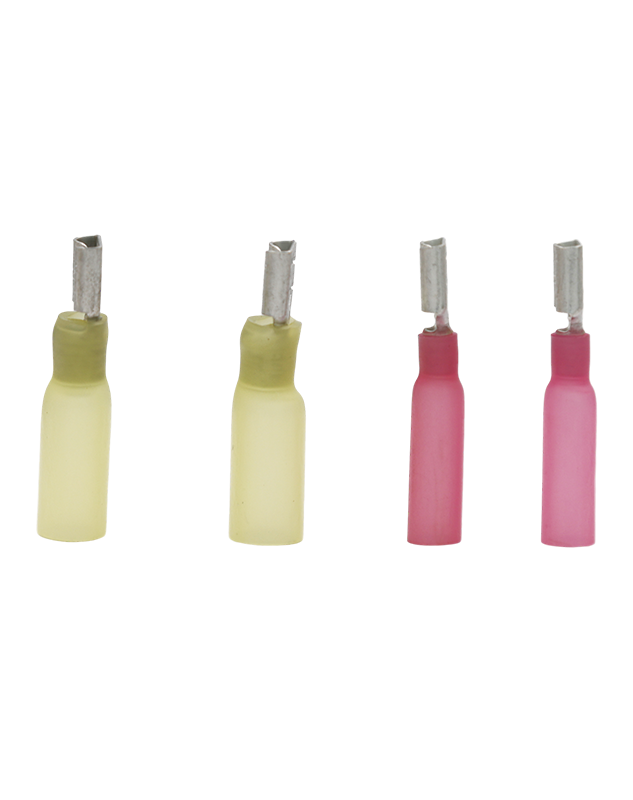

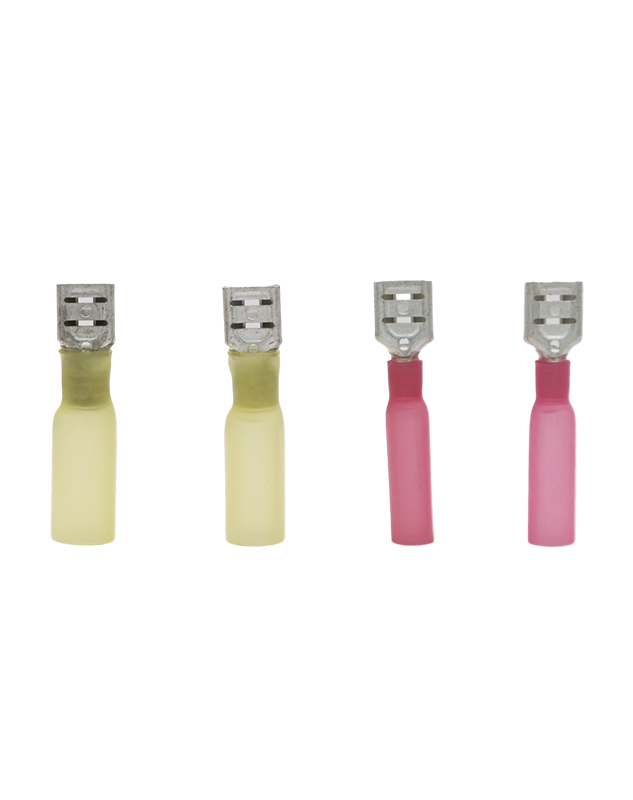

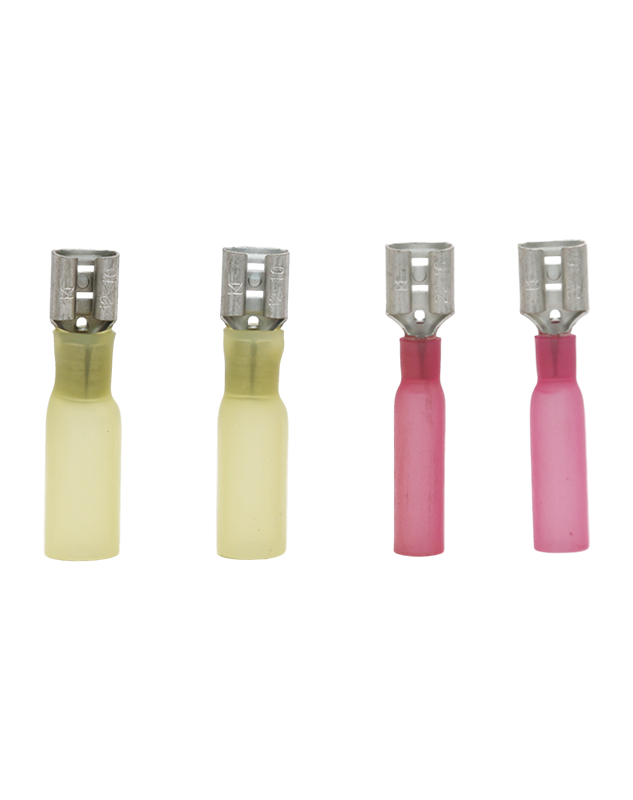

Heat Shrink-Insulated Female Quick Disconnectors

Heat Shrink-Insulated Female Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,079

Product Details

Spec (American AWG)

 22-16 16-14 12-10

Spec (JIS AWG)

 1.25 2 5.5

Spec (DIN AWG)

 1 2.5 4.0-6.0

Spec (GB mm2)

 0.5-1.5 2.5 6

Max Current

  19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L D Thickness
A.W.G. 22～16 KFQHF10 22-16 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 1.25-110(5) FDH 1.25-110(5)   0.138 1.220 0.197 0.014 Red IZUMI  3# 1000
A.W.G. 22～16 KFQHF11 22-16 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 1.25-187(5) FDH 1.25-187(5)   0.197 1.220 0.197 0.014 Red IZUMI  3# 1000
A.W.G. 22～16 KFQHF12 22-16 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 1.25-250 FDH 1.25-250   0.256 1.260 0.197 0.016 Red IZUMI  3# 1000
A.W.G. 16～14 KFQHF20 16-14 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 2-187(5) FDH 2-187(5)   0.197 1.220 0.236 0.014 Blue IZUMI  4# 1000
A.W.G. 16～14 KFQHF21 16-14 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 2-250 FDH 2-250   0.256 1.260 0.236 0.016 Blue IZUMI  4# 1000
A.W.G. 12～10 KFQHF30 12-10 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 5.5-250 FDH 5.5-250   0.256 1.299 0.256 0.016 Yellow IZUMI  5# 1000
A.W.G. 12～10 KFQHF31 12-10 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 5.5-375 FDH 5.5-375   0.394 1.535 0.256 0.020 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L D Thickness
0.5～1.5mm² KFQHF10 22-16 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 1.25-110(5) FDH 1.25-110(5)   3.5  31.0  5.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQHF11 22-16 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 1.25-187(5) FDH 1.25-187(5)   5.0  31.0  5.0  0.35  Red IZUMI  3# 1000
0.5～1.5mm² KFQHF12 22-16 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 1.25-250 FDH 1.25-250   6.5  32.0  5.0  0.40  Red IZUMI  3# 1000
1.5～2.5mm² KFQHF20 16-14 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 2-187(5) FDH 2-187(5)   5.0  31.0  6.0  0.35  Blue IZUMI  4# 1000
1.5～2.5mm² KFQHF21 16-14 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 2-250 FDH 2-250   6.5  32.0  6.0  0.40  Blue IZUMI  4# 1000
4～6mm² KFQHF30 12-10 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 5.5-250 FDH 5.5-250   6.5  33.0  6.5  0.40  Yellow IZUMI  5# 1000
4～6mm² KFQHF31 12-10 AWG Heat Shrink-Insulated Female Quick Disconnectors FDH 5.5-375 FDH 5.5-375   10.0  39.0  6.5  0.50  Yellow IZUMI  5# 500
