Non-Insulated Pin Terminals Suppliers

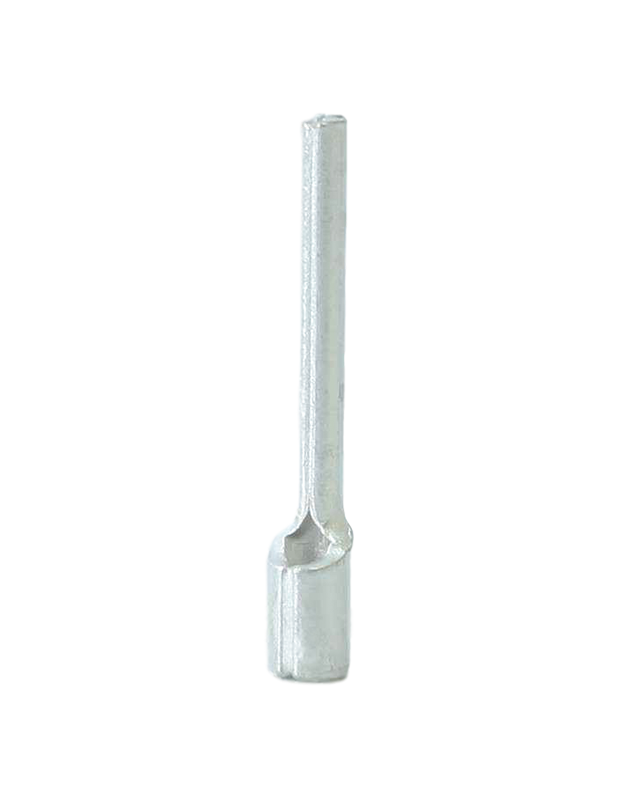

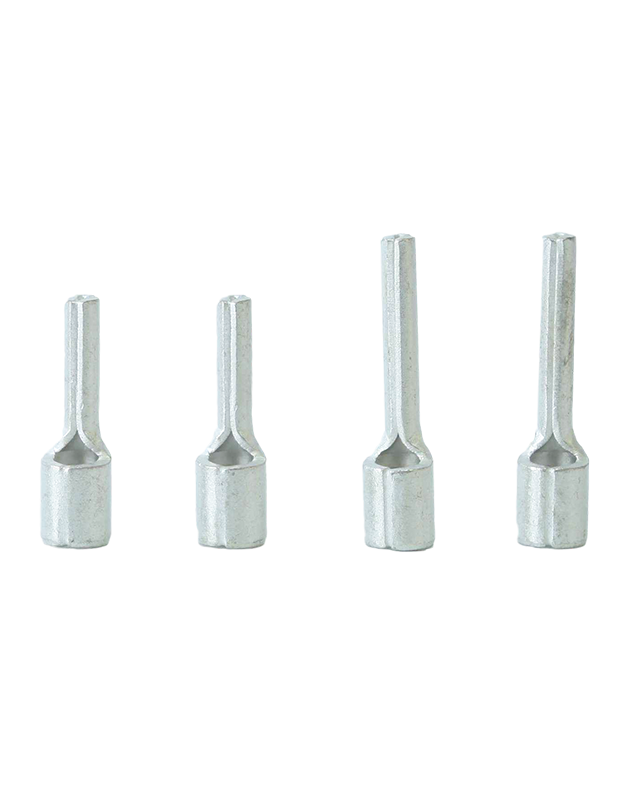

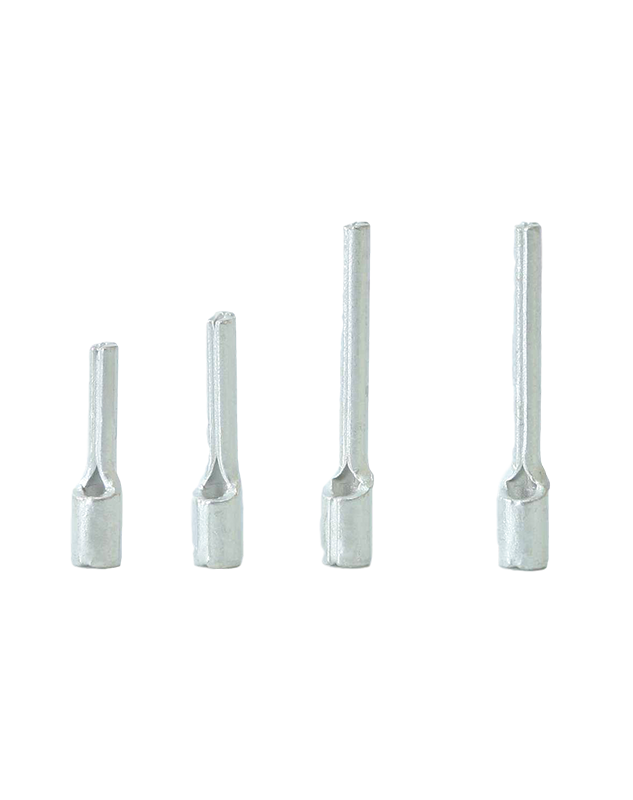

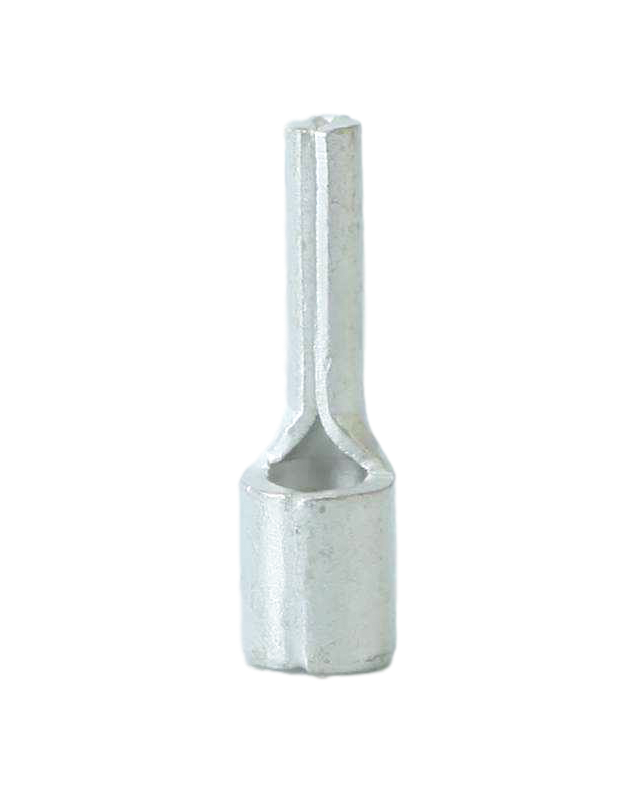

Non-Insulated Pin Terminals

Non-Insulated Pin Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,443

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6.0  10
Max Current   19 27 37 48.0  62

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

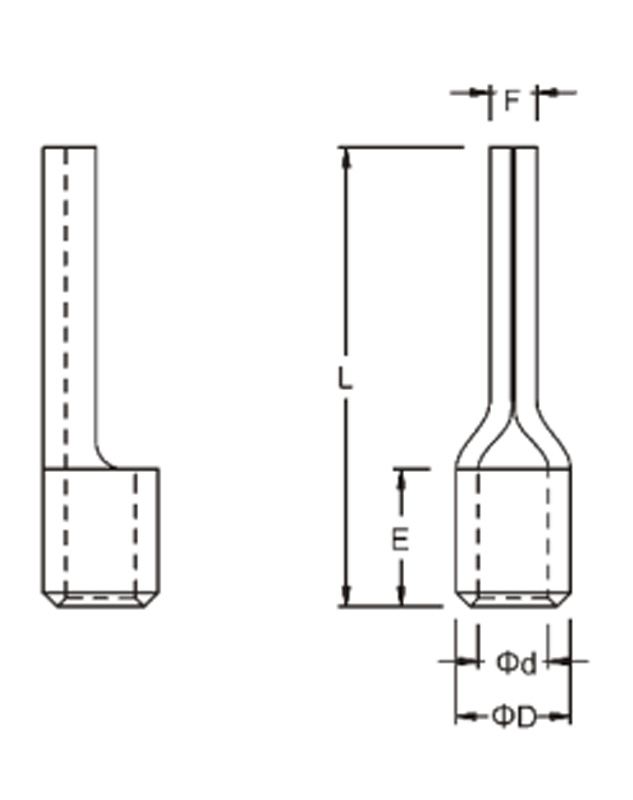

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA L F E D d Thickness
A.W.G. 26-22 KFO0400 26-22 AWG Non-insulated Pin Terminal 1.25-10 PTN0.5-9   0.709 0.055   0.087   0.020 IZUMI 5N18 1000
A.W.G. 22-16 KFO0410 22-16 AWG Non-insulated Pin Terminal 1.25-10 PTN1.25-10   0.591 0.079 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0411 22-16 AWG Non-insulated Pin Terminal 1.25-12 PTN1.25-12   0.669 0.079 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16 KFO0412 22-16 AWG Non-insulated Pin Terminal 1.25-18 PTN1.25-18   0.906 0.079 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 16-14  KFO0420 16-14 AWG Non-insulated Pin Terminal 2-10 PTN2-10   0.591 0.079 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0421 16-14 AWG Non-insulated Pin Terminal 2-12 PTN2-12   0.669 0.079 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14 KFO0422 16-14 AWG Non-insulated Pin Terminal 2-18 PTN2-18   0.906 0.079 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 14-12 KFO0430 14-12 AWG Non-insulated Pin Terminal 3.5-10 PTN3.5-10   0.650 0.118 0.256 0.197 0.118 0.039 IZUMI 5N18 1000
A.W.G. 14-12 KFO0431 14-12 AWG Non-insulated Pin Terminal 3.5-13 PTN3.5-13   0.768 0.118 0.256 0.197 0.118 0.039 IZUMI 5N18 1000
A.W.G. 14-12 KFO0440 12-10 AWG Non-insulated Pin Terminal 5.5-13 PTN5.5-13   0.787 0.118 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 14-12 KFO0441 12-10 AWG Non-insulated Pin Terminal 5.5-18 PTN5.5-18   0.984 0.118 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric L F E D d Thickness
0.2~0.5mm² KFO0400 26-22 AWG Non-insulated Pin Terminal 1.25-10 PTN0.5-9   18.0 1.4   2.2   0.5 IZUMI #5N18 1000
0.5~1.5mm² KFO0410 22-16 AWG Non-insulated Pin Terminal 1.25-10 PTN1.25-10   15.0 2.0 5.0 3.5 2.0 0.75 IZUMI #5N18 1000
0.5~1.5mm² KFO0411 22-16 AWG Non-insulated Pin Terminal 1.25-12 PTN1.25-12   17.0 2.0 5.0 3.5 2.0 0.75 IZUMI #5N18 1000
0.5~1.5mm² KFO0412 22-16 AWG Non-insulated Pin Terminal 1.25-18 PTN1.25-18   23.0 2.0 5.0 3.5 2.0 0.75 IZUMI #5N18 1000
1.5~2.5mm² KFO0420 16-14 AWG Non-insulated Pin Terminal 2-10 PTN2-10   15.0 2.0 5.0 4.0 2.5 0.8 IZUMI #5N18 1000
1.5~2.5mm² KFO0421 16-14 AWG Non-insulated Pin Terminal 2-12 PTN2-12   17.0 2.0 5.0 4.0 2.5 0.8 IZUMI #5N18 1000
1.5~2.5mm² KFO0422 16-14 AWG Non-insulated Pin Terminal 2-18 PTN2-18   23.0 2.0 5.0 4.0 2.5 0.8 IZUMI #5N18 1000
2.5~4.0mm² KFO0430 14-12 AWG Non-insulated Pin Terminal 3.5-10 PTN3.5-10   16.5 3.0 6.5 5.0 3.0 1.0 IZUMI #5N18 1000
2.5~4.0mm² KFO0431 14-12 AWG Non-insulated Pin Terminal 3.5-13 PTN3.5-13   19.5 3.0 6.5 5.0 3.0 1.0 IZUMI #5N18 1000
4.0~6.0mm² KFO0440 12-10 AWG Non-insulated Pin Terminal 5.5-13 PTN5.5-13   20.0 3.0 7.0 5.5 3.5 1.0 IZUMI #5N18 1000
4.0~6.0mm² KFO0441 12-10 AWG Non-insulated Pin Terminal 5.5-18 PTN5.5-18   25.0 3.0 7.0 5.5 3.5 1.0 IZUMI #5N18 1000
