Nylon-Fully Insulated Female Quick Disconnectors Suppliers

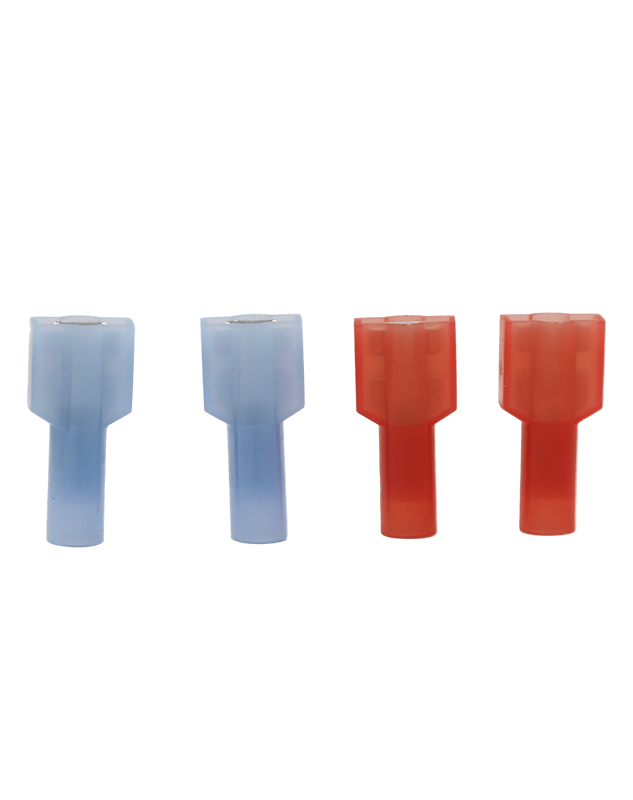

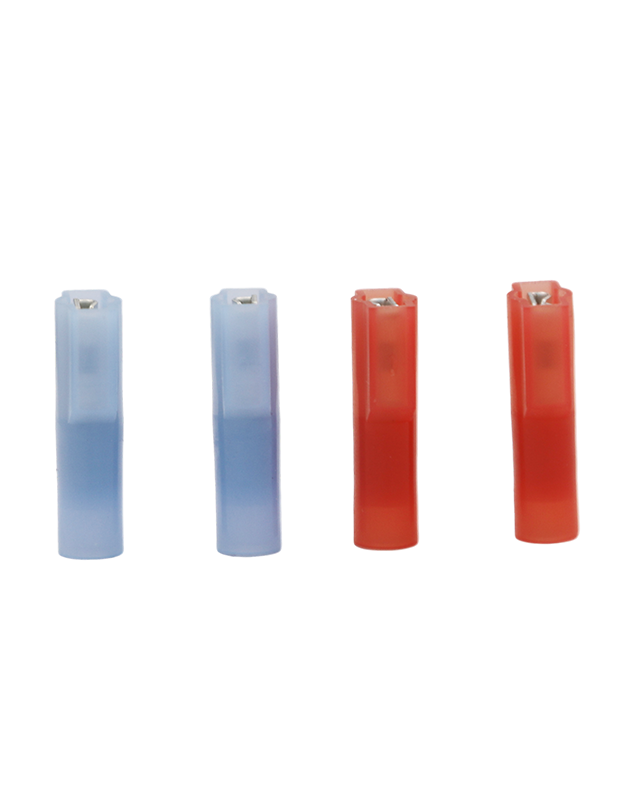

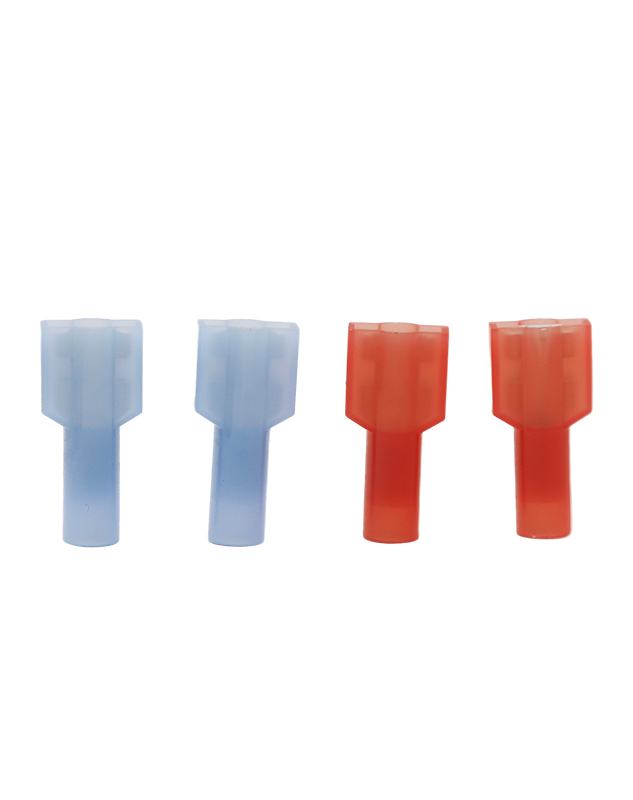

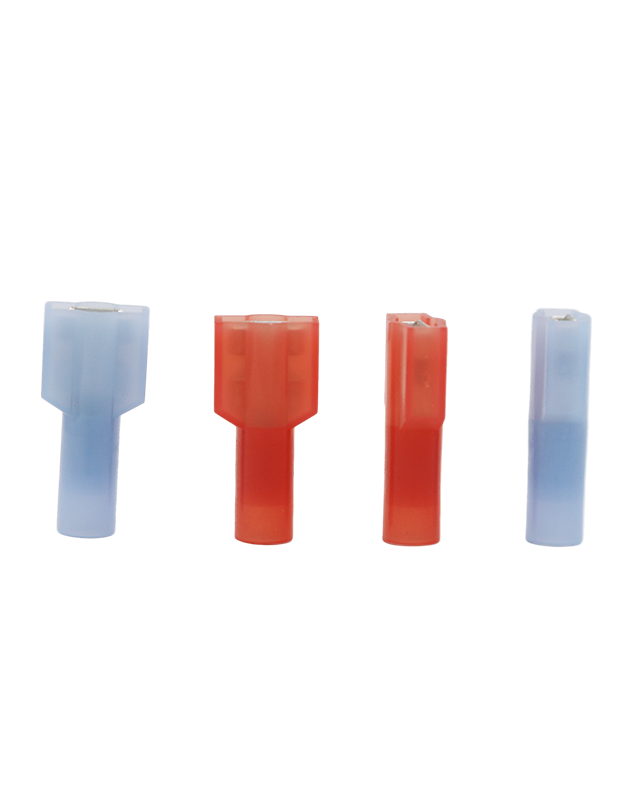

Nylon-Fully Insulated Female Quick Disconnectors

Nylon-Fully Insulated Female Quick Disconnectors

Brand

KF

Finish/Coating

Tinned

Base Materials

Brass,Nylon

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 484

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 10 15 24
Operating Voltage 600V
Temperature Withstand 105℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA W F L B D C Thickness
A.W.G. 22-16 KFQNF210 22-16 AWG Nylon-Fully Insulated Female Quick Disconnectors FDFNY 1.25-250 FDFNY 1.25-250   0.256 0.295 0.866 0.453 0.177 0.079 0.018 Red IZUMI  3# 1000
A.W.G. 16~14 KFQNF220 16-14 AWG Nylon-Fully Insulated Female Quick Disconnectors FDFNY 2-250 FDFNY 2-250   0.256 0.295 0.886 0.472 0.177 0.098 0.018 Blue IZUMI  4# 1000
A.W.G. 12~10 KFQNF230 12-10 AWG Nylon-Fully Insulated Female Quick Disconnectors FDFNY 5.5-250 FDFNY 5.5-250   0.256 0.295 0.906 0.472 0.197 0.138 0.018 Yellow IZUMI  5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric W F L B D C Thickness
0.5~1.5mm² KFQNF210 22-16 AWG Nylon-Fully Insulated Female Quick Disconnectors FDFNY 1.25-250 FDFNY 1.25-250   6.5  7.5  22.0  11.5  4.5  2.00  0.45  Red IZUMI  3# 1000
1.5~2.5mm² KFQNF220 16-14 AWG Nylon-Fully Insulated Female Quick Disconnectors FDFNY 2-250 FDFNY 2-250   6.5  7.5  22.5  12.0  4.5  2.50  0.45  Blue IZUMI  4# 1000
4~6mm² KFQNF230 12-10 AWG Nylon-Fully Insulated Female Quick Disconnectors FDFNY 5.5-250 FDFNY 5.5-250   6.5  7.5  23.0  12.0  5.0  3.50  0.45  Yellow IZUMI  5# 500
