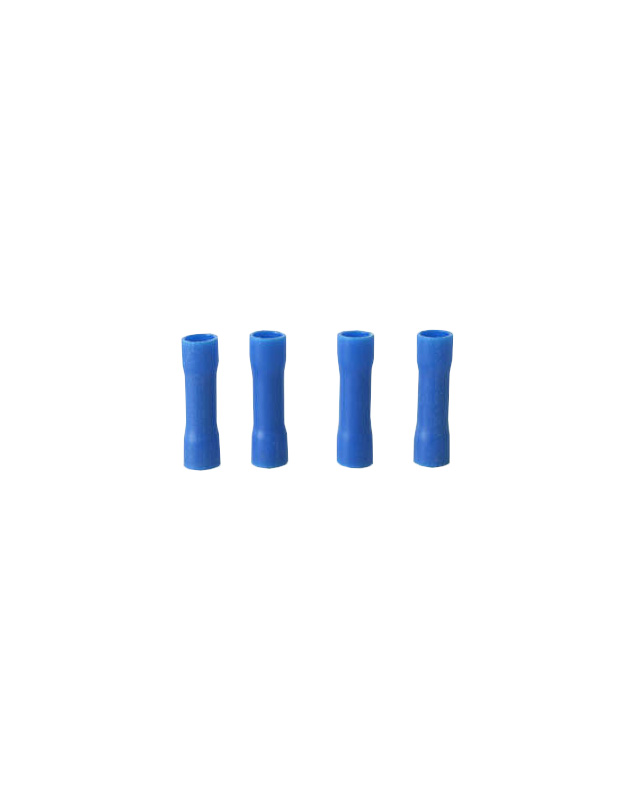

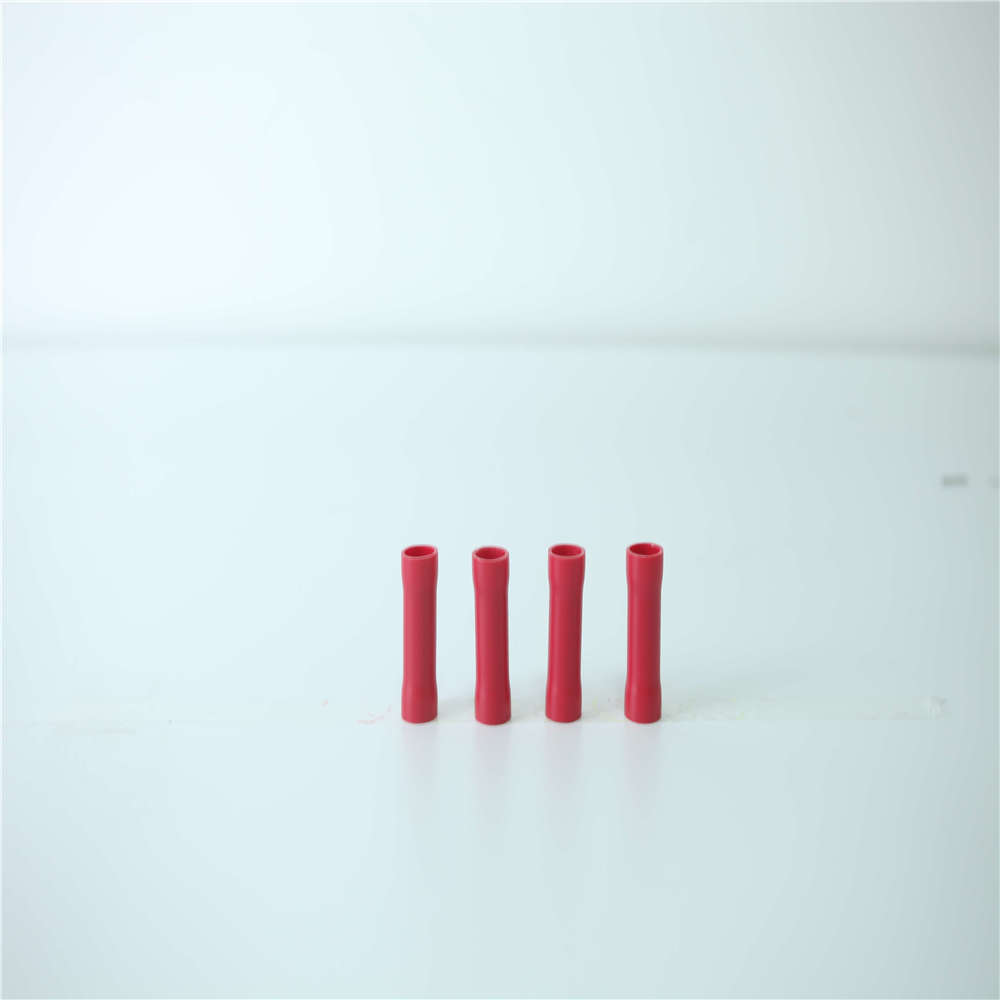

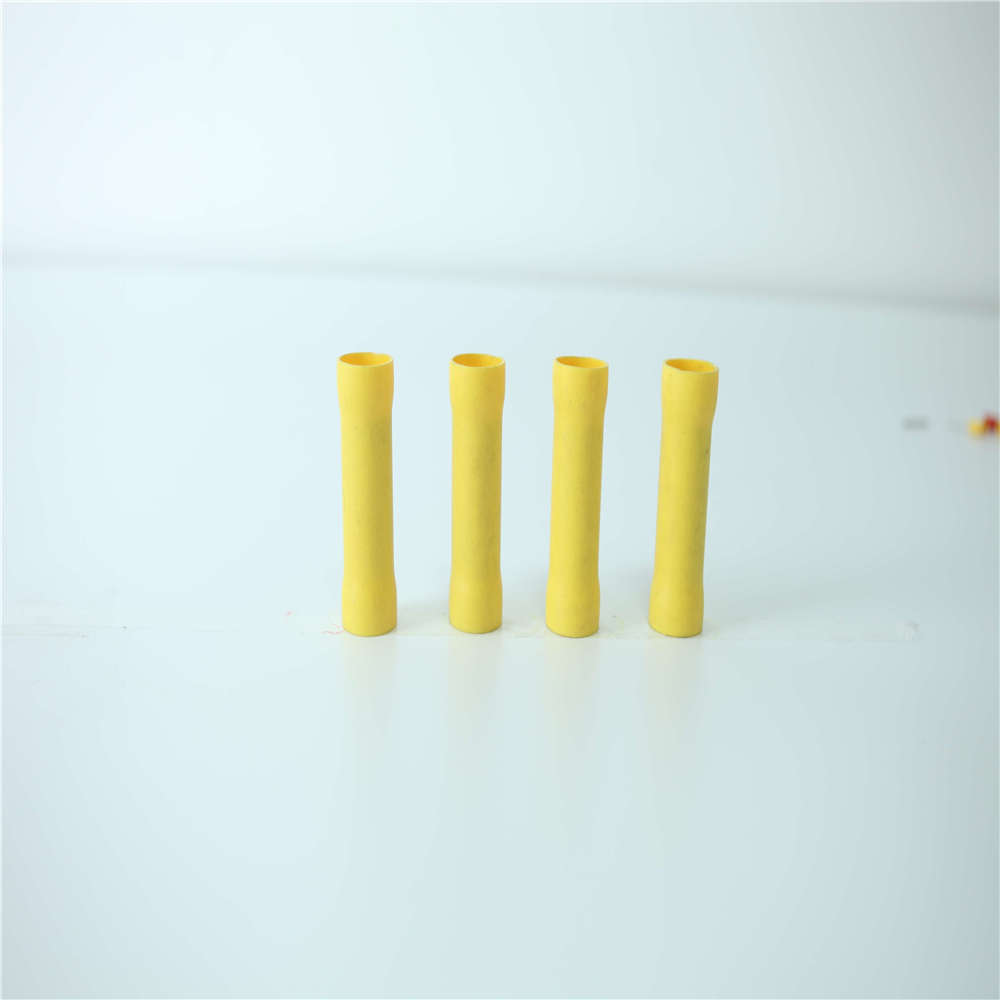

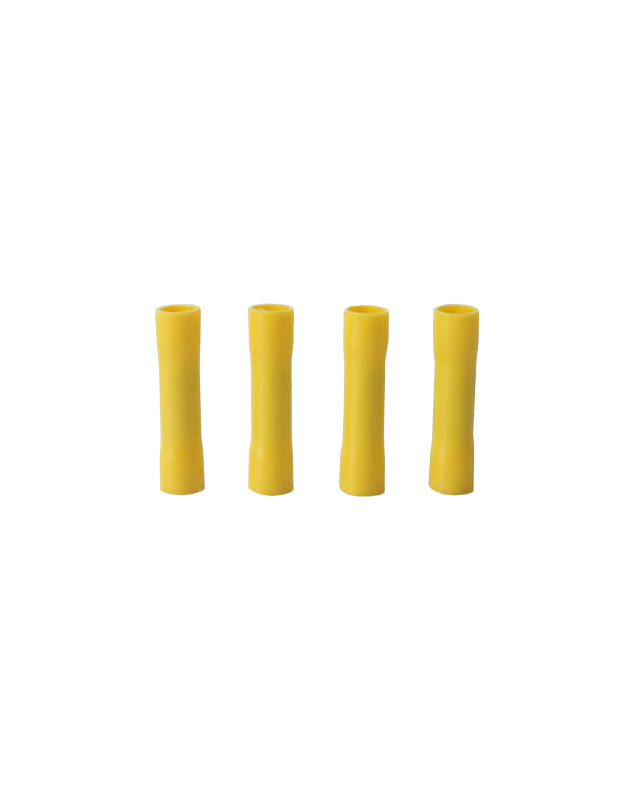

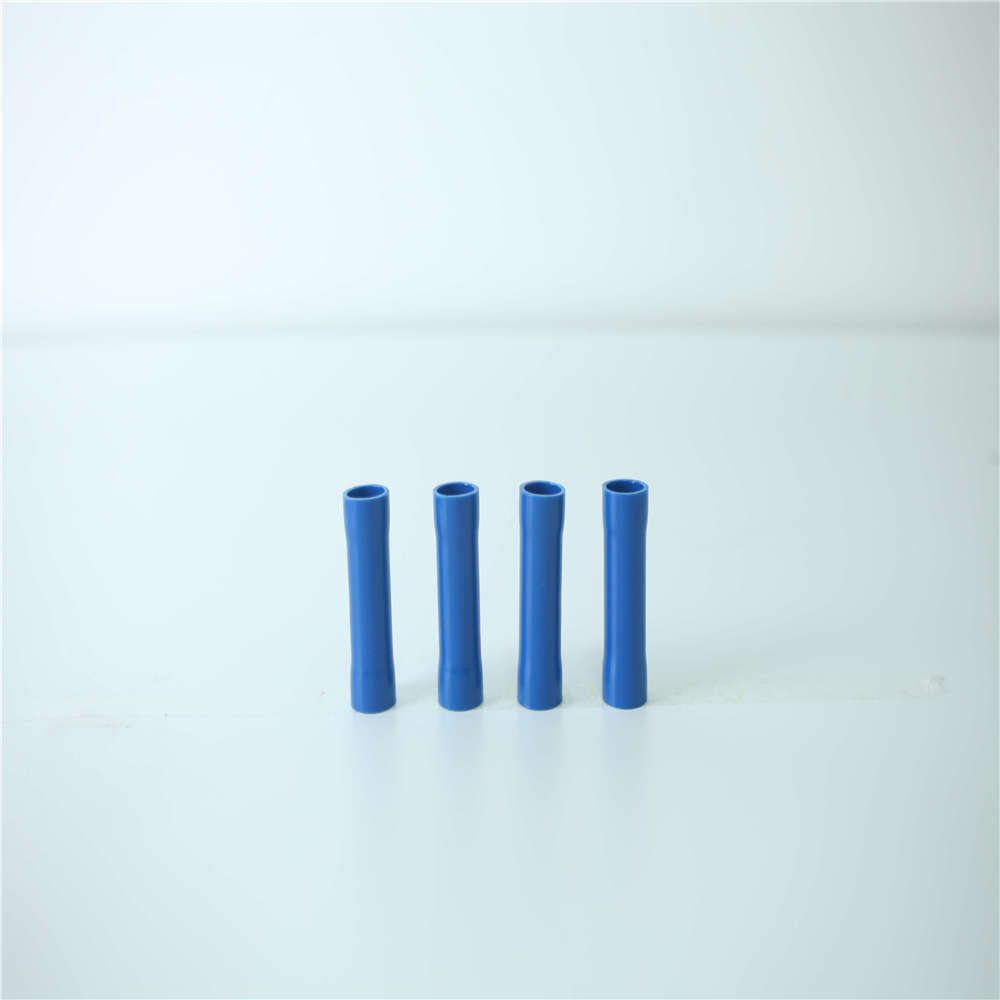

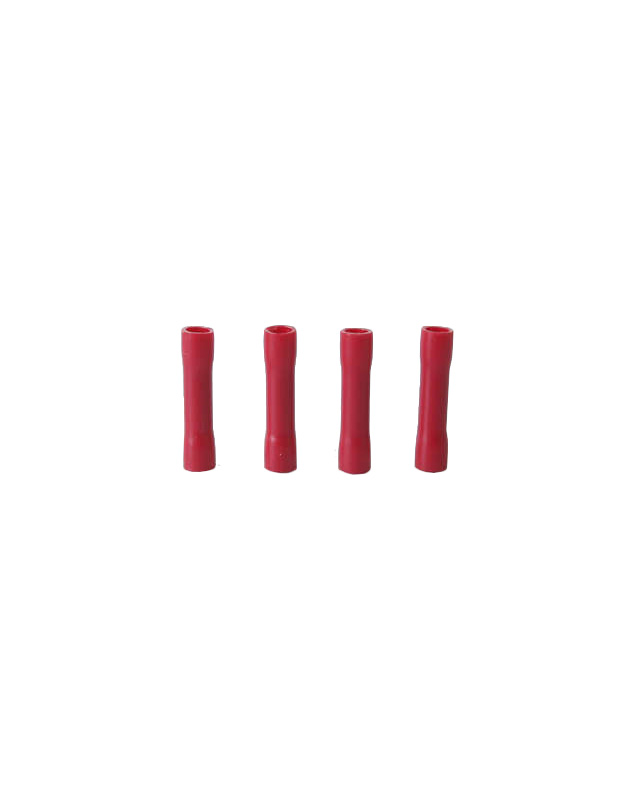

Vinyl-Insulated Butt Splice Connectors (Parallel)

Vinyl-Insulated Butt Splice Connectors (Parallel)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,162

Product Details

Spec (American AWG)

 26-22

22-16

16-1 4

12-10

8

6

4

 2

Spec (JIS AWG)

 0.5

1.25

2

5.5

8

14

22

 38

Spec (DIN AWG)

 0.5

1

2.5

4.0-6.0

10

16

25

 35

Spec (GB mm2)

 0.1-0.5

0.5-1.5

2.5

6

10

16

25

 35

Max Current

 9

19

27

48

62

88

115

 160
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA I d L
A.W.G. 26-22  KFBVS10 26-22 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT0.5 PVT0.5   0.315 0.059 0.531 Yellow OPT SN-02C 1000
A.W.G. 22-16  KFBVS20 22-16 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT1.25 PVT1.25   0.315 0.067 0.650 Red IZUMI 3# 1000
A.W.G. 16~14 KFBVS30 16-14 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT2 PVT2   0.315 0.098 0.650 Blue IZUMI 4# 1000
A.W.G. 12~10 KFBVS40 12-10 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT5.5 PVT5.5   0.335 0.138 0.787 Yellow IZUMI 5# 1000
A.W.G.8 KFBVS50 8 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT8 PVT8   0.374 0.177 0.945 Red OPT TP-80 500
A.W.G. 6 KFBVS60 6 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT14 PVT14   0.433 0.236 1.181 Blue OPT TP-80 500
A.W.G. 4 KFBVS70 4 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT22 PVT22   0.531 0.315 1.457 Yellow OPT TP-80 500
A.W.G. 2 KFBVS80 2 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT38 PVT38   0.650 0.374 1.555 Red OPT TP-80 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric I d L
0.2~0.5mm² KFBVS10 26-22 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT0.5 PVT0.5   8.0  1.5  13.50  Yellow OPT SN-02C 1000
0.5~1.5mm² KFBVS20 22-16 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT1.25 PVT1.25   8.0  1.7  16.50  Red IZUMI 3# 1000
1.5~2.5mm² KFBVS30 16-14 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT2 PVT2   8.0  2.5  16.50  Blue IZUMI 4# 1000
4~6mm² KFBVS40 12-10 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT5.5 PVT5.5   8.5  3.5  20.00  Yellow IZUMI 5# 1000
8mm² KFBVS50 8 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT8 PVT8   9.5  4.5  24.00  Red OPT TP-80 500
14mm² KFBVS60 6 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT14 PVT14   11.0  6.0  30.00  Blue OPT TP-80 500
22mm² KFBVS70 4 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT22 PVT22   13.5  8.0  37.00  Yellow OPT TP-80 500
38mm² KFBVS80 2 AWG Vinyl-Insulated Butt Splice Connectors (Parallel) PVT38 PVT38   16.5  9.5  39.50  Red OPT TP-80 500
