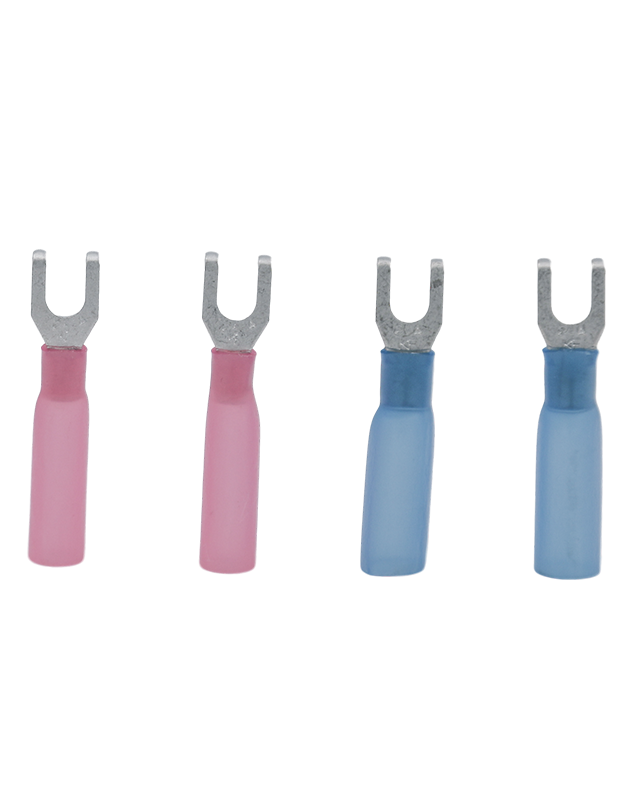

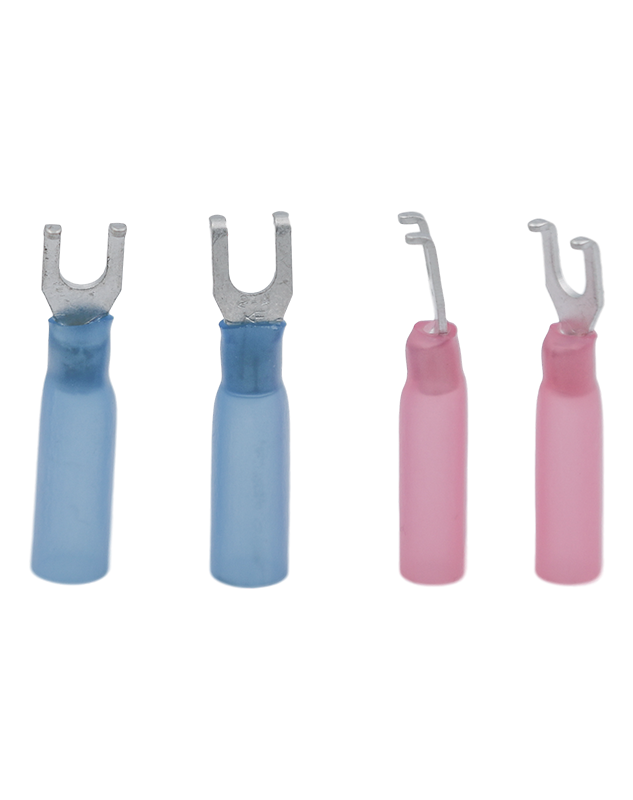

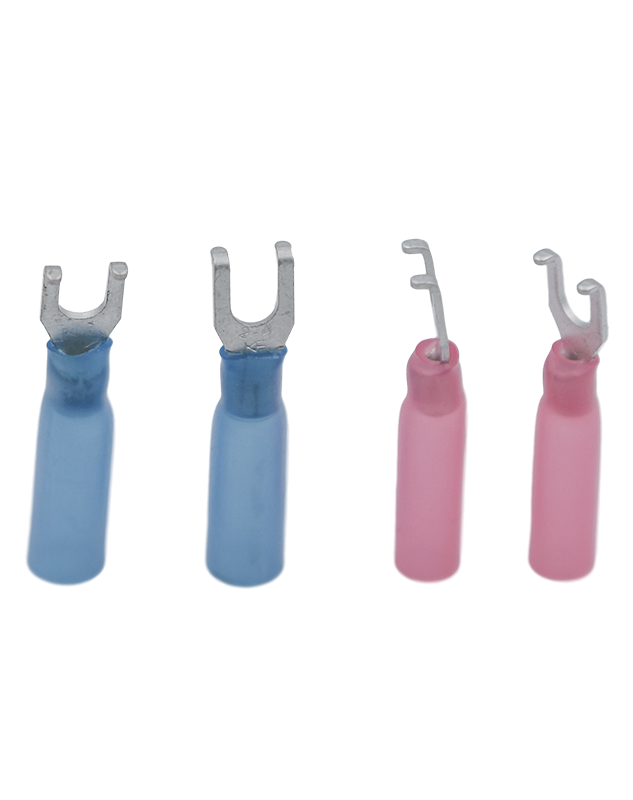

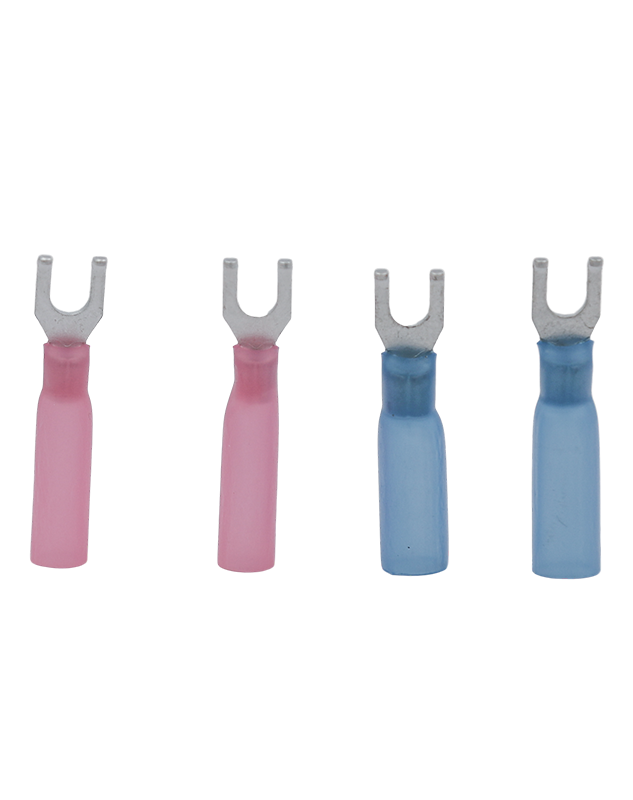

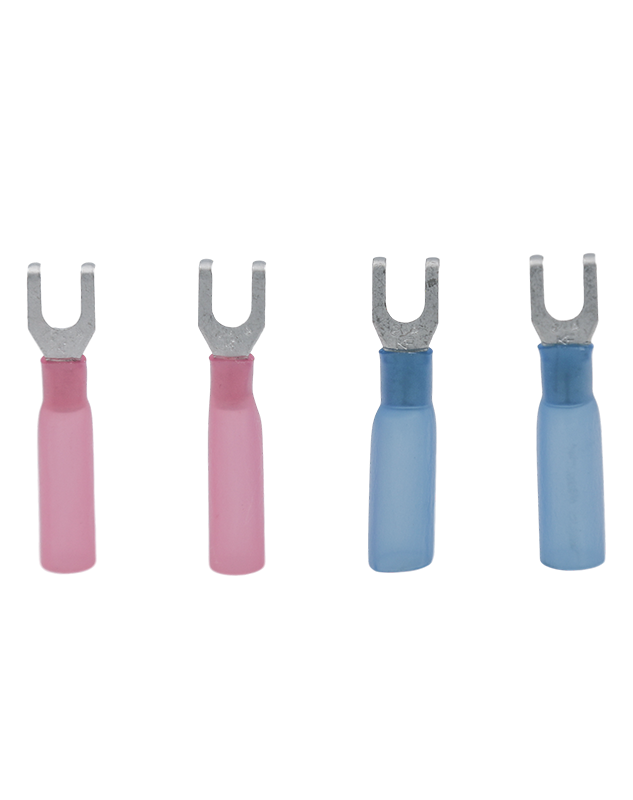

Heat Shrink-Insulated Single Crimp Flange Spade Terminals

Heat Shrink-Insulated Single Crimp Flange Spade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PE

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 332

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 19 27 48
Operating Voltage 600V
Heat Shrinkable Temperature 150℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L T
A.W.G. 22-16 KFSH210 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH1.25-3.5 #6 0.146 0.256 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH211 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH1.25-4 #8 0.169 0.276 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH212 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH1.25-5 #10 0.209 0.374 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH220 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH2-3.5 #6 0.146 0.276 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH221 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH2-4 #8 0.169 0.276 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH222 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH2-5 #10 0.209 0.374 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH230 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH5.5-3.5 #6 0.146 0.335 1.398 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH231 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH5.5-4 #8 0.169 0.335 1.398 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH232 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH5.5-5 #10 0.209 0.354 1.398 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L T
0.5~1.5mm² KFSH210 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH1.25-3.5 3.5  3.7  6.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH211 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH1.25-4 4.0  4.3  7.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH212 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH1.25-5 5.0  5.3  9.5  33.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSH220 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH2-3.5 3.5  3.7  7.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH221 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH2-4 4.0  4.3  7.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH222 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH2-5 5.0  5.3  9.5  33.0  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSH230 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH5.5-3.5 3.5  3.7  8.5  35.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH231 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH5.5-4 4.0  4.3  8.5  35.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH232 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH5.5-5 5.0  5.3  9.0  35.5  1.0  Yellow IZUMI 5# 1000







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA d2 B L T
A.W.G. 22-16 KFSH210 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH1.25-3.5 #6 0.146 0.256 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH211 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH1.25-4 #8 0.169 0.276 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 22-16 KFSH212 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH1.25-5 #10 0.209 0.374 1.299 0.030 Red IZUMI 3# 1000
A.W.G. 16-14 KFSH220 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH2-3.5 #6 0.146 0.276 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH221 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH2-4 #8 0.169 0.276 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSH222 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH2-5 #10 0.209 0.374 1.299 0.031 Blue IZUMI 4# 1000
A.W.G. 12-10 KFSH230 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH5.5-3.5 #6 0.146 0.335 1.398 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH231 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH5.5-4 #8 0.169 0.335 1.398 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSH232 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH5.5-5 #10 0.209 0.354 1.398 0.039 Yellow IZUMI 5# 1000
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric d2 B L T
0.5~1.5mm² KFSH210 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH1.25-3.5 3.5  3.7  6.5  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH211 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH1.25-4 4.0  4.3  7.0  33.0  0.75  Red IZUMI 3# 1000
0.5~1.5mm² KFSH212 22-16 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH1.25-5 5.0  5.3  9.5  33.0  0.75  Red IZUMI 3# 1000
1.5~2.5mm² KFSH220 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH2-3.5 3.5  3.7  7.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH221 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH2-4 4.0  4.3  7.0  33.0  0.80  Blue IZUMI 4# 1000
1.5~2.5mm² KFSH222 16-14 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH2-5 5.0  5.3  9.5  33.0  0.80  Blue IZUMI 4# 1000
4.0~6.0mm² KFSH230 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-3.5 FSH5.5-3.5 3.5  3.7  8.5  35.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH231 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-4 FSH5.5-4 4.0  4.3  8.5  35.5  1.0  Yellow IZUMI 5# 1000
4.0~6.0mm² KFSH232 12-10 AWG Heat Shrink-Insulated Single Crimp Flange Spade Terminals 1.25-5 FSH5.5-5 5.0  5.3  9.0  35.5  1.0  Yellow IZUMI 5# 1000
