Vinyl-Insulated Single Crimp Lipped Blade Terminals

Vinyl-Insulated Single Crimp Lipped Blade Terminals

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper,PVC

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 593

Product Details

Spec (American AWG)

22-16 16-14 12-10

Spec (JIS AWG)

1.25 2 5.5

Spec (DIN AWG)

1 2.5 4.0-6.0

Spec (GB mm2)

0.5-1.5 2.5 6

Max Current

 19 27 48
Operating Voltage 600V
Temperature Withstand 75℃

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU# Description MFG# Stud Size  Dimensions Inch Color Tool PCS/Pack
USA B L F H D Thickness

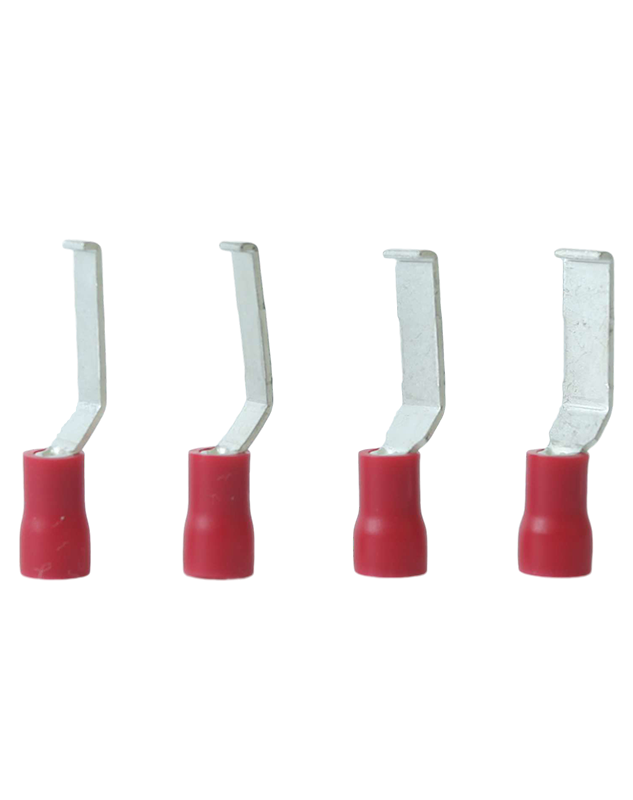

A.W.G. 22-16 KFSV610 22-16 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 1.25-3 LBV1.25-3   0.118 1.024 0.63 0.394 0.177 0.030  Red IZUMI 3# 1000
A.W.G. 22-16 KFSV611 22-16 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 1.25-4.6 LBV1.25-4.6   0.181 1.024 0.63 0.394 0.177 0.030  Red IZUMI 3# 1000

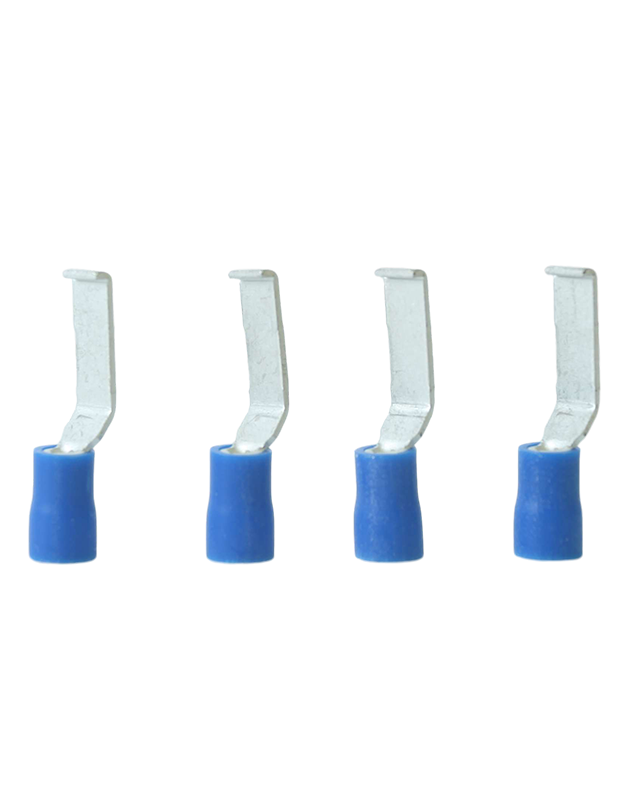

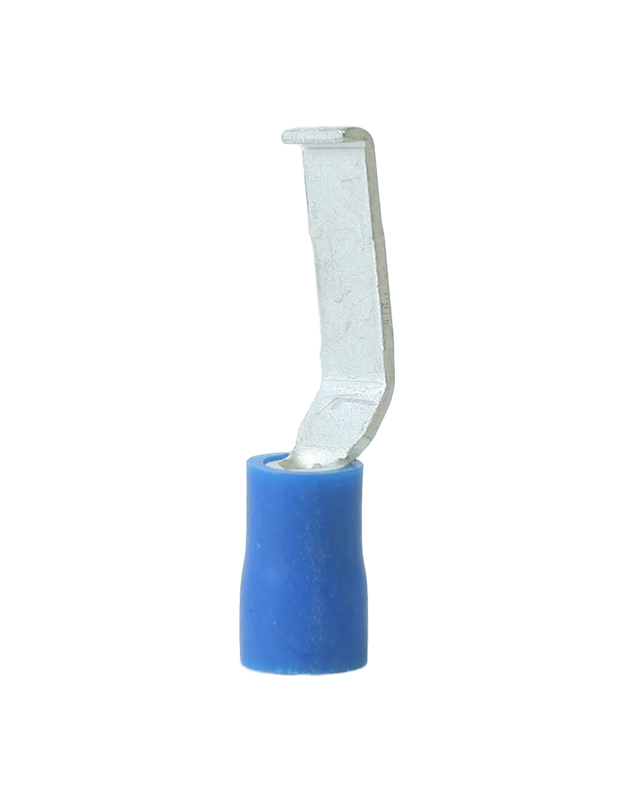

A.W.G. 16-14 KFSV620 16-14 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 2-3 LBV2-3   0.118 1.063 0.669 0.394 0.197 0.031 Blue IZUMI 4# 1000
A.W.G. 16-14 KFSV621 16-14 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 2-4.6 LBV2-4.6   0.181 1.063 0.669 0.394 0.197 0.031 Blue IZUMI 4# 1000

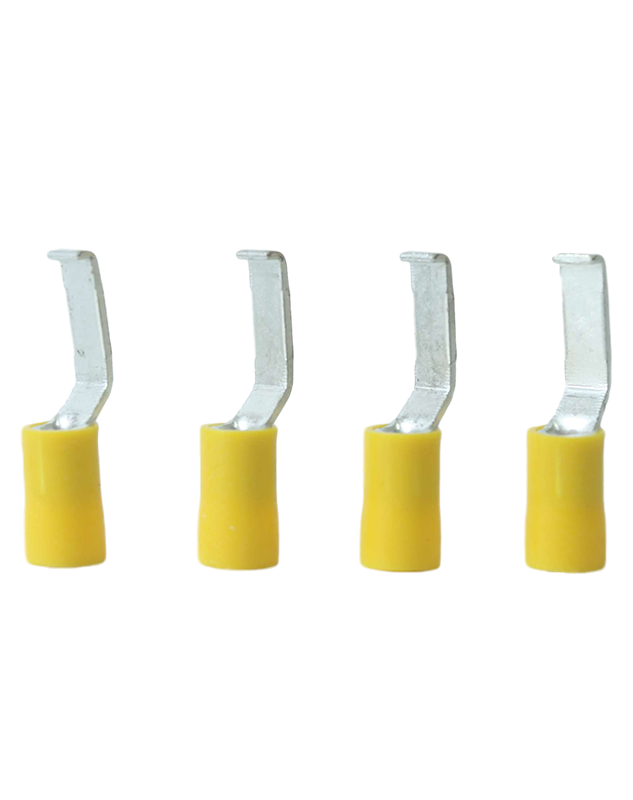

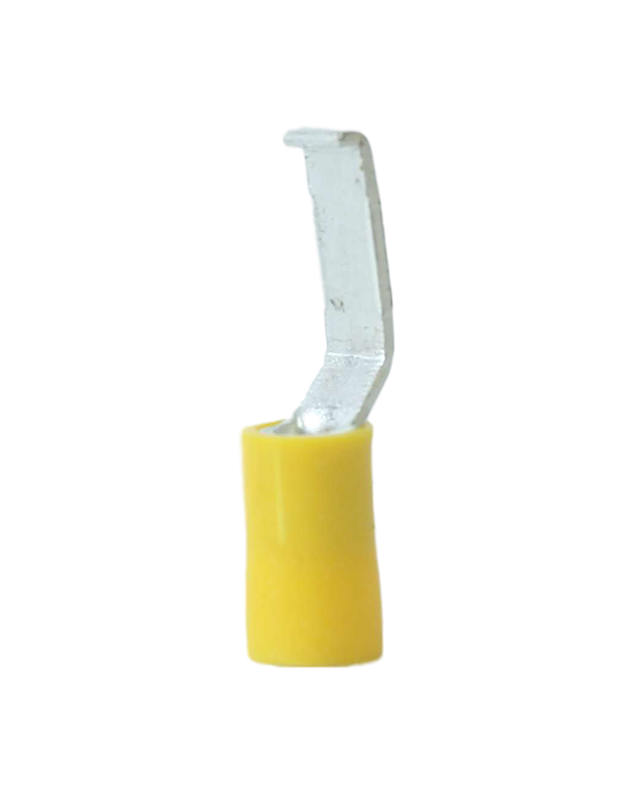

A.W.G. 12-10 KFSV630 12-10 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 5.5-3 LBV5.5-3   0.118 1.181 0.669 0.512 0.256 0.039 Yellow IZUMI 5# 1000
A.W.G. 12-10 KFSV631 12-10 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 5.5-4.6 LBV5.5-4.6   0.181 1.181 0.669 0.512 0.256 0.039 Yellow IZUMI 5# 500
Wire Range SKU# Description MFG# Stud Size  Dimensions mm Color Tool PCS/Pack
Meric B L F H D Thickness
0.5~1.5mm² KFSV610 22-16 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 1.25-3 LBV1.25-3   3.0 26.0 16.0 10.0 4.5 0.75 Red IZUMI 3# 1000
0.5~1.5mm² KFSV611 22-16 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 1.25-4.6 LBV1.25-4.6   4.6 26.0 16.0 10.0 4.5 0.75 Red IZUMI 3# 1000
1.5~2.5mm² KFSV620 16-14 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 2-3 LBV2-3   3.0 27.0 17.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
1.5~2.5mm² KFSV621 16-14 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 2-4.6 LBV2-4.6   4.6 27.0 17.0 10.0 5.0 0.8 Blue IZUMI 4# 1000
4.0~6.0mm² KFSV630 12-10 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 5.5-3 LBV5.5-3   3.0 30.0 17.0 13.0 6.5 1.0 Yellow IZUMI 5# 1000
4.0~6.0mm² KFSV631 12-10 AWG Vinyl-Insulated Single Crimp Lipped BladeTerminals 5.5-4.6 LBV5.5-4.6   4.6 30.0 17.0 13.0 6.5 1.0 Yellow) IZUMI 5# 500
