Brand |
KF |
|
Finish/Coating |
Tinned |
|
Base Materials |
Copper,PE |
|
Insulation Material |
N/A |
|
Brazed |
Seam |
|
Wire/Cable Type |
Regular Wire |
|
Color Code |
Standard |
|
MOQ |
1000Pcs/item |
|
Payment Terms |
Based on orders |
|
Delivery |
FOB/CIF/DDP |
|
Spec (American AWG) |
22-16 | 16-14 | 12-10 |
|
Spec (JIS AWG) |
1.25 | 2 | 5.5 |
|
Spec (DIN AWG) |
1 | 2.5 | 4.0-6.0 |
|
Spec (GB mm2) |
0.5-1.5 | 2.5 | 6 |
|
Max Current |
19 | 27 | 48 |
| Operating Voltage | 600V | ||
| Heat Shrinkable Temperature | 150℃ | ||
You can tick the products you need and communicate with us in the message board.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||
| USA | B | D | L | Thickness | |||||||

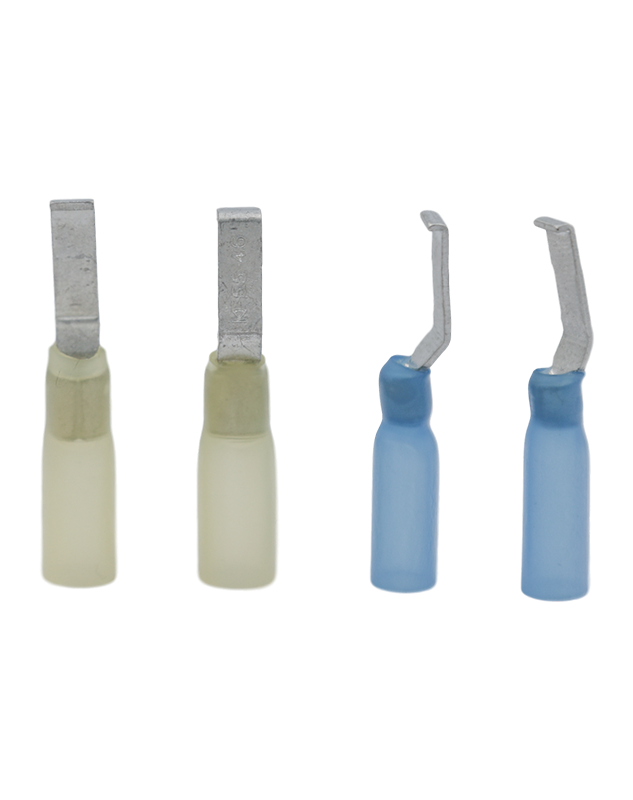

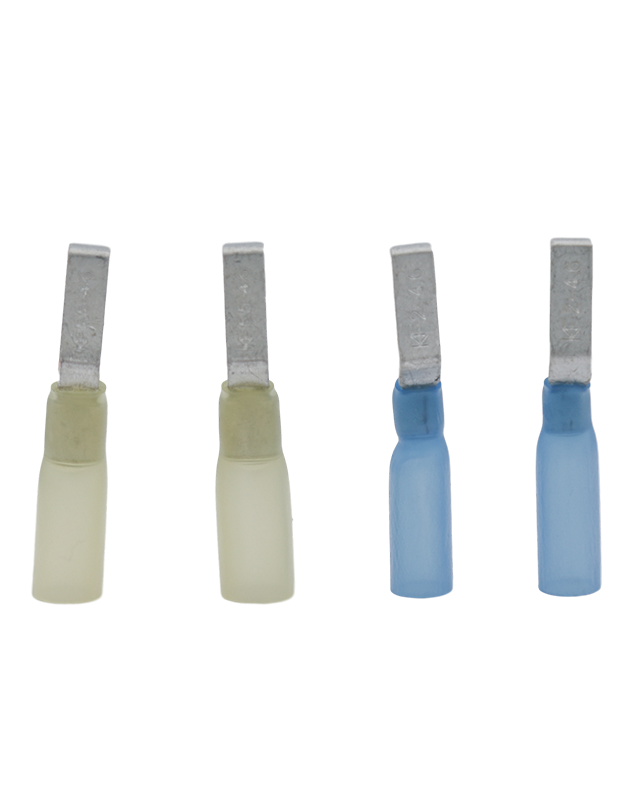

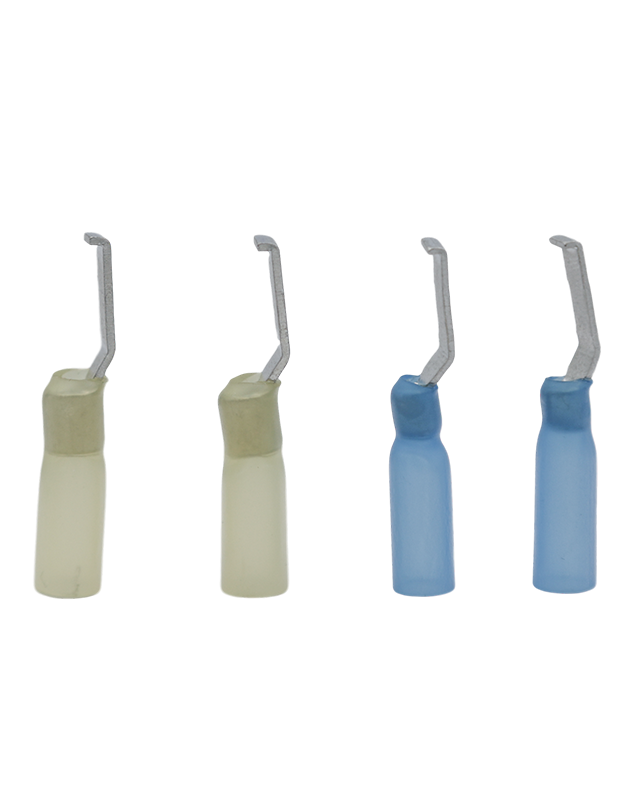

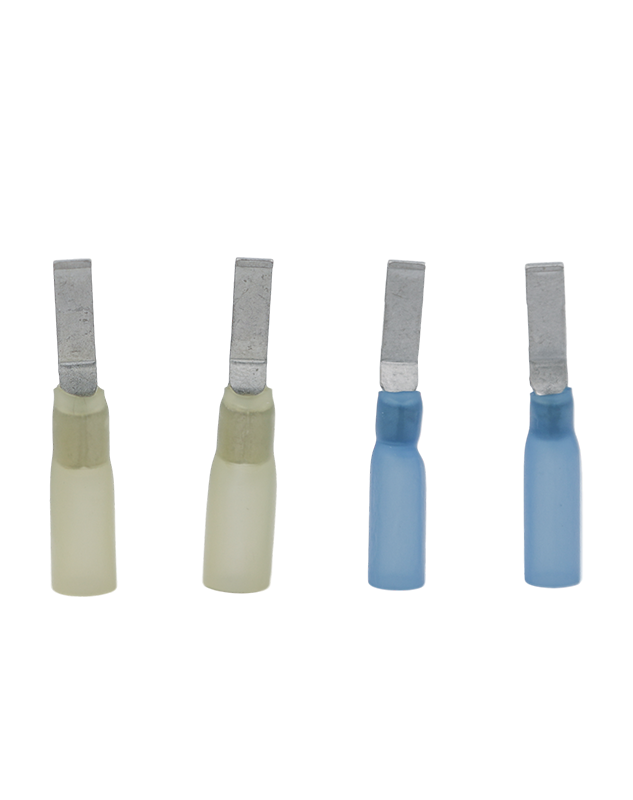

| A.W.G. 22-16 | KFSH610 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-3 | LBH1.25-3 | 4# | 0.118 | 0.197 | 1.496 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH611 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-4.6 | LBH1.25-4.6 | 0.181 | 0.197 | 1.496 | 0.030 | Red | IZUMI 3# | 1000 | |
| A.W.G. 16-14 | KFSH620 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-3 | LBH2-3 | 4# | 0.118 | 0.236 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH621 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-4.6 | LBH2-4.6 | 0.181 | 0.236 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 12-10 | KFSH630 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-3 | LBH5.5-3 | 4# | 0.118 | 0.256 | 1.575 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH631 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-4.6 | LBH5.5-4.6 | 0.181 | 0.256 | 1.575 | 0.039 | Yellow | IZUMI 5# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |||
| Meric | B | D | L | Thickness | |||||||
| 0.5~1.5mm² | KFSH610 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-3 | LBH1.25-3 | 3.0 | 3.0 | 5.0 | 38.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH611 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-4.6 | LBH1.25-4.6 | 4.6 | 4.6 | 5.0 | 38.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 1.5~2.5mm² | KFSH620 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-3 | LBH2-3 | 3.0 | 3.0 | 6.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH621 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-4.6 | LBH2-4.6 | 4.6 | 4.6 | 6.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 4.0~6.0mm² | KFSH630 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-3 | LBH5.5-3 | 3.0 | 3.0 | 6.5 | 40.0 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH631 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-4.6 | LBH5.5-4.6 | 4.6 | 4.6 | 6.5 | 40.0 | 1.00 | Yellow | IZUMI 5# | 500 |
Want to get a sample? Please fill in the form, leave your contact information and parameter information.
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions Inch | Color | Tool | PCS/Pack | |||
| USA | B | D | L | Thickness | |||||||
| A.W.G. 22-16 | KFSH610 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-3 | LBH1.25-3 | 4# | 0.118 | 0.197 | 1.496 | 0.030 | Red | IZUMI 3# | 1000 |
| A.W.G. 22-16 | KFSH611 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-4.6 | LBH1.25-4.6 | 0.181 | 0.197 | 1.496 | 0.030 | Red | IZUMI 3# | 1000 | |
| A.W.G. 16-14 | KFSH620 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-3 | LBH2-3 | 4# | 0.118 | 0.236 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 |
| A.W.G. 16-14 | KFSH621 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-4.6 | LBH2-4.6 | 0.181 | 0.236 | 1.535 | 0.031 | Blue | IZUMI 4# | 1000 | |
| A.W.G. 12-10 | KFSH630 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-3 | LBH5.5-3 | 4# | 0.118 | 0.256 | 1.575 | 0.039 | Yellow | IZUMI 5# | 1000 |
| A.W.G. 12-10 | KFSH631 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-4.6 | LBH5.5-4.6 | 0.181 | 0.256 | 1.575 | 0.039 | Yellow | IZUMI 5# | 500 | |
| Wire Range | SKU# | Description | MFG# | Stud Size | Dimensions mm | Color | Tool | PCS/Pack | |||
| Meric | B | D | L | Thickness | |||||||
| 0.5~1.5mm² | KFSH610 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-3 | LBH1.25-3 | 3.0 | 3.0 | 5.0 | 38.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 0.5~1.5mm² | KFSH611 | 22-16 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 1.25-4.6 | LBH1.25-4.6 | 4.6 | 4.6 | 5.0 | 38.0 | 0.75 | Red | IZUMI 3# | 1000 |
| 1.5~2.5mm² | KFSH620 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-3 | LBH2-3 | 3.0 | 3.0 | 6.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 1.5~2.5mm² | KFSH621 | 16-14 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 2-4.6 | LBH2-4.6 | 4.6 | 4.6 | 6.0 | 39.0 | 0.80 | Blue | IZUMI 4# | 1000 |
| 4.0~6.0mm² | KFSH630 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-3 | LBH5.5-3 | 3.0 | 3.0 | 6.5 | 40.0 | 1.00 | Yellow | IZUMI 5# | 1000 |
| 4.0~6.0mm² | KFSH631 | 12-10 AWG Heat Shrink-Insulated Single Crimp Lipped BladeTerminals 5.5-4.6 | LBH5.5-4.6 | 4.6 | 4.6 | 6.5 | 40.0 | 1.00 | Yellow | IZUMI 5# | 500 |
