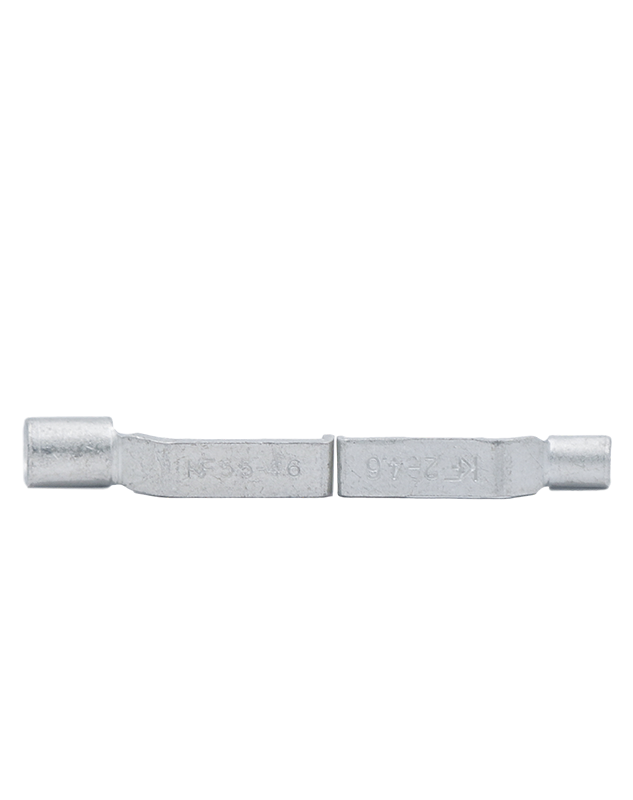

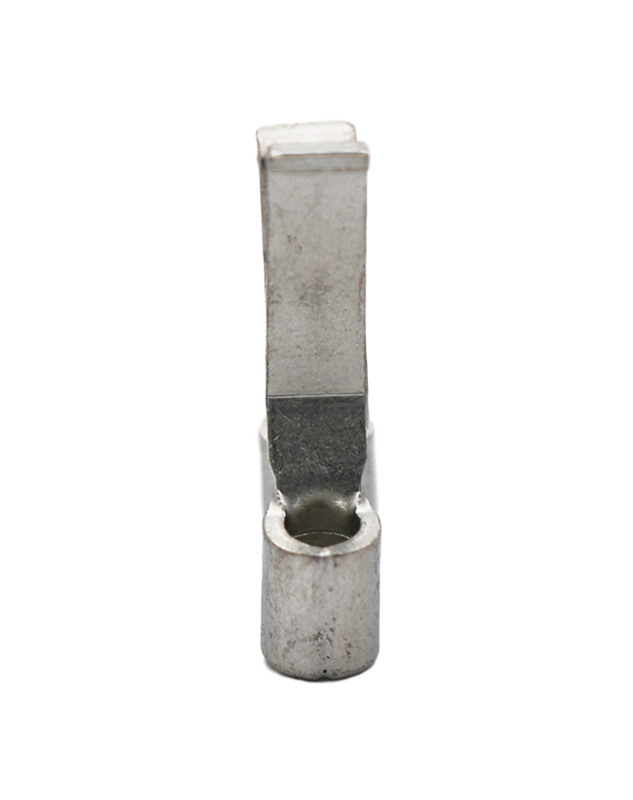

Non-insulated Lipped Blade Terminal

Non-insulated Lipped Blade Terminal

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 1,035

Product Details

Spec (American AWG) 26 -22 22-16 16-1 4 14-12 12-10 8
Spec (JIS AWG) 0.5 1.25 2 3.5 5.5  8
Spec (DIN AWG) 0.5 1 2.5   4.0-6.0 10
Spec (GB mm2) 0.1- 0.5 0.5-1.5 2.5 4 6.0  10
Max Current   19 27 37 48  62

You can tick the products you need and communicate with us in the message board.

British（in）

Meric (mm)

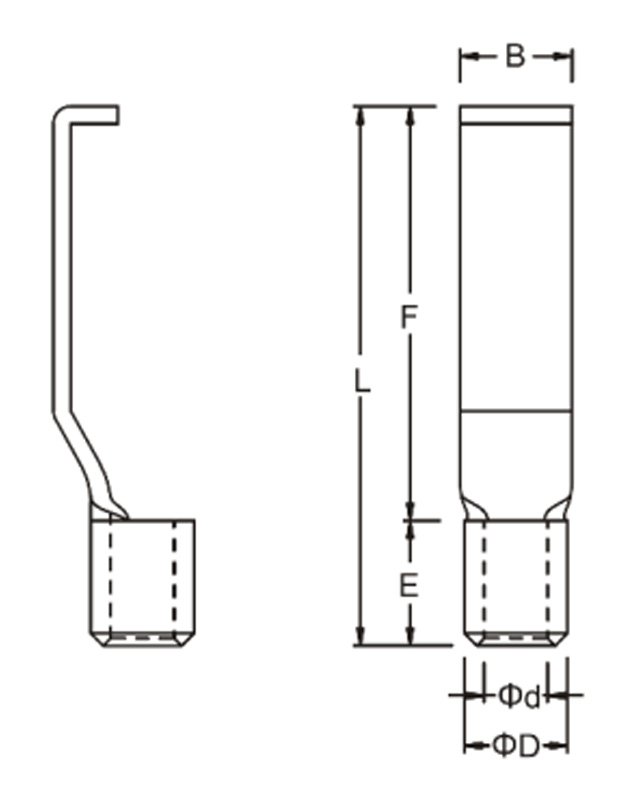

Wire Range SKU Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA B L F E D d Thickness
A.W.G. 22-16  KFO0610 22-16 Non-insulated Lipped Blade Terminal 1.25-3 LBNB1.25-3   0.118 0.827 0.630 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16  KFO0611 22-16 Non-insulated Lipped Blade Terminal 1.25-4.6 LBNB1.25-4.6   0.181 0.827 0.630 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 16-14   KFO0620 16-14 Non-insulated Lipped Blade Terminal 2-3 LBNB2-3   0.118 0.866 0.669 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14   KFO0621 16-14 Non-insulated Lipped Blade Terminal 2-4.6 LBNB2-4.6   0.181 0.866 0.669 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 12-10   KFO0630 12-10 Non-insulated Lipped Blade Terminal 5.5-3 LBNB5.5-3   0.118 0.827 0.669 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10   KFO0631 12-10 Non-insulated Lipped Blade Terminal 5.5-4.6 LBNB5.5-4.6   0.181 0.945 0.669 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
Wire Range SKU Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric B L F E D d Thickness
0.5~1.5mm² KFO0610 22-16 Non-insulated Lipped Blade Terminal 1.25-3 LBNB1.25-3   3.0 21.0 16.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0611 22-16 Non-insulated Lipped Blade Terminal 1.25-4.6 LBNB1.25-4.6   4.6 21.0 16.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0620 16-14 Non-insulated Lipped Blade Terminal 2-3 LBNB2-3   3.0 22.0 17.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0621 16-14 Non-insulated Lipped Blade Terminal 2-4.6 LBNB2-4.6   4.6 22.0 17.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
4.0~6.0mm² KFO0630 12-10 Non-insulated Lipped Blade Terminal 5.5-3 LBNB5.5-3   3.0 24.0 17.0 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0631 12-10 Non-insulated Lipped Blade Terminal 5.5-4.6 LBNB5.5-4.6   4.6 24.0 17.0 7.0 5.5 3.5 1.0 IZUMI 5N18 1000







leave A Message

Want to get a sample? Please fill in the form, leave your contact information and parameter information.

*Name: *Tel: *E-mail:
Please fill in the correct and valid email address and contact information
Message:


Wire Range SKU Description MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA B L F E D d Thickness
A.W.G. 22-16  KFO0610 22-16 Non-insulated Lipped Blade Terminal 1.25-3 LBNB1.25-3   0.118 0.827 0.630 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 22-16  KFO0611 22-16 Non-insulated Lipped Blade Terminal 1.25-4.6 LBNB1.25-4.6   0.181 0.827 0.630 0.197 0.138 0.079 0.030 IZUMI 5N18 1000
A.W.G. 16-14   KFO0620 16-14 Non-insulated Lipped Blade Terminal 2-3 LBNB2-3   0.118 0.866 0.669 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 16-14   KFO0621 16-14 Non-insulated Lipped Blade Terminal 2-4.6 LBNB2-4.6   0.181 0.866 0.669 0.197 0.157 0.098 0.031 IZUMI 5N18 1000
A.W.G. 12-10   KFO0630 12-10 Non-insulated Lipped Blade Terminal 5.5-3 LBNB5.5-3   0.118 0.827 0.669 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
A.W.G. 12-10   KFO0631 12-10 Non-insulated Lipped Blade Terminal 5.5-4.6 LBNB5.5-4.6   0.181 0.945 0.669 0.276 0.217 0.138 0.039 IZUMI 5N18 1000
Wire Range SKU Description MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric B L F E D d Thickness
0.5~1.5mm² KFO0610 22-16 Non-insulated Lipped Blade Terminal 1.25-3 LBNB1.25-3   3.0 21.0 16.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
0.5~1.5mm² KFO0611 22-16 Non-insulated Lipped Blade Terminal 1.25-4.6 LBNB1.25-4.6   4.6 21.0 16.0 5.0 3.5 2.0 0.75 IZUMI 5N18 1000
1.5~2.5mm² KFO0620 16-14 Non-insulated Lipped Blade Terminal 2-3 LBNB2-3   3.0 22.0 17.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
1.5~2.5mm² KFO0621 16-14 Non-insulated Lipped Blade Terminal 2-4.6 LBNB2-4.6   4.6 22.0 17.0 5.0 4.0 2.5 0.8 IZUMI 5N18 1000
4.0~6.0mm² KFO0630 12-10 Non-insulated Lipped Blade Terminal 5.5-3 LBNB5.5-3   3.0 24.0 17.0 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
4.0~6.0mm² KFO0631 12-10 Non-insulated Lipped Blade Terminal 5.5-4.6 LBNB5.5-4.6   4.6 24.0 17.0 7.0 5.5 3.5 1.0 IZUMI 5N18 1000
