Copper Tubular Lugs(Type TM) Suppliers

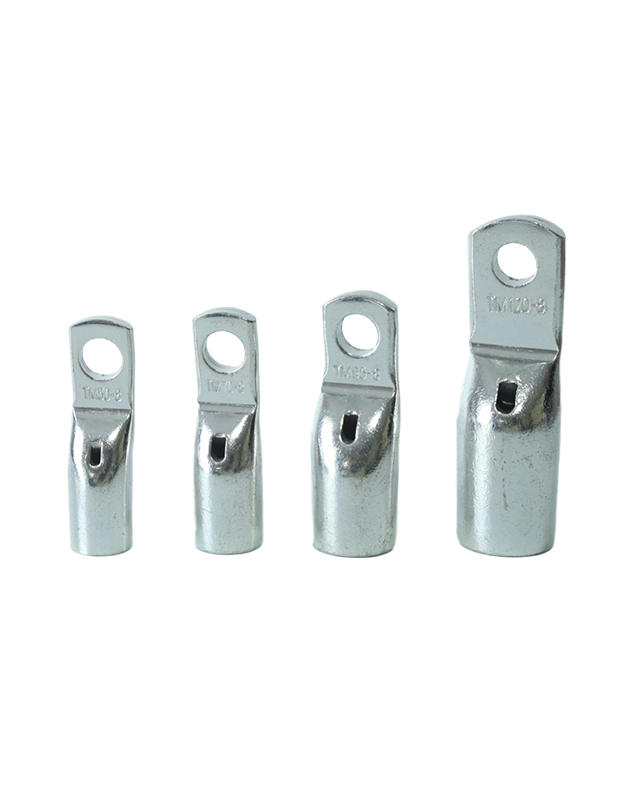

Copper Tubular Lugs(Type TM)

Copper Tubular Lugs(Type TM)

Brand

KF

Finish/Coating

Tinned

Base Materials

Copper

Insulation Material

N/A

Brazed

Seam

Wire/Cable Type

Regular Wire

Color Code

Standard

MOQ

1000Pcs/item

Payment Terms

Based on orders

Delivery

FOB/CIF/DDP





0
Views: 402

Product Details

Spec (American AWG) 8 6 4 2 1/0 2/0 3/0 4/0 250/300MCM 300/350MCM
Spec (JIS AWG) 10 16 25 35 50 70 95 120 150 185
Spec (DIN AWG)
Spec (GB mm2)
Max Current 70 95 125 170 230 265 310 360 445 505

You can tick the products you need and communicate with us in the message board.

British(in)

Meric (mm)

Wire Range SKU#

Description

MFG# Stud Size  Dimensions Inch Tool PCS/Pack
USA d2 B L d
A.W.G. 8 KFLTM10 8 AWG Copper Tubular Lugs (Type TM) TM10-5 TM10-5 #10 0.209 0.354 1.063 0.169 IZUMI 5N18 500
A.W.G. 6 KFLTM20 6 AWG Copper Tubular Lugs (Type TM) TM16-5 TM16-5 #10 0.209 0.354 1.220 0.220 OPT TP-150D 500
A.W.G. 4 KFLTM30 4 AWG Copper Tubular Lugs (Type TM) TM25-5 TM25-5 #10 0.209 0.354 1.378 0.276 OPT TP-150D 250
A.W.G. 2 KFLTM40 2 AWG Copper Tubular Lugs (Type TM) TM35-6 TM35-6 1/4" 0.252 0.453 1.594 0.331 OPT TP-150D 200
A.W.G. 1/0 KFLTM50 1/0 AWG Copper Tubular Lugs (Type TM) TM50-8 TM50-8 5/16" 0.331 0.504 1.791 0.374 OPT TP-150D 100
A.W.G. 2/0 KFLTM60 2/0 AWG Copper Tubular Lugs (Type TM) TM70-8 TM70-8 5/16" 0.331 0.504 1.929 0.441 OPT TP-150D 100
A.W.G. 3/0 KFLTM70 3/0 AWG Copper Tubular Lugs (Type TM) TM95-8 TM95-8 5/16" 0.331 0.610 2.126 0.531 OPT TP-150D 50
A.W.G. 4/0 KFLTM80 4/0 AWG Copper Tubular Lugs (Type TM) TM120-8 TM120-8 5/16" 0.331 0.748 2.677 0.614 IZUMI EP-520C 30
A.W.G. 4/0 KFLTM81 4/0 AWG Copper Tubular Lugs (Type TM) TM120-10 TM120-10 3/8" 0.413 0.748 2.677 0.614 IZUMI EP-520C 10
A.W.G. 250/300MCM KFLTM91 250/300MCM AWG Copper Tubular Lugs (Type TM) TM150-8 TM150-8 5/16" 0.331 0.748 2.953 0.657 IZUMI EP-520C 10
A.W.G. 300/350MCM KFLTMA0 300/350MCM AWG Copper Tubular Lugs (Type TM) TM185-10 TM185-10 3/8" 0.413 0.965 3.110 0.748 IZUMI EP-520C 10
Wire Range SKU#

Description

MFG# Stud Size  Dimensions mm Tool PCS/Pack
Meric d2 B L d
10mm² KFLTM10 8 AWG Copper Tubular Lugs (Type TM) TM10-5 TM10-5 5 5.3  9.0  27.0  4.3  IZUMI 5N18 500
16mm² KFLTM20 6 AWG Copper Tubular Lugs (Type TM) TM16-5 TM16-5 5 5.3  9.0  31.0  5.6  OPT TP-150D 500
25mm² KFLTM30 4 AWG Copper Tubular Lugs (Type TM) TM25-5 TM25-5 5 5.3  9.0  35.0  7.0  OPT TP-150D 250
35mm² KFLTM40 2 AWG Copper Tubular Lugs (Type TM) TM35-6 TM35-6 6 6.4  11.5  40.5  8.4  OPT TP-150D 200
50mm² KFLTM50 1/0 AWG Copper Tubular Lugs (Type TM) TM50-8 TM50-8 8 8.4  12.8  45.5  9.5  OPT TP-150D 100
70mm² KFLTM60 2/0 AWG Copper Tubular Lugs (Type TM) TM70-8 TM70-8 8 8.4  12.8  49.0  11.2  OPT TP-150D 100
95mm² KFLTM70 3/0 AWG Copper Tubular Lugs (Type TM) TM95-8 TM95-8 8 8.4  15.5  54.0  13.5  OPT TP-150D 50

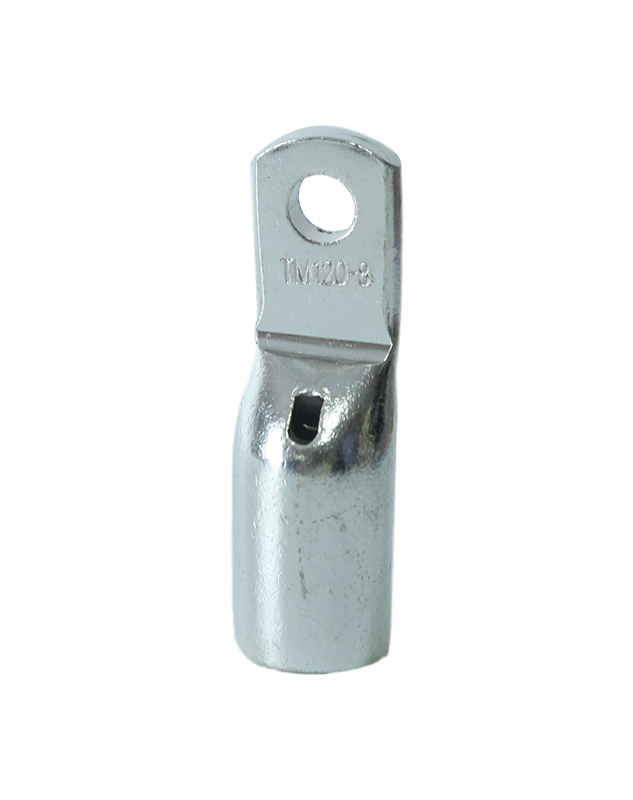

120mm² KFLTM80 4/0 AWG Copper Tubular Lugs (Type TM) TM120-8 TM120-8 8 8.4  19.0  68.0  15.6  IZUMI EP-520C 30
120mm² KFLTM81 4/0 AWG Copper Tubular Lugs (Type TM) TM120-10 TM120-10 10 10.5  19.0  68.0  15.6  IZUMI EP-520C 10
150mm² KFLTM90 250/300MCM AWG Copper Tubular Lugs (Type TM) TM150-8 TM150-8 8 8.4  19.0  75.0  16.7  IZUMI EP-520C 10
185mm² KFLTMA0 300/350MCM AWG Copper Tubular Lugs (Type TM) TM185-10 TM185-10 10 10.5  24.5  79.0  19.0  IZUMI EP-520C 10
